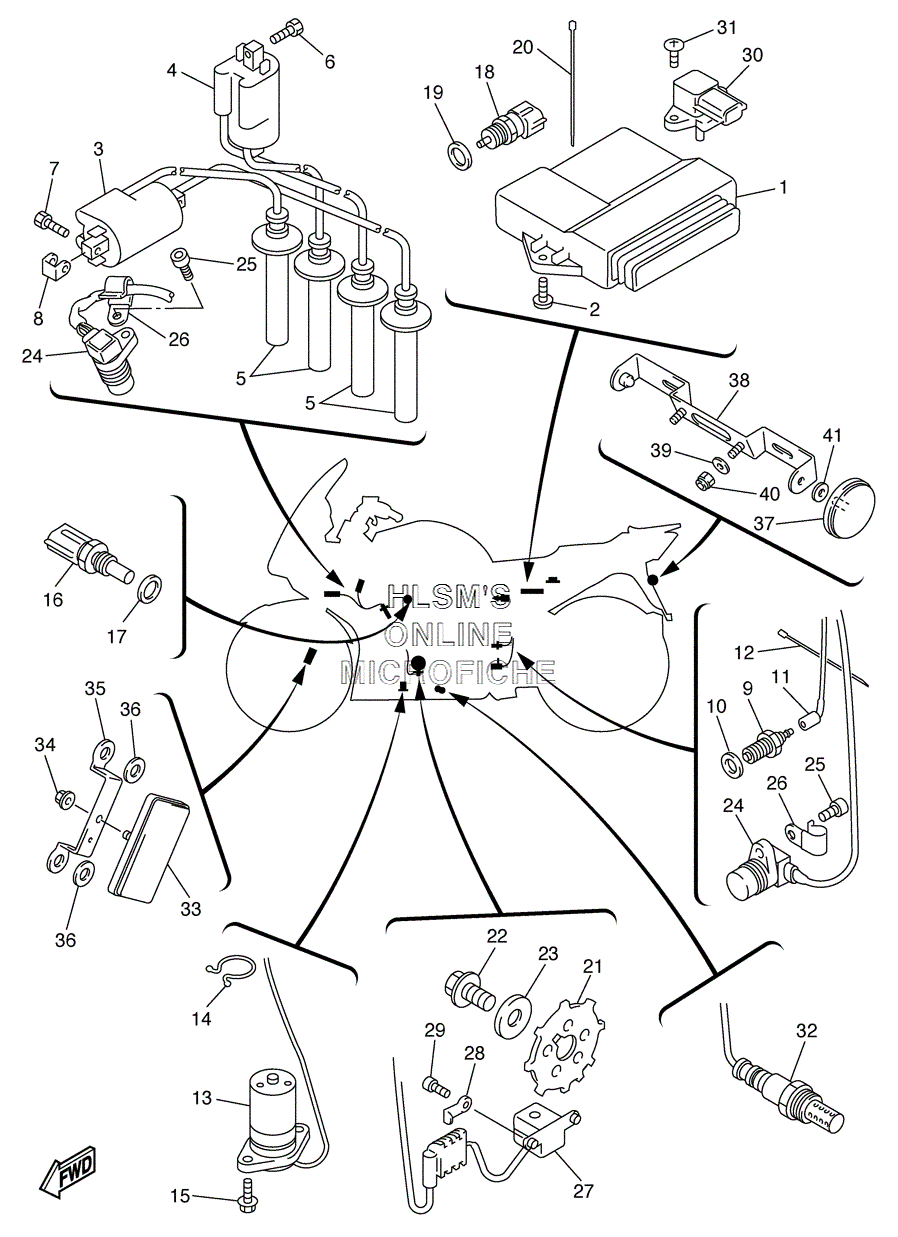

ELECTRICAL для Yamaha FJR 1300 FJR1300 - 2004 года выпуска
-
№АртикулНазвание
-
15JW-8591A-31-00 ENGINE CONTROL UNIT ASSY.ENGINE CONTROL UNIT ASSY.
-
297707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
35JW-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
45JW-82320-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
55JW-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
691317-06020-00 BOLTBOLT
-
797080-06020-00 BOLTBOLT
-
83LN-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
93GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
1090430-10148-00 GASKETGASKET
-
115JW-82541-00-00 WIRE, LEADWIRE, LEAD
-
1290465-10098-00 CLAMPCLAMP
-
135JW-85720-00-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
1490464-14058-00 CLAMPCLAMP
-
1595027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
168CC-85790-01-00 THERMOSENSOR ASSY.THERMOSENSOR ASSY.
-
1790201-12790-00 WASHER, PLATEWASHER, PLATE
-
185FL-85790-00-00 THERMOSENSOR ASSY.THERMOSENSOR ASSY.
-
1990430-12202-00 GASKETGASKET
-
2090465-10098-00 CLAMPCLAMP
-
215JW-81673-00-00 ROTORROTOR
-
2290105-10217-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-107K6-00 WASHER, PLATEWASHER, PLATE
-
245FL-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
2590110-06124-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690465-08028-00 CLAMPCLAMP
-
275JW-81670-00-00 PICK-UP ASSY.PICK-UP ASSY.
-
2890465-08033-00 CLAMPCLAMP
-
2990110-05007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
305JW-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
3197707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
325JW-8592A-00-00 SENSORSENSOR
-
3311H-85110-01-00 REFLECTOR ASSY.REFLECTOR ASSY.
-
3495707-05500-00 NUT, FLANGENUT, FLANGE
-
355BN-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
3690201-08759-00 WASHER, PLATEWASHER, PLATE
-
37449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
385JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3990201-06057-00 WASHER, PLATEWASHER, PLATE
-
4095607-06100-00 NUT, UNUT, U
-
4190201-05036-00 WASHER, PLATEWASHER, PLATE
