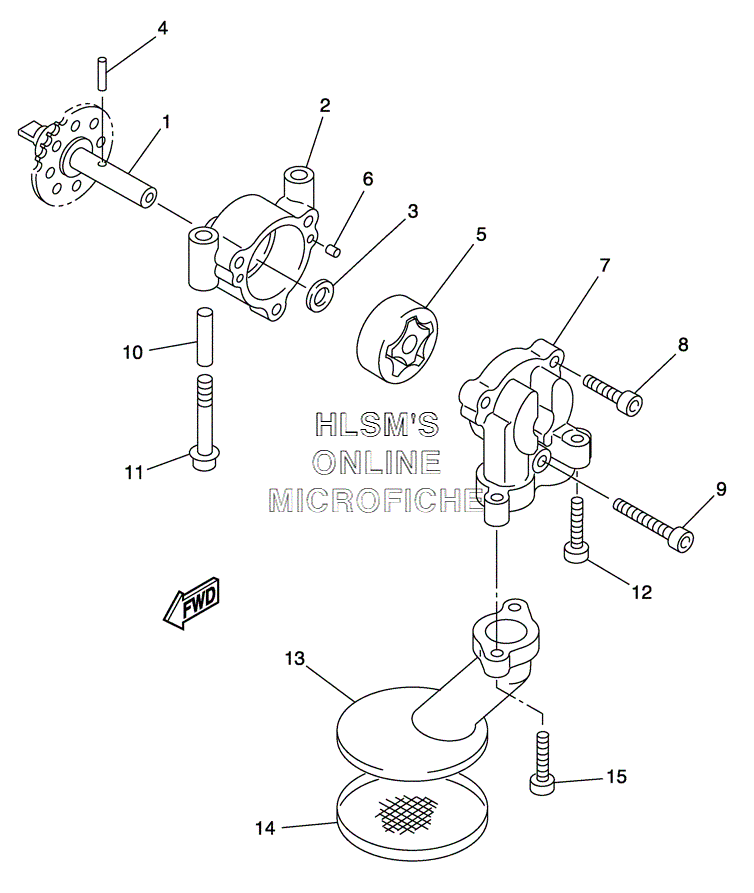

OIL PUMP для Yamaha FJR 1300 FJR1300 - 2004 года выпуска
-
№АртикулНазвание
-
15JW-13330-00-00 PUMP SHAFT ASSY.PUMP SHAFT ASSY.
-
25JW-13316-00-00 COVER, PUMPCOVER, PUMP
-
390201-113K2-00 WASHER, PLATEWASHER, PLATE
-
493603-17070-00 PIN, DOWELPIN, DOWEL
-
55JW-13310-00-00 ROTOR ASSY. 1ROTOR ASSY. 1
-
693603-09106-00 PIN, DOWELPIN, DOWEL
-
75JW-13336-00-00 HOUSING, ROTORHOUSING, ROTOR
-
891317-06025-00 BOLTBOLT
-
991317-06040-00 BOLTBOLT
-
1091808-30031-00 PIN, DOWELPIN, DOWEL
-
1190110-06026-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290110-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135JW-13412-00-00 HOUSING, STRAINERHOUSING, STRAINER
-
145JW-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1590110-06019-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
