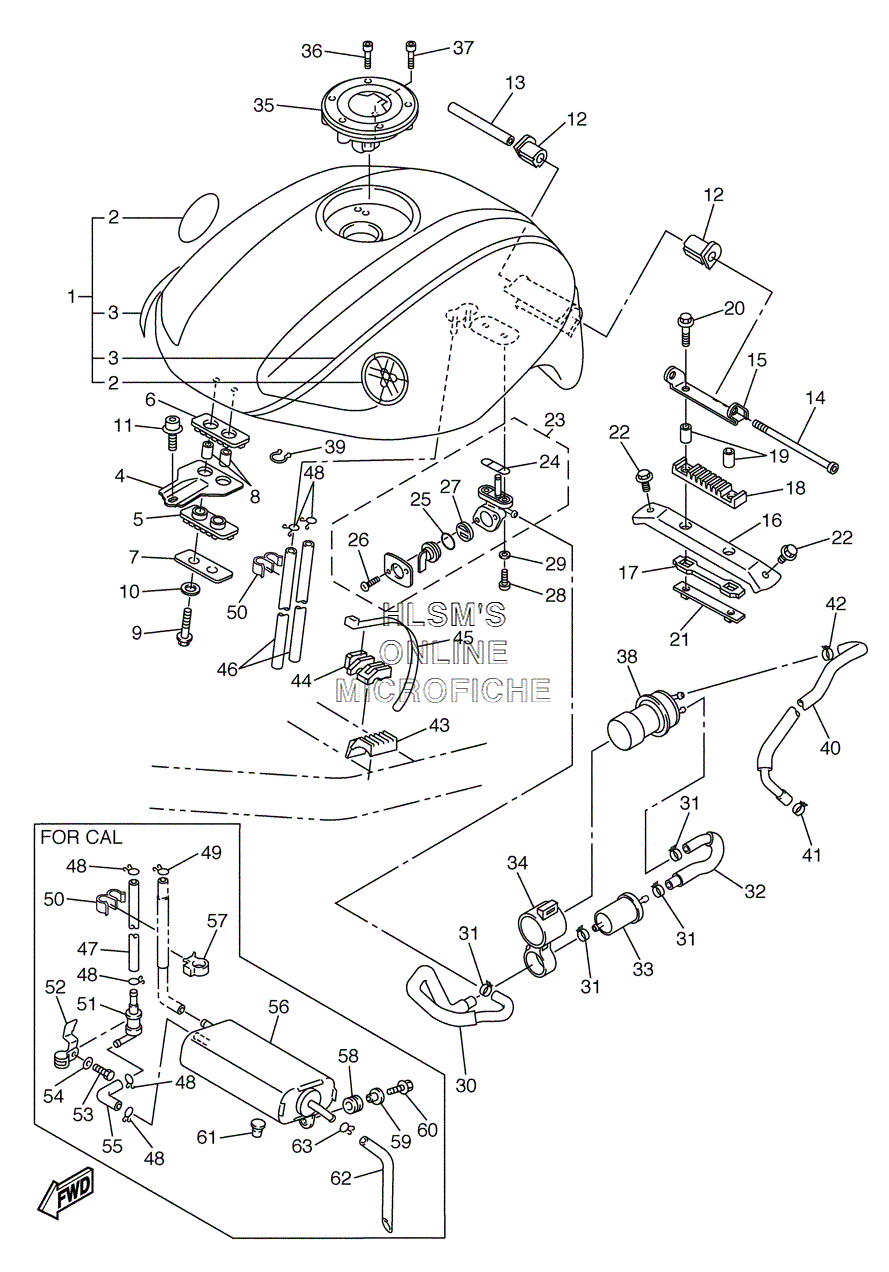

FUEL TANK для Yamaha FZ 1000 FZ1 - 2004 года выпуска
-
№АртикулНазвание
-
15LV-Y2410-10-X5 FUEL TANK COMP. (TEAM YAMAHA BLUE (DPBMC)FUEL TANK COMP. (TEAM YAMAHA BLUE (DPBMC)
-
15LV-Y2410-10-X7 FUEL TANK COMP. (BLUISH SILVER 4/RAVEN LIQUID SILVER (BS4/YB)FUEL TANK COMP. (BLUISH SILVER 4/RAVEN LIQUID SILVER (BS4/YB)
-
25VX-2411B-00-00 ...TUNING FORK MARK...TUNING FORK MARK
-
35LV-24240-20-00 ...GRAPHIC SET (FOR BLUISH SILVER 4 (BS4)...GRAPHIC SET (FOR BLUISH SILVER 4 (BS4)
-
45LV-24191-01-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
55LV-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
65LV-24183-10-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
72GH-24186-00-00 WASHER, SPECIALWASHER, SPECIAL
-
890387-06299-00 COLLARCOLLAR
-
997027-06030-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1190109-081G0-00 BOLTBOLT
-
124YR-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1390387-061W9-00 COLLARCOLLAR
-
1491317-06110-00 BOLTBOLT
-
155DM-21346-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
165LV-21346-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
175LV-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
185DM-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1990387-06299-00 COLLARCOLLAR
-
2095807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
215DM-21296-00-00 NUTNUT
-
2295827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
232VN-24500-01-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
244X8-24512-00-00 ...O-RING...O-RING
-
253AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
2698507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
273AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
2890149-06011-00 SCREWSCREW
-
2990202-05193-00 WASHER, PLATEWASHER, PLATE
-
305LV-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3190467-12124-00 CLIPCLIP
-
325LV-24312-00-00 PIPE 2PIPE 2
-
331FK-24560-10-00 FILTER ASSY.FILTER ASSY.
-
345LV-24398-00-00 BAND 1BAND 1
-
355JJ-24602-00-00 CAP ASSY.CAP ASSY.
-
3690110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3791317-05010-00 BOLTBOLT
-
384SV-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
3990464-44109-00 CLAMPCLAMP
-
405LV-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4190467-13114-00 CLIPCLIP
-
4290467-12124-00 CLIPCLIP
-
435LV-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
445LV-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
451UA-82591-00-00 BANDBAND
-
4690445-10021-00 HOSEHOSE
-
4790445-11025-00 HOSEHOSE
-
4890467-09006-00 CLIP (EXCEPT CALIF.)CLIP (EXCEPT CALIF.)
-
4890467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4990467-09006-00 CLIPCLIP
-
5090464-09M31-00 CLAMPCLAMP
-
515LV-24180-00-00 ROLL OVER VALVE ASSY.ROLL OVER VALVE ASSY.
-
525LV-2411F-00-00 PLATE, FITTINGPLATE, FITTING
-
5397007-05010-00 BOLTBOLT
-
5492907-05600-00 WASHER, PLATEWASHER, PLATE
-
555LV-24314-00-00 PIPE 4PIPE 4
-
565LV-24170-00-00 CANISTER ASSY.CANISTER ASSY.
-
5790464-15192-00 CLAMPCLAMP
-
5890480-13163-00 GROMMETGROMMET
-
5990387-062L2-00 COLLARCOLLAR
-
6095817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
6190480-08608-00 GROMMETGROMMET
-
6290445-12003-00 HOSEHOSE
-
6390467-12052-00 CLIPCLIP
