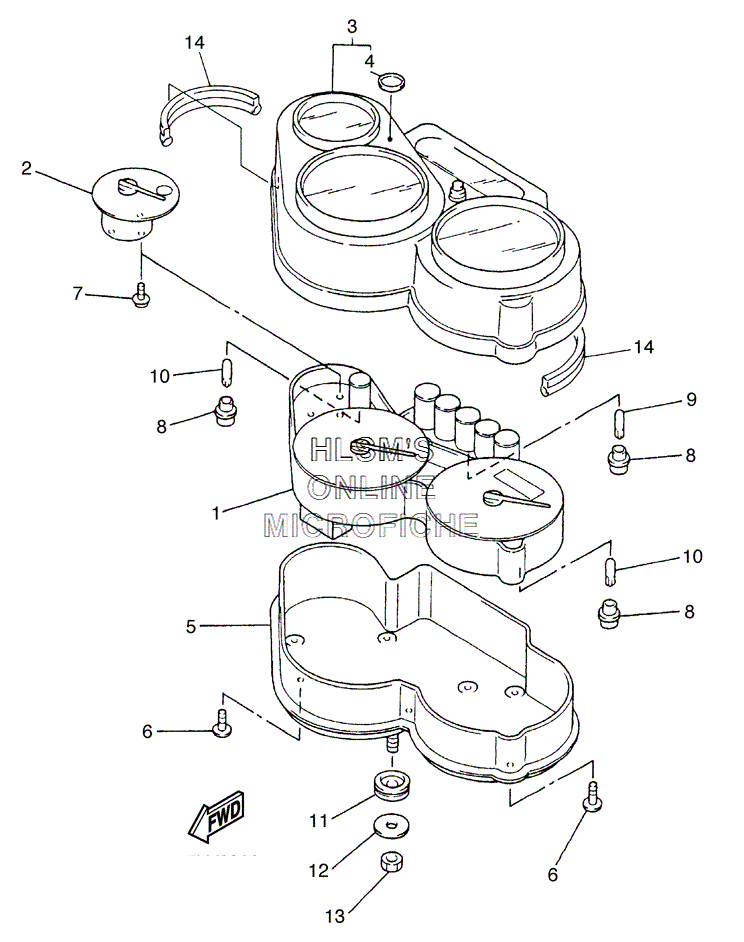

INSTRUMENT PANEL для Yamaha FZ 1000 FZ1 - 2004 года выпуска
-
№АртикулНазвание
-
15LV-83570-30-00 SPEEDOMETER ASSY. (MPH)SPEEDOMETER ASSY. (MPH)
-
25LV-85750-00-00 FUEL METER ASSY.FUEL METER ASSY.
-
35LV-8353E-00-00 CASE, METER UPPERCASE, METER UPPER
-
45DM-2341B-00-00 ...EMBLEM...EMBLEM
-
55LV-83572-00-00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
697707-40018-00 SCREW, TAPPINGSCREW, TAPPING
-
74YR-8362Y-00-00 SCREW, SPECIALSCREW, SPECIAL
-
84YR-83534-00-00 SOCKET, NEUTRALSOCKET, NEUTRAL
-
94YR-83517-00-00 BULB (12V-1.4W T5)BULB (12V-1.4W T5)
-
104YR-83517-10-00 BULB (12V-2W T5)BULB (12V-2W T5)
-
1190480-14585-00 GROMMETGROMMET
-
1290201-06380-00 WASHER, PLATEWASHER, PLATE
-
1395307-06600-00 NUTNUT
-
145LV-28346-10-00 MOLE 2MOLE 2
