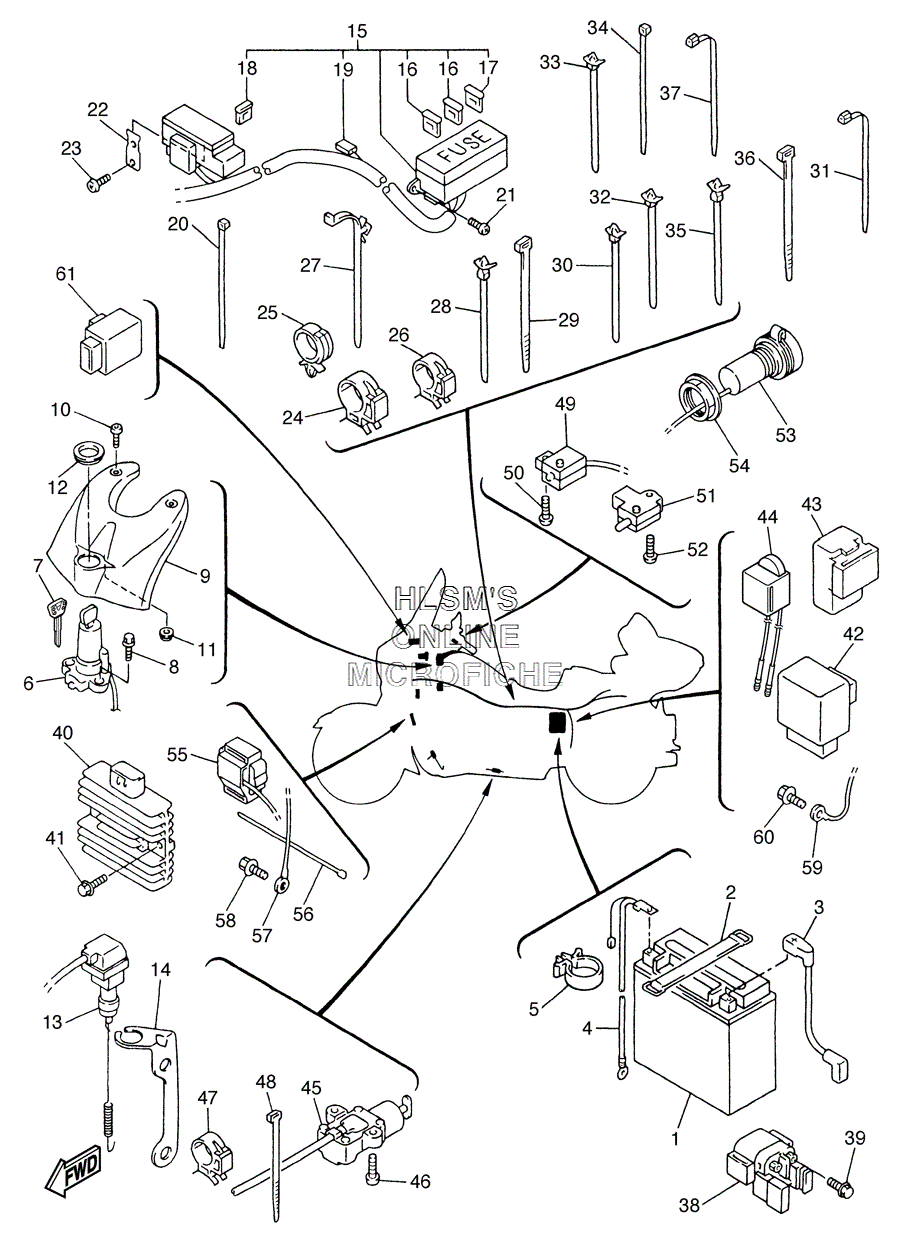

ELECTRICAL для Yamaha XVS 1300 TF ROYAL STAR VENTURE - 2004 года выпуска
-
№АртикулНазвание
-
1BTY-YXT20-LB-S0 BATTERY ASSY. (YUASA YTX20L-BS)BATTERY ASSY. (YUASA YTX20L-BS)
-
2120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34NK-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
44XY-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
590464-13133-00 CLAMPCLAMP
-
64XY-82501-01-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
74BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
890109-080G5-00 BOLTBOLT
-
94XY-8291G-00-00 COVER, SWITCHCOVER, SWITCH
-
1090149-06264-00 SCREWSCREW
-
1190480-01558-00 GROMMETGROMMET
-
124XY-82545-00-00 GROMMETGROMMET
-
134XY-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
144XY-82539-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
154XY-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
1642X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1736Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
181NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
193WP-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
2090464-16061-00 CLAMPCLAMP
-
2198907-06012-00 SCREW, BINDSCREW, BIND
-
224XY-81953-00-00 STAY, RELAYSTAY, RELAY
-
2397707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
2490464-25217-00 CLAMPCLAMP
-
2590464-07209-00 CLAMPCLAMP
-
2690464-20191-00 CLAMPCLAMP
-
2790464-20213-00 CLAMPCLAMP
-
2890464-12036-00 CLAMPCLAMP
-
291UA-82591-00-00 BANDBAND
-
3090464-12089-00 CLAMPCLAMP
-
3190464-13073-00 CLAMPCLAMP
-
3290464-10112-00 CLAMPCLAMP
-
3390464-12036-00 CLAMPCLAMP
-
3490464-16061-00 CLAMPCLAMP
-
3590464-12036-00 CLAMPCLAMP
-
361UA-82591-00-00 BANDBAND
-
3790464-13077-00 CLAMPCLAMP
-
384BH-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
3995027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
404XY-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
4195807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
425EA-81950-00-00 RELAY ASSY. (FOR SIDE STAND)RELAY ASSY. (FOR SIDE STAND)
-
431UY-81950-92-00 RELAY ASSY.RELAY ASSY.
-
445FU-82560-20-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
453LD-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4690157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4790464-10190-00 CLAMPCLAMP
-
481UA-82591-00-00 BANDBAND
-
494XY-83980-00-00 FRONT STOP SWITCH ASSY.FRONT STOP SWITCH ASSY.
-
5098907-04014-00 SCREW, BINDSCREW, BIND
-
514XY-82917-00-00 SWITCHSWITCH
-
5298907-04025-00 SCREW, BINDSCREW, BIND
-
534XY-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
544XY-82114-00-00 NUTNUT
-
554BH-82576-00-00 EMERGENCY STOP SWITCH ASSY.EMERGENCY STOP SWITCH ASSY.
-
5690464-16061-00 CLAMPCLAMP
-
574XY-8232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
5895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
594XY-82519-01-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
6095807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
614XY-81950-00-00 RELAY ASSY.RELAY ASSY.
