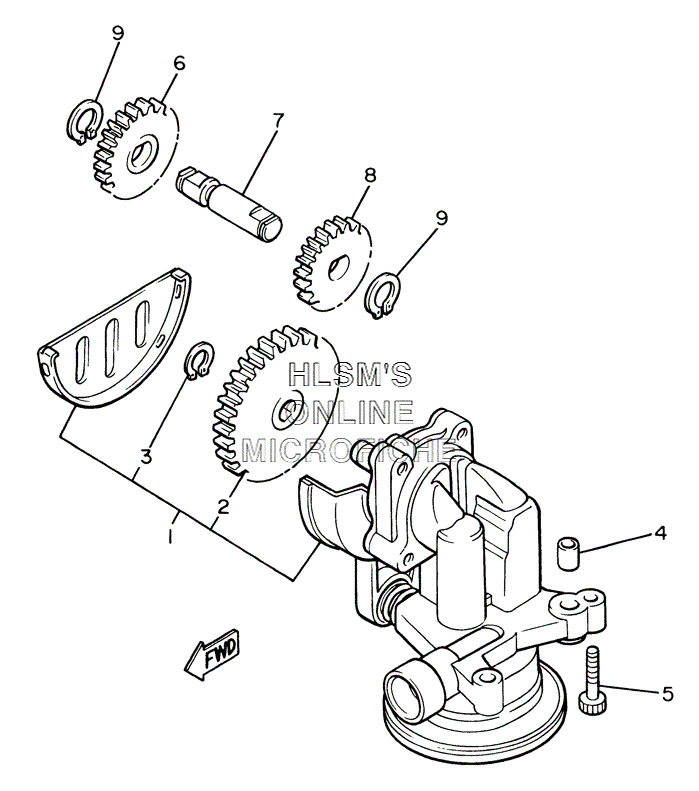

OIL PUMP для Yamaha XVS 1300 TF ROYAL STAR VENTURE - 2004 года выпуска
-
№АртикулНазвание
-
126H-13300-02-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
226H-13325-00-00 ...GEAR, PUMP DRIVEN (28T)...GEAR, PUMP DRIVEN (28T)
-
399009-11400-00 ...CIRCLIP...CIRCLIP
-
499530-10114-00 PIN, DOWELPIN, DOWEL
-
591317-06025-00 BOLTBOLT
-
626H-13351-01-00 GEAR, PUMP IDLE 1 (16T)GEAR, PUMP IDLE 1 (16T)
-
726H-13342-00-00 SHAFT, IDLE GEARSHAFT, IDLE GEAR
-
826H-13361-00-00 GEAR, PUMP IDLE 2 (15T)GEAR, PUMP IDLE 2 (15T)
-
999009-12400-00 CIRCLIPCIRCLIP
