FLASHER LIGHT для Yamaha XVS 650 AT V STAR SILVERADO - 2004 года выпуска
-
№АртикулНазвание
-

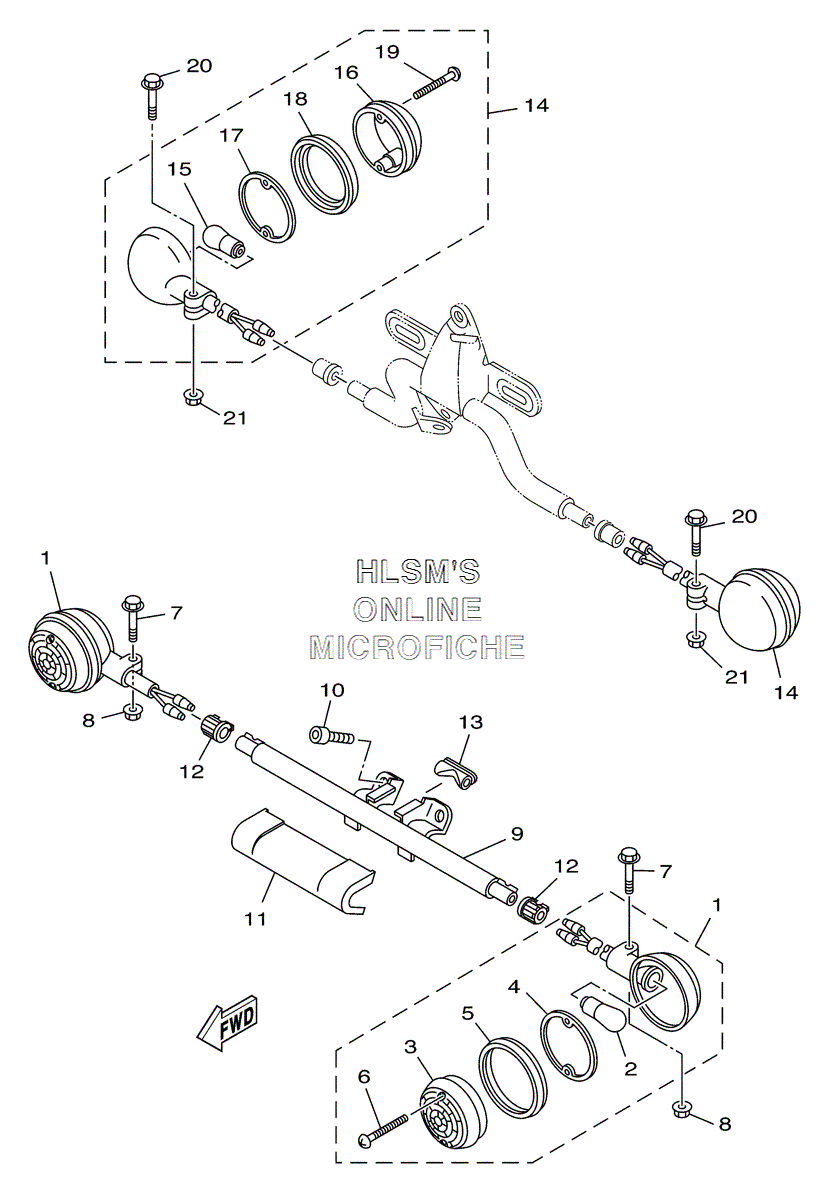

14NK-83310-00-00 FRONT FLASHER LIGHT ASSY. 1FRONT FLASHER LIGHT ASSY. 1
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
342X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
442X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
542X-83363-00-00 ...LENS, RIM...LENS, RIM
-
657M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
795024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
895704-06500-00 NUT, FLANGENUT, FLANGE
-
95BN-2317V-00-00 STAY 8STAY 8
-
1091314-08016-00 BOLTBOLT
-
114NK-23122-01-00 COVER, OUTER 1COVER, OUTER 1
-
124NK-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
134NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
1442X-83330-K0-00 REAR FLASHER LIGHT ASSY. 1REAR FLASHER LIGHT ASSY. 1
-
15256-83311-70-00 ...BULB (12V-27W)...BULB (12V-27W)
-
1642X-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1742X-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1842X-83363-00-00 ...LENS, RIM...LENS, RIM
-
1957M-83358-00-00 ...SCREW, SPECIAL...SCREW, SPECIAL
-
2095024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2195704-06500-00 NUT, FLANGENUT, FLANGE
