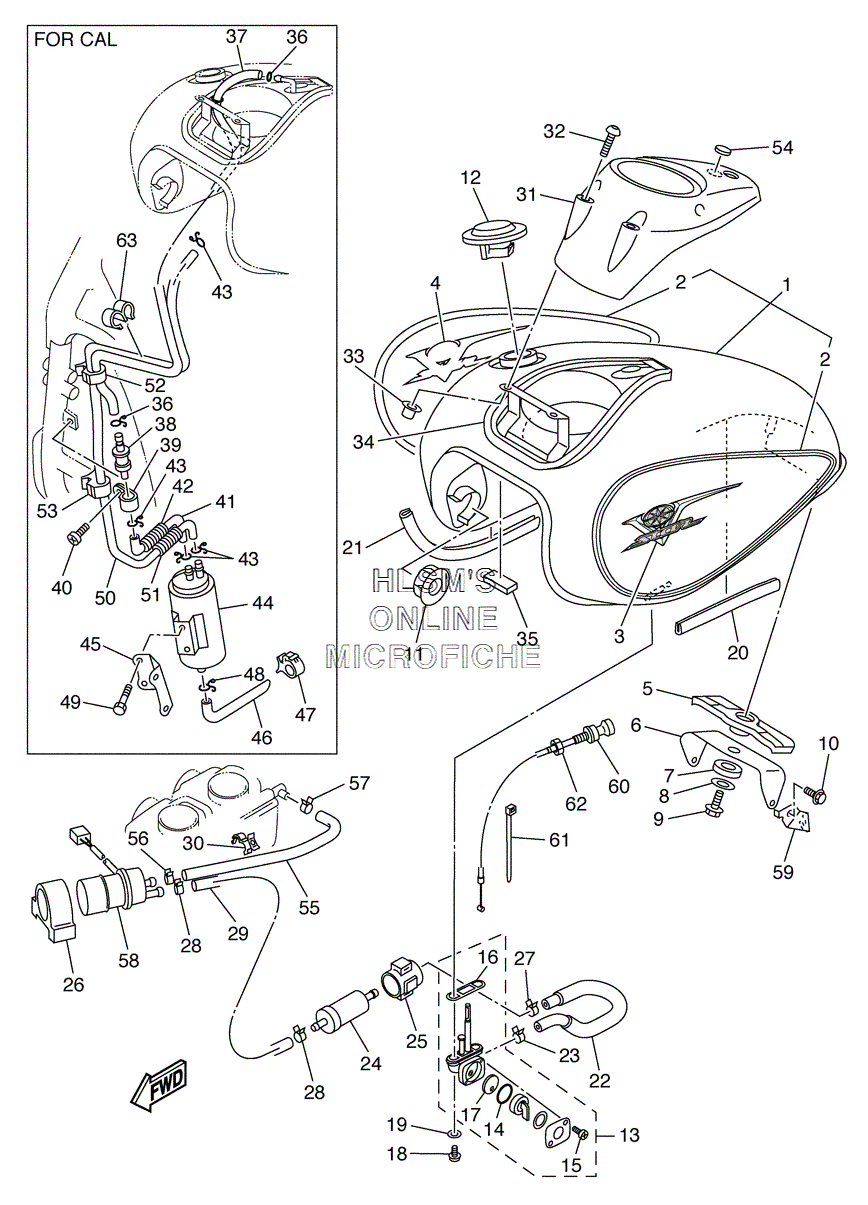

FUEL TANK для Yamaha XVS 650 AT V STAR SILVERADO - 2004 года выпуска
-
№АртикулНазвание
-
14TR-Y2410-U1-X9 FUEL TANK COMP. (DULL RED MET. D/BLACK MET. (DRMD/SMX) (EXCEPT CALIF.)FUEL TANK COMP. (DULL RED MET. D/BLACK MET. (DRMD/SMX) (EXCEPT CALIF.)
-
14TR-Y2410-U1-X6 FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1 (BWC1) (EXCEPT CALIF.)FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1 (BWC1) (EXCEPT CALIF.)
-
15SC-Y2410-10-04 FUEL TANK COMP. (DULL RED MET. D/BLACK METALLIC (DRMD/SMX) (CALIF. ONLY)FUEL TANK COMP. (DULL RED MET. D/BLACK METALLIC (DRMD/SMX) (CALIF. ONLY)
-
15SC-Y2410-10-03 FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1 (BWC1) (CALIF. ONLY)FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1 (BWC1) (CALIF. ONLY)
-
25SC-24240-00-00 ......GRAPHIC SET (FOR DULL RED MET. D (DRMD)......GRAPHIC SET (FOR DULL RED MET. D (DRMD)
-
25SC-24240-10-00 ......GRAPHIC SET (FOR BLUISH WHITE COCKTAIL 1 (BWC1)......GRAPHIC SET (FOR BLUISH WHITE COCKTAIL 1 (BWC1)
-
35FB-2416B-00-00 EMBLEM (FOR BLUISH WHITE COCKTAIL 1 (BWC1)EMBLEM (FOR BLUISH WHITE COCKTAIL 1 (BWC1)
-
35FB-2416B-10-00 EMBLEM (FOR DULL RED MET. D (DRMD)EMBLEM (FOR DULL RED MET. D (DRMD)
-
45FB-2417B-00-00 EMBLEM (FOR BLUISH WHITE COCKTAIL 1 (BWC1)EMBLEM (FOR BLUISH WHITE COCKTAIL 1 (BWC1)
-
45FB-2417B-10-00 EMBLEM (FOR DULL RED MET. D (DRMD)EMBLEM (FOR DULL RED MET. D (DRMD)
-
54TR-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
64TR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
74TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
890209-06011-00 WASHERWASHER
-
992017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1095817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
114H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
124NK-24602-10-00 CAP ASSY. (CALIF ONLY)CAP ASSY. (CALIF ONLY)
-
125BN-24602-00-00 CAP ASSY. (EXCEPT CALIF.)CAP ASSY. (EXCEPT CALIF.)
-
1321V-24500-10-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
143AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
1597801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
164X8-24512-00-00 ...O-RING...O-RING
-
173AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1890149-06011-00 SCREWSCREW
-
1990202-05193-00 WASHER, PLATEWASHER, PLATE
-
201FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
214BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
224TR-24313-00-00 PIPE 3PIPE 3
-
2390467-10038-00 CLIPCLIP
-
241FK-24560-10-00 FILTER ASSY.FILTER ASSY.
-
251FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
264EB-24398-00-00 BAND 1BAND 1
-
2790467-11032-00 CLIPCLIP
-
2890467-12053-00 CLIPCLIP
-
294TR-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3090464-15192-00 CLAMPCLAMP
-
314TR-2171A-00-00 COVER, TOPCOVER, TOP
-
3290149-05299-00 SCREWSCREW
-
3390179-05523-00 NUTNUT
-
344TR-2414G-00-00 SEALSEAL
-
353XV-21717-00-00 DAMPERDAMPER
-
3690467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
375BN-24312-01-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
-
385PX-24180-00-00 ROLL OVER VALVE ASSY. (CALIF ONLY)ROLL OVER VALVE ASSY. (CALIF ONLY)
-
3990461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4098907-05010-00 SCREW, BIND (CALIF ONLY)SCREW, BIND (CALIF ONLY)
-
415BN-24314-01-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
425BN-24327-00-00 PROTECTOR, PIPE (CALIF ONLY)PROTECTOR, PIPE (CALIF ONLY)
-
4390467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
442JU-24170-00-00 CANISTER ASSY. (CALIF ONLY)CANISTER ASSY. (CALIF ONLY)
-
455BN-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
465BN-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
4790464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4890467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4995807-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
505BN-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
515BN-24327-00-00 PROTECTOR, PIPE (CALIF ONLY)PROTECTOR, PIPE (CALIF ONLY)
-
5290464-20191-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5390464-15192-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
544TR-2413B-00-00 EMBLEMEMBLEM
-
554TR-14294-00-00 HOSEHOSE
-
5690467-12053-00 CLIPCLIP
-
5790467-12124-00 CLIPCLIP
-
585KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
594TR-2637G-00-00 HOLDER, WIREHOLDER, WIRE
-
604TR-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
611UA-82591-00-00 BANDBAND
-
621VJ-26333-00-00 NUTNUT
-
6390464-09M31-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
