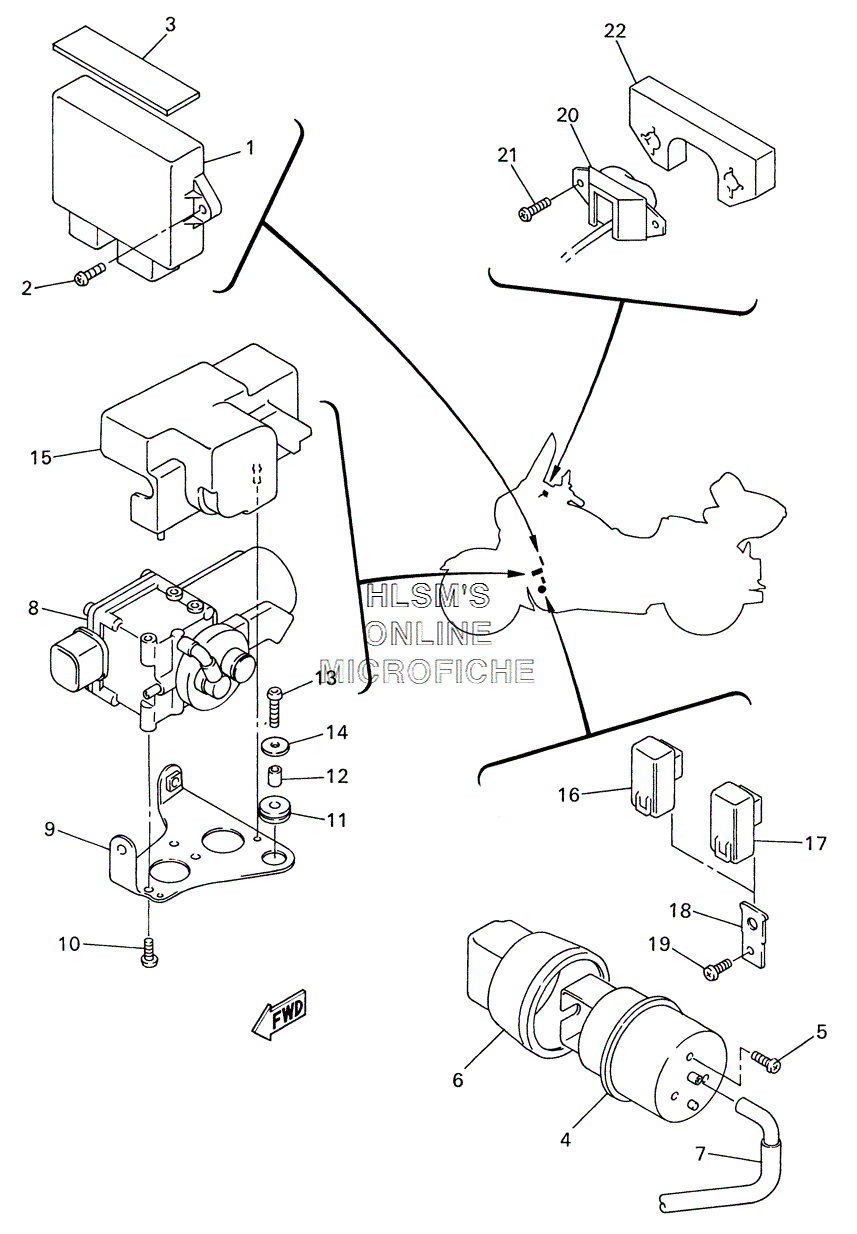

ELECTRICAL 3 для Yamaha XVZ 1300 TFM ROYAL STAR MIDNIGHT VENTURE - 2004 года выпуска
-
№АртикулНазвание
-
14XY-85830-01-00 CONTROL UNIT ASSY.CONTROL UNIT ASSY.
-
297707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
34XY-2834E-00-00 DAMPER 1DAMPER 1
-
44XY-85860-00-00 VACUUM ACTUATORVACUUM ACTUATOR
-
597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
64XY-85825-00-00 COVER, WIRECOVER, WIRE
-
74XY-2840B-00-00 PIPE 1PIPE 1
-
84XY-85861-00-00 PUMP, VACUUMPUMP, VACUUM
-
94XY-28321-00-00 STAY 1STAY 1
-
1097707-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
1190480-15235-00 GROMMETGROMMET
-
1290387-064M9-00 COLLARCOLLAR
-
1392017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490201-064H0-00 WASHER, PLATEWASHER, PLATE
-
154XY-28365-00-00 COVERCOVER
-
161UY-81950-92-00 RELAY ASSY.RELAY ASSY.
-
1729U-81950-93-00 RELAY ASSY.RELAY ASSY.
-
181VJ-81953-00-00 STAY, RELAYSTAY, RELAY
-
1997707-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
204XY-8596A-00-00 AUTO CRUISE SWITCH ASSY.AUTO CRUISE SWITCH ASSY.
-
2197707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
224XY-82176-00-00 DAMPERDAMPER
