EXHAUST для Yamaha XVZ 1300 TFM ROYAL STAR MIDNIGHT VENTURE - 2004 года выпуска

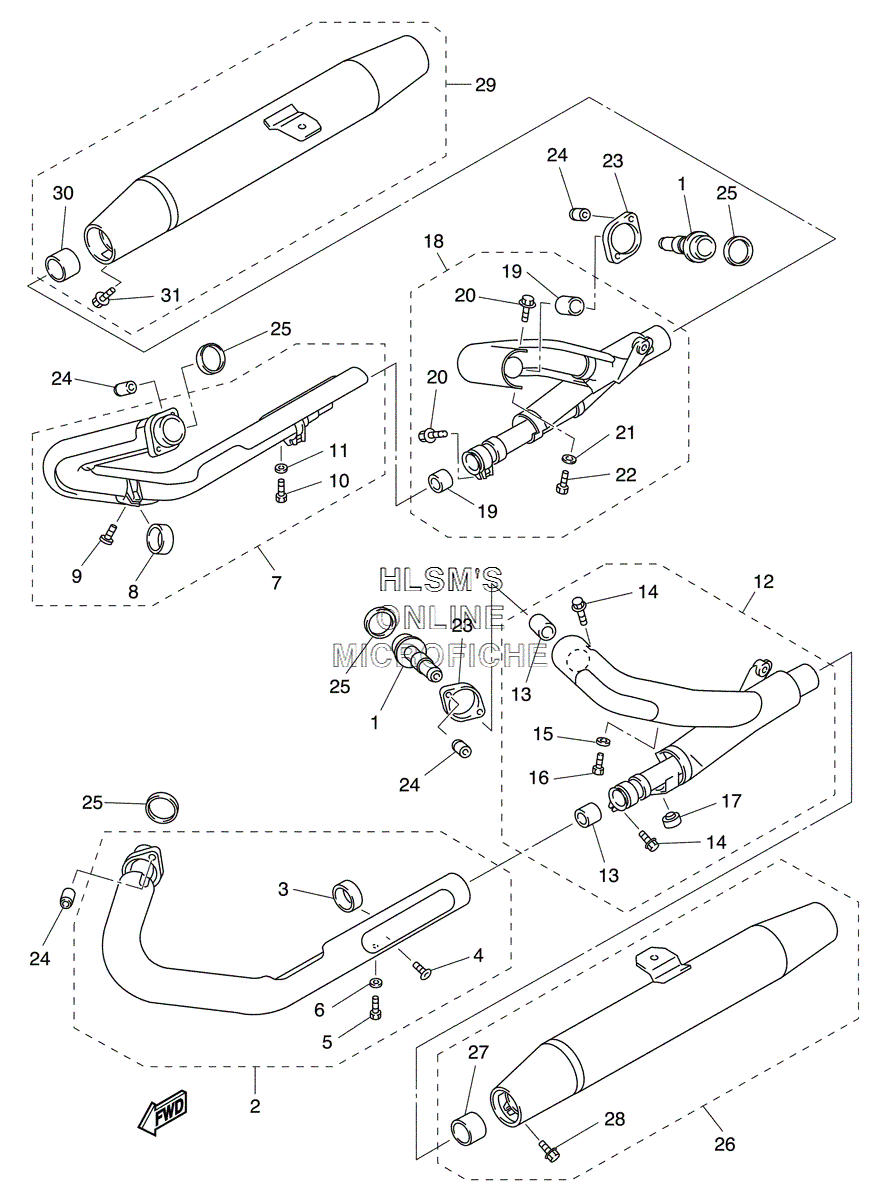

![](/wa-data/public/shop/sheme/yamaha/streetbike/98b05262-b0b3-4d43-b0b7-ea3546b3d85a.gif)
-
№АртикулНазвание
-
14YE-14614-00-00 FLANGE, EXHAUST PIPEFLANGE, EXHAUST PIPE
-
24NK-14620-01-00 EXHAUST PIPE ASSY. 2EXHAUST PIPE ASSY. 2
-
34NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
492017-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
597080-06008-00 ...BOLT...BOLT
-
692990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
74NK-14650-01-00 EXHAUST PIPE ASSY. 4EXHAUST PIPE ASSY. 4
-
84NK-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
992017-08025-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1097080-06008-00 ...BOLT...BOLT
-
1192990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
124XY-14730-00-00 CHAMBER ASSY.CHAMBER ASSY.
-
134BH-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1495024-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1592990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1697080-06008-00 ...BOLT...BOLT
-
17116-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
184XY-14730-10-00 CHAMBER ASSY.CHAMBER ASSY.
-
194BH-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
2095024-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2192990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
2297080-06008-00 ...BOLT...BOLT
-
234KG-14612-01-00 NUT, RINGNUT, RING
-
2490179-08442-00 NUTNUT
-
253GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
264XY-14710-01-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
273XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
2895814-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
294XY-14720-01-00 MUFFLER ASSY. 2MUFFLER ASSY. 2
-
303XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
3195814-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
