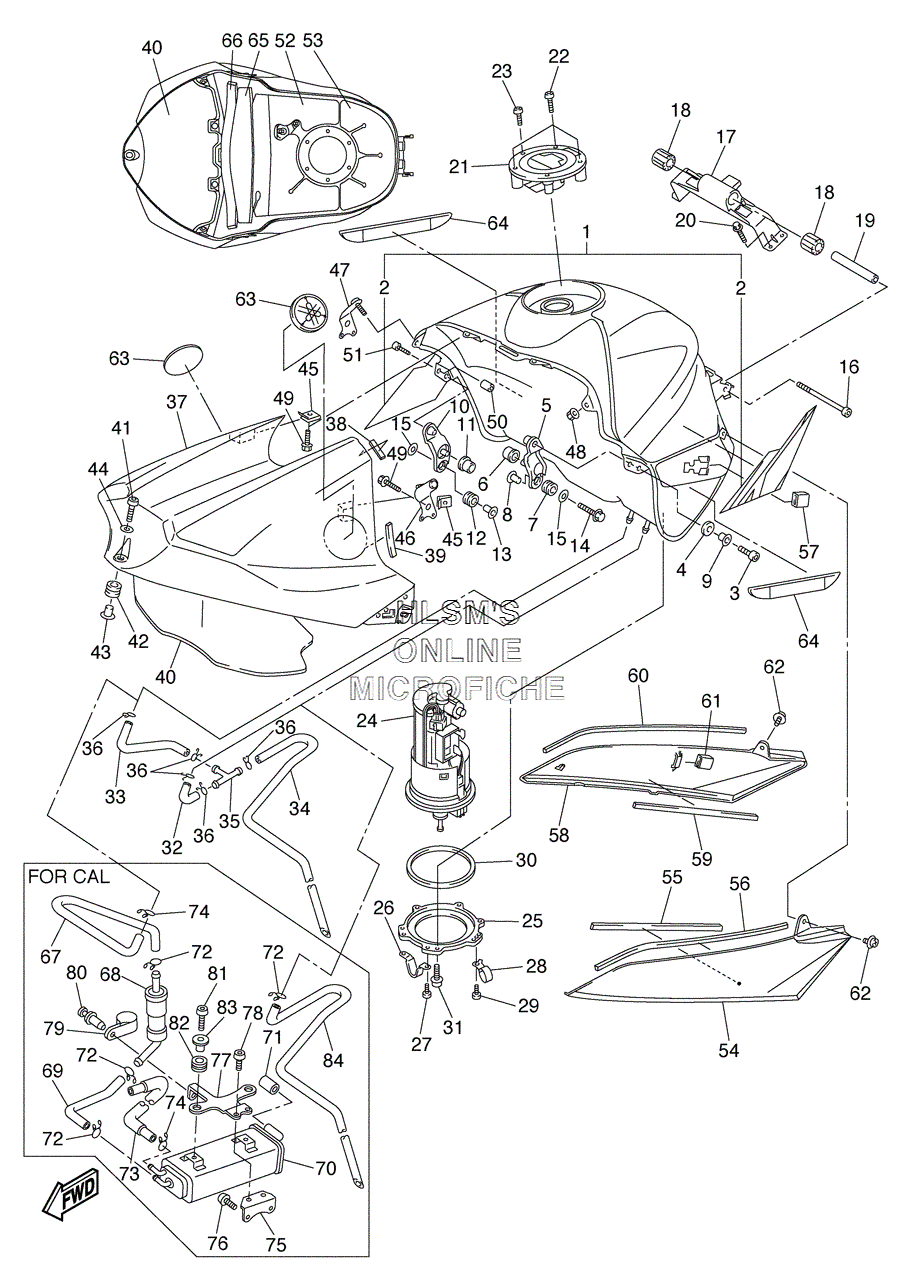

FUEL TANK для Yamaha YZF-R1 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15VY-YK241-30-P0 FUEL TANK COMP. (SHIFT RED (DEEP RED MET. K (DRMK)FUEL TANK COMP. (SHIFT RED (DEEP RED MET. K (DRMK)
-
15VY-Y2410-30-01 FUEL TANK COMP. (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)FUEL TANK COMP. (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
15VY-YK241-M0-P1 FUEL TANK COMP. (LIQUID SILVER (S3) FOR CERULEAN SILVER (BS4)FUEL TANK COMP. (LIQUID SILVER (S3) FOR CERULEAN SILVER (BS4)
-
25VY-24240-00-00 ...GRAPHIC SET (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)...GRAPHIC SET (FOR TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
391317-06016-00 BOLTBOLT
-
45VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
55VY-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
65VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
790480-10542-00 GROMMETGROMMET
-
890387-066Y6-00 COLLARCOLLAR
-
990387-061U9-00 COLLARCOLLAR
-
105VY-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
115VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1290480-10542-00 GROMMETGROMMET
-
1390387-066Y6-00 COLLARCOLLAR
-
1495027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06063-00 WASHER, PLATEWASHER, PLATE
-
1691317-06090-00 BOLTBOLT
-
175VY-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
2095027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
215JJ-24602-00-00 CAP ASSY.CAP ASSY.
-
2290110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2391317-05010-00 BOLTBOLT
-
245PW-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
255VY-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
265PW-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
2798907-05008-00 SCREW, BINDSCREW, BIND
-
2890461-10010-00 CLAMPCLAMP
-
2990154-05012-00 SCREW, BINDINGSCREW, BINDING
-
305JW-24486-00-00 O-RINGO-RING
-
3190110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
325VY-24315-00-00 PIPE 5PIPE 5
-
335VY-24316-00-00 PIPE 6PIPE 6
-
345VY-24317-00-00 PIPE 7PIPE 7
-
3590413-07007-00 WAY 3WAY 3
-
3690467-09006-00 CLIPCLIP
-
375VY-2171A-00-P0 COVER, TOP (SHIFT RED (DEEP RED MET. K (DRMK)COVER, TOP (SHIFT RED (DEEP RED MET. K (DRMK)
-
375VY-2171A-00-P1 COVER, TOP (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)COVER, TOP (TEAM YAMAHA BLUE/WHITE (DEEP PURP. BLUE MET. C (DPBMC)
-
375VY-2171A-00-P3 COVER, TOP (CERULEAN SILVER (BS4)COVER, TOP (CERULEAN SILVER (BS4)
-
385VY-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
394XV-2834E-00-00 DAMPER 1DAMPER 1
-
405VY-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
4191314-06025-00 BOLTBOLT
-
4290480-12314-00 GROMMETGROMMET
-
4390387-065J6-00 COLLARCOLLAR
-
4490201-06M30-00 WASHER, PLATEWASHER, PLATE
-
4590183-05074-00 NUT, SPRINGNUT, SPRING
-
465VY-24117-00-00 STAY, FUEL TANK 3STAY, FUEL TANK 3
-
475VY-24118-00-00 STAY, FUEL TANK 4STAY, FUEL TANK 4
-
4895707-05500-00 NUT, FLANGENUT, FLANGE
-
4990105-05002-00 BOLT, FLANGEBOLT, FLANGE
-
5090179-05523-00 NUTNUT
-
5198907-05014-00 SCREW, BINDSCREW, BIND
-
525VY-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
535VY-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
545VY-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
555PW-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
565PW-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
575PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
585VY-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
595PW-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
605PW-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
615PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
6290159-05015-00 SCREW WITH WASHERSCREW WITH WASHER
-
635PW-2413B-00-00 EMBLEMEMBLEM
-
645VY-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
655VY-2414R-00-00 DAMPER, PLATE 6DAMPER, PLATE 6
-
665VY-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
675VY-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
685RB-24180-00-00 ROLL OVER VALVE ASSY. (CALIF ONLY)ROLL OVER VALVE ASSY. (CALIF ONLY)
-
695VY-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
705VY-24170-00-00 CANISTER ASSY. (CALIF ONLY)CANISTER ASSY. (CALIF ONLY)
-
7190445-11418-00 HOSE (L18) (CALIF ONLY)HOSE (L18) (CALIF ONLY)
-
7290467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
735VY-1443J-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
7490467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
755VY-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
7692017-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
775VY-24216-00-00 STAY (CALIF ONLY)STAY (CALIF ONLY)
-
7892017-06010-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
7990461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
8090269-05001-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
-
8192017-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
8290480-13018-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
8390387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
845VY-24312-00-00 PIPE 2 (CALIF ONLY)PIPE 2 (CALIF ONLY)
