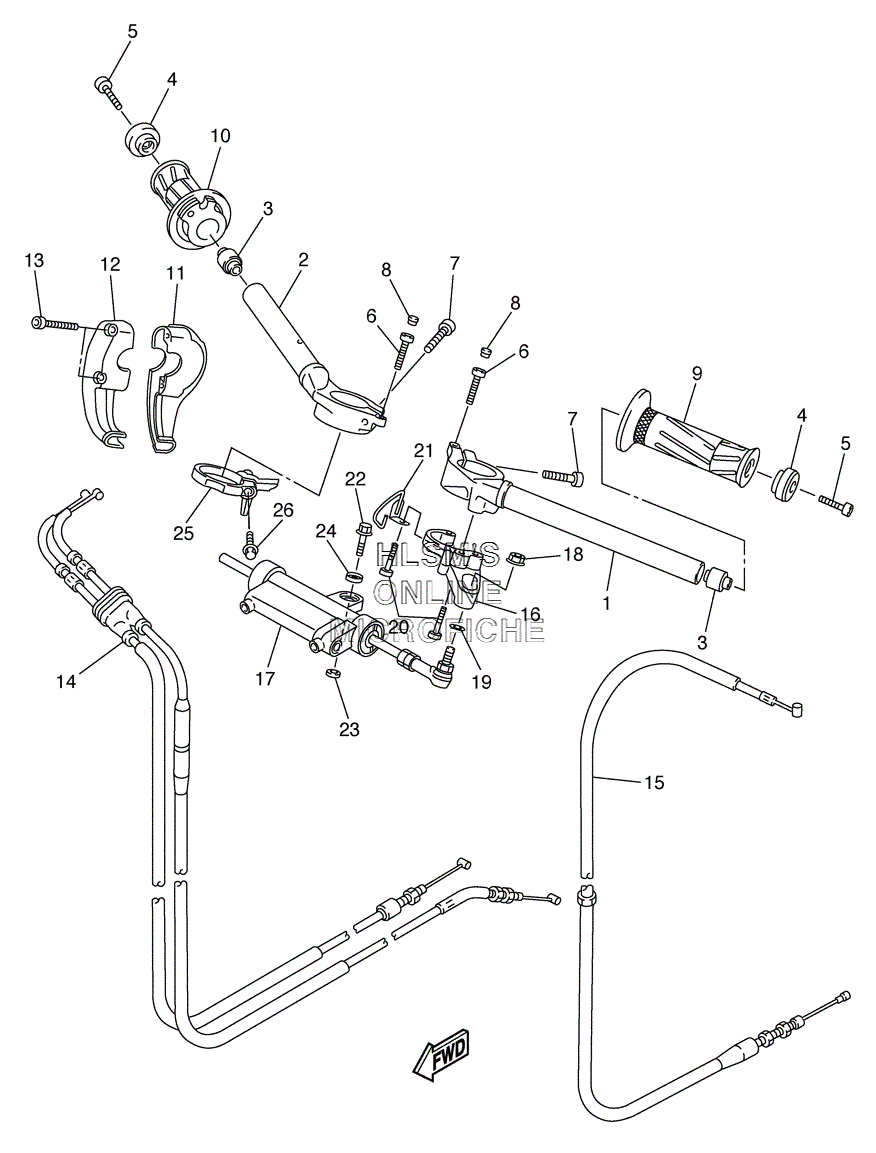

HANDLEBAR W/ CABLES для Yamaha YZF-R1 CALIFORNIA - 2004 года выпуска
-
№АртикулНазвание
-
15VY-26121-00-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
25VY-26122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
34XV-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
45PW-26246-00-00 END, GRIPEND, GRIP
-
591317-06025-00 BOLTBOLT
-
691317-06025-00 BOLTBOLT
-
791314-08030-00 BOLTBOLT
-
82H9-23469-00-00 CAP, BOLTCAP, BOLT
-
94YR-26241-01-00 GRIP (LEFT)GRIP (LEFT)
-
104YR-26240-01-00 GRIP ASSY.GRIP ASSY.
-
115VY-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
123XW-26282-01-00 CAP, GRIP LOWERCAP, GRIP LOWER
-
1390110-05018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
145VY-26302-00-00 THROTTLE CABLE ASSY.THROTTLE CABLE ASSY.
-
155VY-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
165VY-23495-00-00 STAY, DAMPERSTAY, DAMPER
-
175VY-23490-00-00 HANDLEBAR SHIMMY DAMPER ASSY.HANDLEBAR SHIMMY DAMPER ASSY.
-
1895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990201-08M09-00 WASHER, PLATEWASHER, PLATE
-
2090110-06181-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
215VY-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
2295807-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-08676-00 WASHER, PLATEWASHER, PLATE
-
245VY-26398-00-00 WASHERWASHER
-
255VY-2631E-00-00 WIRE GUIDE ASSY.., 1WIRE GUIDE ASSY.., 1
-
2690110-05014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
