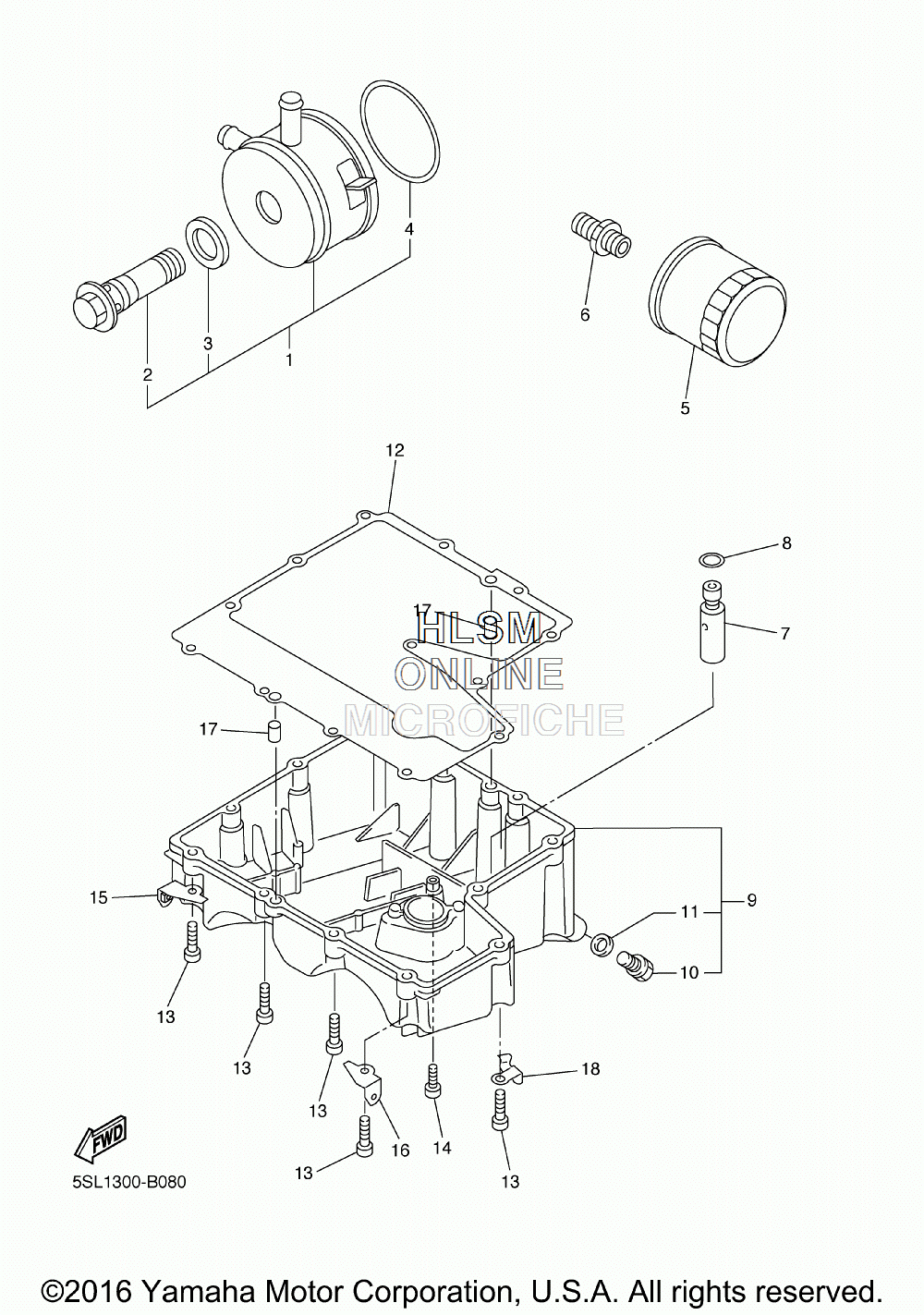

OIL CLEANER для Yamaha YZF-R6 [ YZFR6S/C] (5SLD/5SLE) - 2004 года выпуска
-
№АртикулНазвание
-
15EB-13470-00-00 OIL COOLER ASSY.OIL COOLER ASSY.
-
25EB-12822-00-00 ...BOLT, UNION...BOLT, UNION
-
35EB-13475-00-00 ...GASKET...GASKET
-
44JH-13473-00-00 ...O-RING...O-RING
-
55GH-13440-00-00 ELEMENT ASSY., OIL CLEANERELEMENT ASSY., OIL CLEANER
-
690401-20145-00 BOLT, UNIONBOLT, UNION
-
73KS-13490-00-00 RELIEF VALVE ASSY.RELIEF VALVE ASSY.
-
893210-15566-00 O-RINGO-RING
-
95SL-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
1090340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
11214-11198-01-00 ...GASKET...GASKET
-
125SL-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
1391317-06025-00 BOLTBOLT
-
1490110-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155EB-2836A-00-00 BRACKET 1BRACKET 1
-
165EB-2836E-00-00 BRACKET 2BRACKET 2
-
1799530-08012-00 PIN, DOWELPIN, DOWEL
-
1890465-10030-00 CLAMPCLAMP
