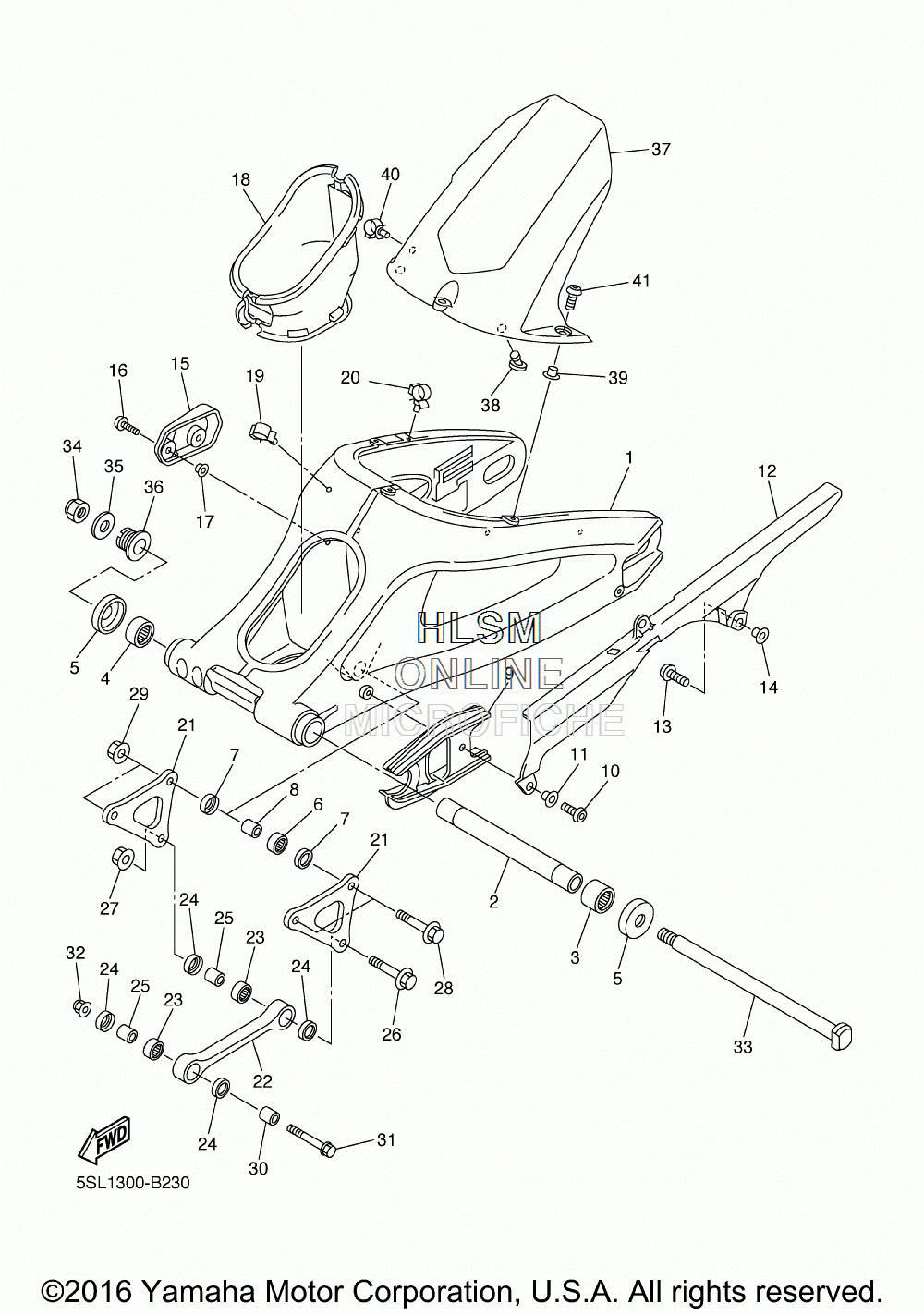

SUSPENSION - REAR ARM для Yamaha YZF-R6 [ YZFR6S/C] (5SLD/5SLE) - 2004 года выпуска
-
№АртикулНазвание
-
15SL-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
25EB-22184-00-00 BUSHBUSH
-
393317-42550-00 BEARINGBEARING
-
493315-42536-00 BEARINGBEARING
-
55JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
693315-41762-00 BEARINGBEARING
-
793109-17071-00 OIL SEALOIL SEAL
-
890387-1012A-00 COLLARCOLLAR
-
95SL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1092017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190387-062X0-00 COLLARCOLLAR
-
125SL-22311-00-00 CASE, CHAINCASE, CHAIN
-
1390110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490387-06009-00 COLLARCOLLAR
-
155SL-22381-00-00 COVER 1COVER 1
-
1690111-06038-00 BOLTBOLT
-
1790387-06681-00 COLLARCOLLAR
-
185SL-2219X-00-00 COVERCOVER
-
1990464-16012-00 CLAMPCLAMP
-
2090464-16011-00 CLAMPCLAMP
-
215SL-2217A-00-00 ARM, RELAYARM, RELAY
-
225SL-2217M-00-00 ARM 1ARM 1
-
2393315-31758-00 BEARINGBEARING
-
2493109-17071-00 OIL SEALOIL SEAL
-
2590387-1012A-00 COLLARCOLLAR
-
2690105-10017-00 BOLT, FLANGEBOLT, FLANGE
-
2795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890105-10017-00 BOLT, FLANGEBOLT, FLANGE
-
2995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090387-1013U-00 COLLARCOLLAR
-
3190105-10018-00 BOLT, FLANGEBOLT, FLANGE
-
3295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
334FN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3490185-18104-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-186M4-00 WASHER, PLATEWASHER, PLATE
-
365PW-22125-00-00 BOLTBOLT
-
375SL-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
385SL-21639-00-00 DAMPER 2DAMPER 2
-
3990387-07717-00 COLLARCOLLAR
-
4090464-16012-00 CLAMPCLAMP
-
4190111-06038-00 BOLTBOLT
