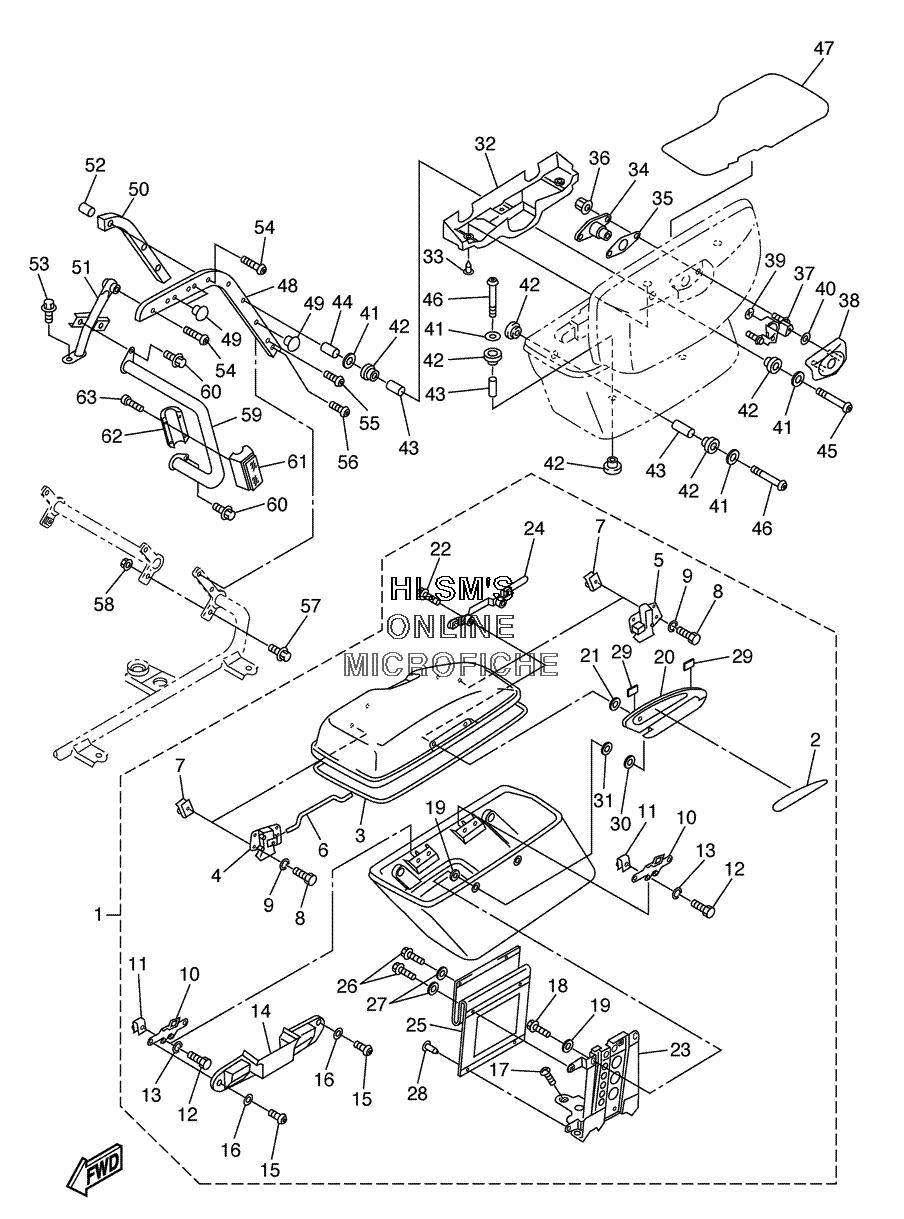

SADDLEBAG 1 для Yamaha ROYAL STAR MDNT VENTURE - 2005 года выпуска
-
№АртикулНазвание
-
14XY-Y2843-11-P0 SADDLEBAG COMP, 1 (SMX)SADDLEBAG COMP, 1 (SMX)
-
24XY-2847A-80-00 ...ORNAMENT 1...ORNAMENT 1
-
34XY-28428-00-00 ...SEAL 1...SEAL 1
-
44XY-28494-00-00 ...HOOK 3...HOOK 3
-
54XY-28495-00-00 ...HOOK 4...HOOK 4
-
64XY-2841A-00-00 ...LEVER...LEVER
-
790183-05024-00 ...NUT, SPRING...NUT, SPRING
-
897007-05012-00 ...BOLT...BOLT
-
992907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
104XY-28498-00-00 ...HOOK 2...HOOK 2
-
1190183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1297007-05016-00 ...BOLT...BOLT
-
1392907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
144XY-2843J-00-00 ...COVER 3...COVER 3
-
1592017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1692907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
1797707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1892017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1990201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
204XY-28444-10-00 ...HINGE 1...HINGE 1
-
2190202-08125-00 ...WASHER, PLATE...WASHER, PLATE
-
2292017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
234XY-28427-00-00 ...REINFORCEMENT 1...REINFORCEMENT 1
-
244XY-2847H-00-00 ...PLATE 5...PLATE 5
-
254XY-2845B-00-00 ...STOPPER, OPEN...STOPPER, OPEN
-
2692017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2792907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
2890269-05039-00 ...RIVET...RIVET
-
294XY-28499-00-00 ...PLATE, RUBBER 4...PLATE, RUBBER 4
-
3090201-08326-00 ...WASHER, PLATE...WASHER, PLATE
-
314XY-28429-00-00 ...SEAL 2...SEAL 2
-
324XY-2849K-00-00 COVER LOCK ASSY. 2COVER LOCK ASSY. 2
-
3390269-06081-00 RIVETRIVET
-
344XY-W2843-00-00 LOCK ASSY. 3LOCK ASSY. 3
-
354XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
3695607-05200-00 NUT, U FLANGENUT, U FLANGE
-
374XY-2849H-00-00 PLATE 6PLATE 6
-
384XY-2842A-00-00 COVER 5COVER 5
-
3990183-04005-00 NUT, SPRINGNUT, SPRING
-
404KJ-28371-00-00 DAMPERDAMPER
-
4190201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4290480-20447-00 GROMMETGROMMET
-
4390387-084R5-00 COLLARCOLLAR
-
4490387-0811N-00 COLLARCOLLAR
-
4592017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4692017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
474XY-2848K-00-00 SEAT 2SEAT 2
-
484XY-28473-00-00 MOUNT, SADDLEBAG 1MOUNT, SADDLEBAG 1
-
4990338-07259-00 PLUGPLUG
-
501D6-28415-00-00 DAMPER 1DAMPER 1
-
514YE-28413-02-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
5290387-0811N-00 COLLARCOLLAR
-
5395807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5490111-08021-00 BOLTBOLT
-
5592014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5692014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5795827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
5895307-08800-00 NUTNUT
-
594XY-2841K-00-00 GUARD, SADDLEBAG 1GUARD, SADDLEBAG 1
-
6095814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
614YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
624YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
6397707-30514-00 SCREW, TAPPINGSCREW, TAPPING
