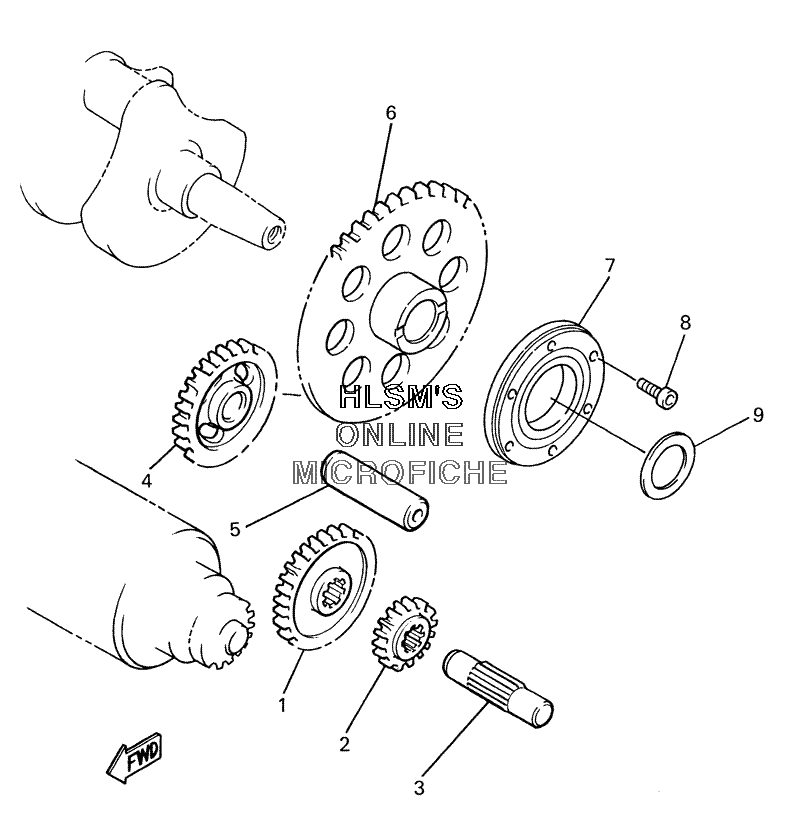

STARTER CLUTCH для Yamaha ROYAL STAR MDNT VENTURE - 2005 года выпуска
-
№АртикулНазвание
-
126H-15514-00-00 GEAR 2 (42T)GEAR 2 (42T)
-
226H-15515-00-00 GEAR 3 (13T)GEAR 3 (13T)
-
326H-15522-00-00 SHAFT 2SHAFT 2
-
426H-15512-00-00 GEAR, IDLER 1 (27T)GEAR, IDLER 1 (27T)
-
526H-15521-00-00 SHAFT 1SHAFT 1
-
64NK-15517-00-00 GEAR, IDLER 2 (76T)GEAR, IDLER 2 (76T)
-
74NK-15590-00-00 STARTER ONE-WAY ASSY.STARTER ONE-WAY ASSY.
-
890110-08193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990201-350F3-00 WASHER, PLATEWASHER, PLATE
