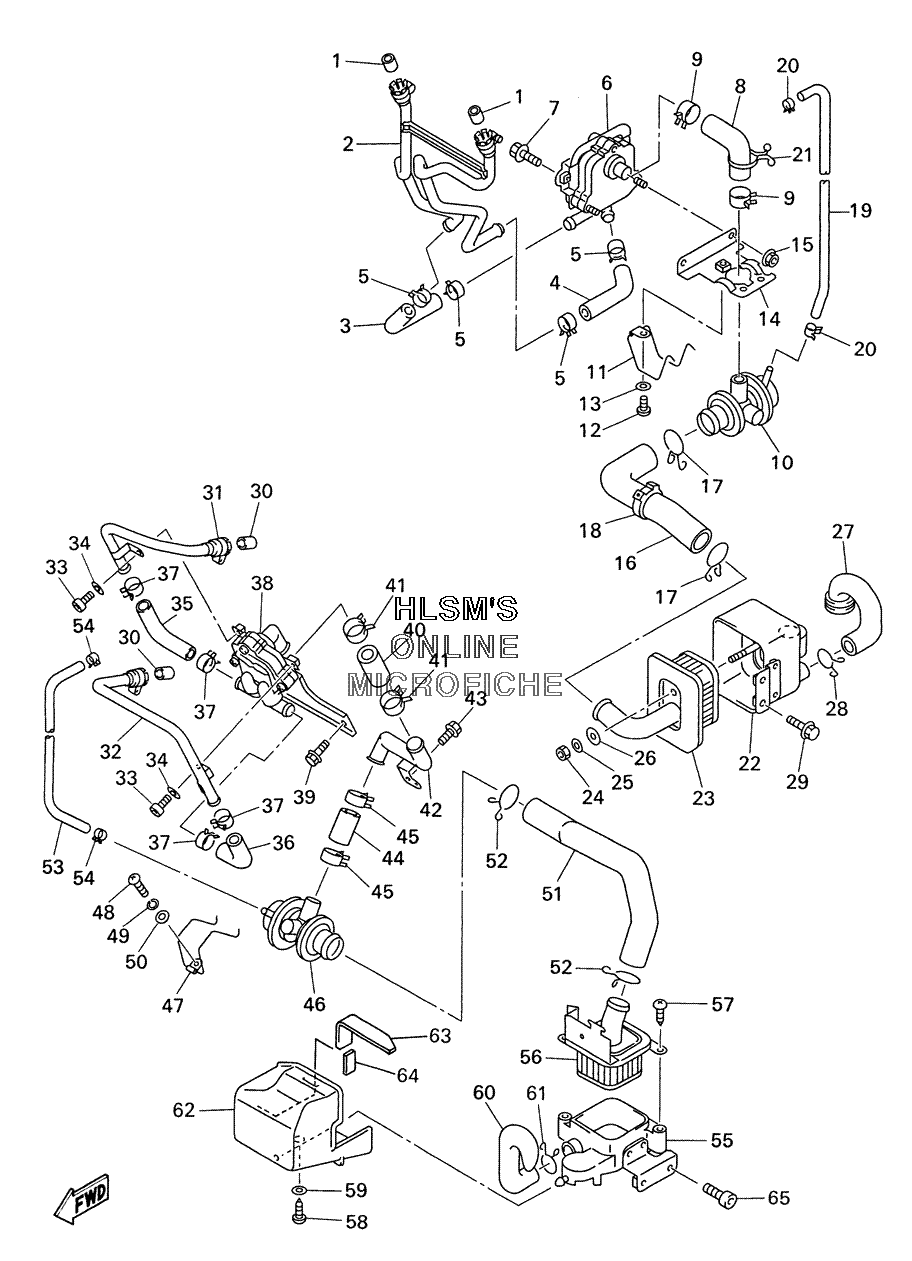

AIR INDUCTION SYSTEM для Yamaha ROYAL STAR TOUR DELUXE - 2005 года выпуска`
-
№АртикулНазвание
-
14KM-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
24XY-14872-00-00 PIPE 2PIPE 2
-
34XY-14881-00-00 HOSE, BEND 1HOSE, BEND 1
-
44XY-14881-10-00 HOSE, BEND 1HOSE, BEND 1
-
590468-08104-00 CLIPCLIP
-
64XY-14808-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
795827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
84XY-14882-10-00 HOSE, BEND 2HOSE, BEND 2
-
990467-19160-00 CLIP, SCISSORCLIP, SCISSOR
-
104XY-14840-00-00 AIR CUT VALVE ASSY.AIR CUT VALVE ASSY.
-
1190462-20188-00 CLAMPCLAMP
-
1298507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
144XY-14868-00-00 BRACKET 2BRACKET 2
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
164XY-14882-00-00 HOSE, BEND 2HOSE, BEND 2
-
1790467-24096-00 CLIP, SCISSORCLIP, SCISSOR
-
1890464-25217-00 CLAMPCLAMP
-
1990445-086K4-00 HOSEHOSE
-
2090467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
2190464-25267-00 CLAMPCLAMP
-
224XY-14857-00-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
234XY-14858-00-00 CAP, CASECAP, CASE
-
2495307-05600-00 NUTNUT
-
2592907-05200-00 WASHERWASHER
-
2690202-05057-00 WASHER, PLATEWASHER, PLATE
-
274XY-14883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2890467-20030-00 CLIPCLIP
-
2995827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
304KM-14714-01-00 GASKET, MUFFLERGASKET, MUFFLER
-
314XY-14873-00-00 PIPE 3PIPE 3
-
324XY-14874-00-00 PIPE 4PIPE 4
-
3391317-06012-00 BOLTBOLT
-
3492907-06600-00 WASHER, PLATEWASHER, PLATE
-
354XY-14886-00-00 HOSE, BEND 6HOSE, BEND 6
-
364XY-14886-10-00 HOSE, BEND 6HOSE, BEND 6
-
3790468-08104-00 CLIPCLIP
-
384XY-14808-10-00 REED VALVE ASSY.REED VALVE ASSY.
-
3995807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
404XY-14884-00-00 HOSE, BEND 4HOSE, BEND 4
-
4190467-19160-00 CLIP, SCISSORCLIP, SCISSOR
-
424XY-14875-00-00 PIPE 5PIPE 5
-
4395817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
444XY-14884-10-00 HOSE, BEND 4HOSE, BEND 4
-
4590467-19160-00 CLIP, SCISSORCLIP, SCISSOR
-
464XY-14840-10-00 AIR CUT VALVE ASSY.AIR CUT VALVE ASSY.
-
4790462-20188-00 CLAMPCLAMP
-
4898507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4992907-06100-00 WASHER, SPRINGWASHER, SPRING
-
5092907-06600-00 WASHER, PLATEWASHER, PLATE
-
514XY-14885-00-00 HOSE, BEND 5HOSE, BEND 5
-
5290467-24096-00 CLIP, SCISSORCLIP, SCISSOR
-
5390445-091J2-00 HOSEHOSE
-
5490467-08092-00 CLIP, SCISSORCLIP, SCISSOR
-
554XY-14857-10-00 CASE, AIR CLEANERCASE, AIR CLEANER
-
564XY-14858-10-00 CAP, CASECAP, CASE
-
5797707-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
5897707-50114-00 SCREW, TAPPINGSCREW, TAPPING
-
5990201-05725-00 WASHER, PLATEWASHER, PLATE
-
604XY-14887-10-00 HOSE, BEND 7HOSE, BEND 7
-
6190467-20030-00 CLIPCLIP
-
624XY-1479H-00-00 COVER, 1COVER, 1
-
634XY-14829-00-00 SEAL, DUSTSEAL, DUST
-
644XY-14855-00-00 SEAL, DUSTSEAL, DUST
-
6591317-06016-00 BOLTBOLT
