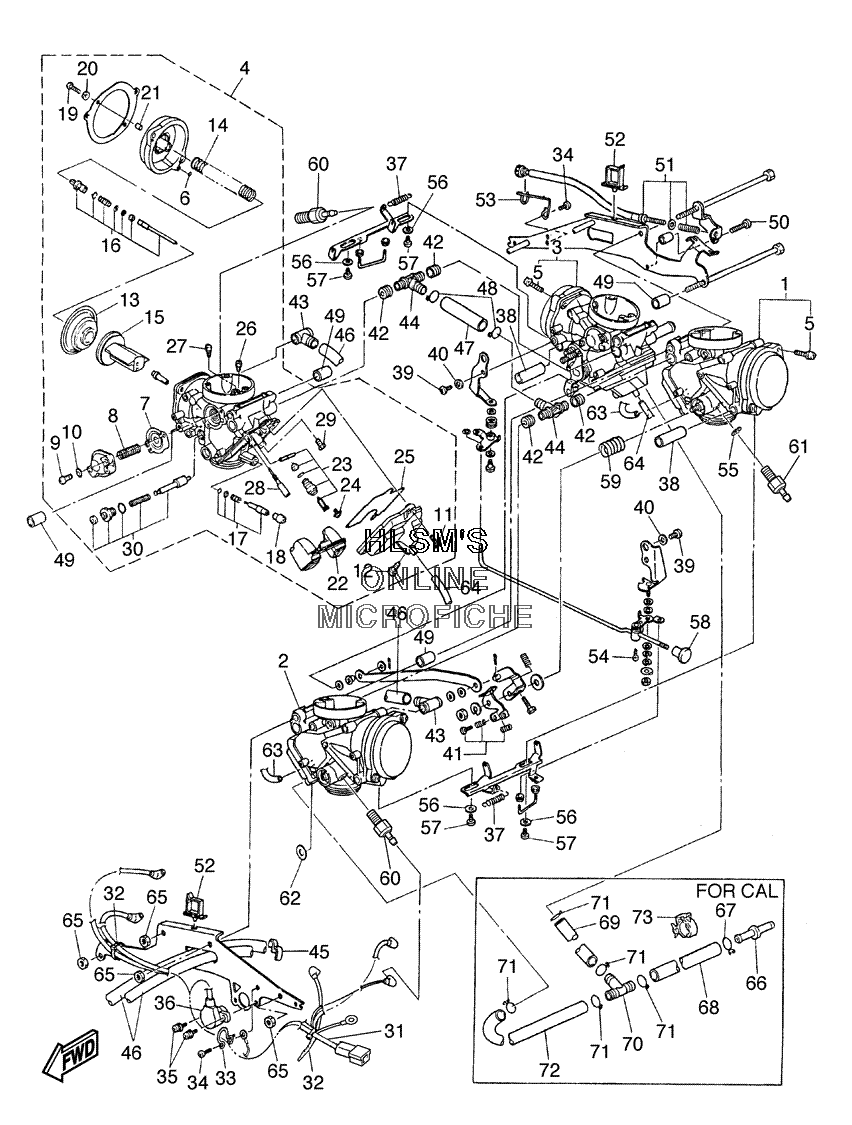

CARBURETOR для Yamaha ROYAL STAR TOUR DELUXE - 2005 года выпуска
-
№АртикулНазвание
-
14XY-14901-20-00 CARBURETOR ASSY. 1 (EXCEPT CALIF.)CARBURETOR ASSY. 1 (EXCEPT CALIF.)
-
14XY-14901-30-00 CARBURETOR ASSY. 1 (CALIF. ONLY)CARBURETOR ASSY. 1 (CALIF. ONLY)
-
24XY-14902-20-00 CARBURETOR ASSY. 2 (EXCEPT CALIF.)CARBURETOR ASSY. 2 (EXCEPT CALIF.)
-
24XY-14902-30-00 CARBURETOR ASSY. 2 (CALIF. ONLY)CARBURETOR ASSY. 2 (CALIF. ONLY)
-
34XY-14903-20-00 CARBURETOR ASSY. 3 (EXCEPT CALIF.)CARBURETOR ASSY. 3 (EXCEPT CALIF.)
-
34XY-14903-30-00 CARBURETOR ASSY. 3 (CALIF. ONLY)CARBURETOR ASSY. 3 (CALIF. ONLY)
-
44XY-14904-20-00 CARBURETOR ASSY. 4 (EXCEPT CALIF.)CARBURETOR ASSY. 4 (EXCEPT CALIF.)
-
44XY-14904-30-00 CARBURETOR ASSY. 4 (CALIF. ONLY)CARBURETOR ASSY. 4 (CALIF. ONLY)
-
54KM-14216-00-00 ...SCREW (CARB. #1, 2, 3)...SCREW (CARB. #1, 2, 3)
-
6354-14147-00-00 ...O-RING...O-RING
-
75AP-14940-00-00 ...DIAPHRAGM ASSY....DIAPHRAGM ASSY.
-
84XY-14589-00-00 ...SPRING...SPRING
-
998507-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1191317-05012-00 ...BOLT...BOLT
-
124KP-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
135DM-14940-00-00 ...DIAPHRAGM ASSY....DIAPHRAGM ASSY.
-
144XY-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
155DM-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
164XY-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
174XY-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
184XY-14118-00-00 ...CAP...CAP
-
1998507-05018-00 ...SCREW, PAN HEAD (CARB. #4)...SCREW, PAN HEAD (CARB. #4)
-
2092907-05100-00 ...WASHER, SPRING (CARB. #4)...WASHER, SPRING (CARB. #4)
-
214KM-14194-00-00 ...RING (CARB. #4)...RING (CARB. #4)
-
224SV-14985-00-00 ...FLOAT...FLOAT
-
234KM-14107-15-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
241FN-14565-00-00 ...SCREW...SCREW
-
254XV-14562-00-00 ...O-RING...O-RING
-
261HX-14231-17-00 ...JET, MAIN (#85)...JET, MAIN (#85)
-
271HX-14231-28-00 ...JET, MAIN (#140)...JET, MAIN (#140)
-
284KM-14142-15-00 ...JET, PILOT (#15)...JET, PILOT (#15)
-
293G2-14231-24-00 ...JET, MAIN (#120) (CARB. #4)...JET, MAIN (#120) (CARB. #4)
-
293G2-1423A-74-00 ...JET, MAIN (#117.5) (CARB. #3)...JET, MAIN (#117.5) (CARB. #3)
-
293G2-1423A-75-00 ...JET, MAIN (#122.5) (CARB. #1, 2)...JET, MAIN (#122.5) (CARB. #1, 2)
-
304SV-1410A-00-00 ...STARTER SET...STARTER SET
-
311D6-81517-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
3235H-14139-00-00 CLIP, PIPECLIP, PIPE
-
334XY-14159-00-00 CLIPCLIP
-
3498507-05006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
354WM-14565-00-00 SCREWSCREW
-
364HM-85885-20-00 THROTTLE POSITION SENSOR ASSY.THROTTLE POSITION SENSOR ASSY.
-
375DM-14935-00-00 SPRINGSPRING
-
384XY-14148-00-00 PIPEPIPE
-
3998507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4092907-05100-00 WASHER, SPRINGWASHER, SPRING
-
413EN-1490K-00-00 STOP SCREW SETSTOP SCREW SET
-
423EN-14997-00-00 SEALSEAL
-
435DM-14396-10-00 PIPEPIPE
-
444XY-14251-00-00 NIPPLENIPPLE
-
4590464-09M31-00 CLAMPCLAMP
-
464XY-14349-00-00 PIPEPIPE
-
474XY-14349-10-00 PIPEPIPE
-
484NK-14137-00-00 CLIPCLIP
-
494XY-14148-10-00 PIPEPIPE
-
5098507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
514XY-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
524XY-14137-00-00 CLIPCLIP
-
534XY-14139-00-00 CLIP, PIPECLIP, PIPE
-
544XY-14565-00-00 SCREWSCREW
-
5590201-08016-00 WASHER, PLATEWASHER, PLATE
-
564NK-14327-00-00 PACKINGPACKING
-
574XY-24453-10-00 SCREWSCREW
-
584XY-14261-00-00 HOLDERHOLDER
-
594XY-14286-00-00 SPRINGSPRING
-
604TR-83790-00-00 HEATER ASSY. (15W)HEATER ASSY. (15W)
-
613BT-83790-00-00 HEATER ASSY. (30W)HEATER ASSY. (30W)
-
624KG-14285-00-00 WASHERWASHER
-
633JD-14197-00-00 PIPEPIPE
-
644FU-14197-00-00 PIPEPIPE
-
6595307-06600-00 NUTNUT
-
664XY-14568-00-00 JOINTJOINT
-
6790467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
684XY-14349-20-00 PIPEPIPE
-
6951L-14987-00-00 HOSEHOSE
-
703H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
713UH-14937-00-00 CLIPCLIP
-
723UH-14294-00-00 HOSEHOSE
-
7390464-15192-00 CLAMPCLAMP
