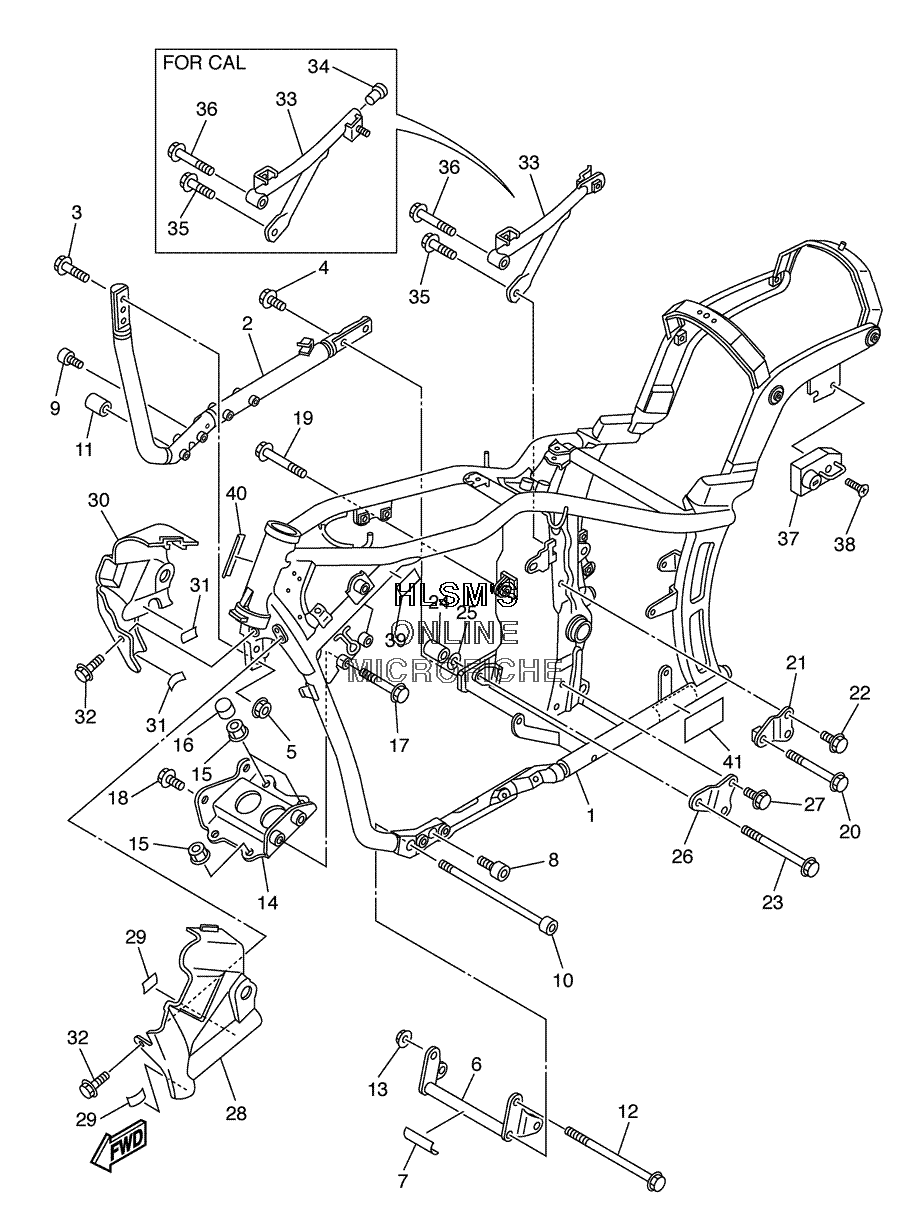

FRAME для Yamaha V STAR 1100 SILVERADO - 2005 года выпуска
-
№АртикулНазвание
-
15KS-21110-71-00 FRAME COMP.FRAME COMP.
-
25EL-21150-00-00 DOWN TUBE COMP. 2DOWN TUBE COMP. 2
-
390105-10009-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490105-10004-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
65EL-21318-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
74DN-21268-00-00 SEALSEAL
-
891317-10020-00 BOLTBOLT
-
991317-10030-00 BOLTBOLT
-
1090110-10182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190179-10377-00 NUTNUT
-
1290105-10781-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
145EL-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1590179-12657-00 NUTNUT
-
1590179-12657-00 NUTNUT
-
1690331-14001-00 PLUGPLUG
-
1790105-100A4-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1890105-10003-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1990105-10013-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2090105-10299-00 BOLT, FLANGEBOLT, FLANGE
-
215EL-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
2295817-10016-00 BOLT, FLANGEBOLT, FLANGE
-
2390105-10444-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2490179-10377-00 NUTNUT
-
2590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
265EL-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
2795817-10016-00 BOLT, FLANGEBOLT, FLANGE
-
285EL-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
293BN-21747-00-00 DAMPERDAMPER
-
305EL-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
313BN-21747-00-00 DAMPERDAMPER
-
3290119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
335EL-21460-00-00 STAY, MUFFLER (EXCEPT CALIF.)STAY, MUFFLER (EXCEPT CALIF.)
-
335KS-21460-00-00 STAY, MUFFLER (CALIF. ONLY)STAY, MUFFLER (CALIF. ONLY)
-
3490338-16148-00 PLUGPLUG
-
3595817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
3695817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
374R8-21308-00-00 HELMET HANGER ASSY.HELMET HANGER ASSY.
-
3890151-06018-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
393SP-21732-00-00 SEAL 1SEAL 1
-
403HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
415YS-2179V-00-00 PLATE, EPA 1 (EXCEPT CALIF.)PLATE, EPA 1 (EXCEPT CALIF.)
-
415YS-2179R-00-00 PLATE, EPA 2 (CALIF.ONLY)PLATE, EPA 2 (CALIF.ONLY)
