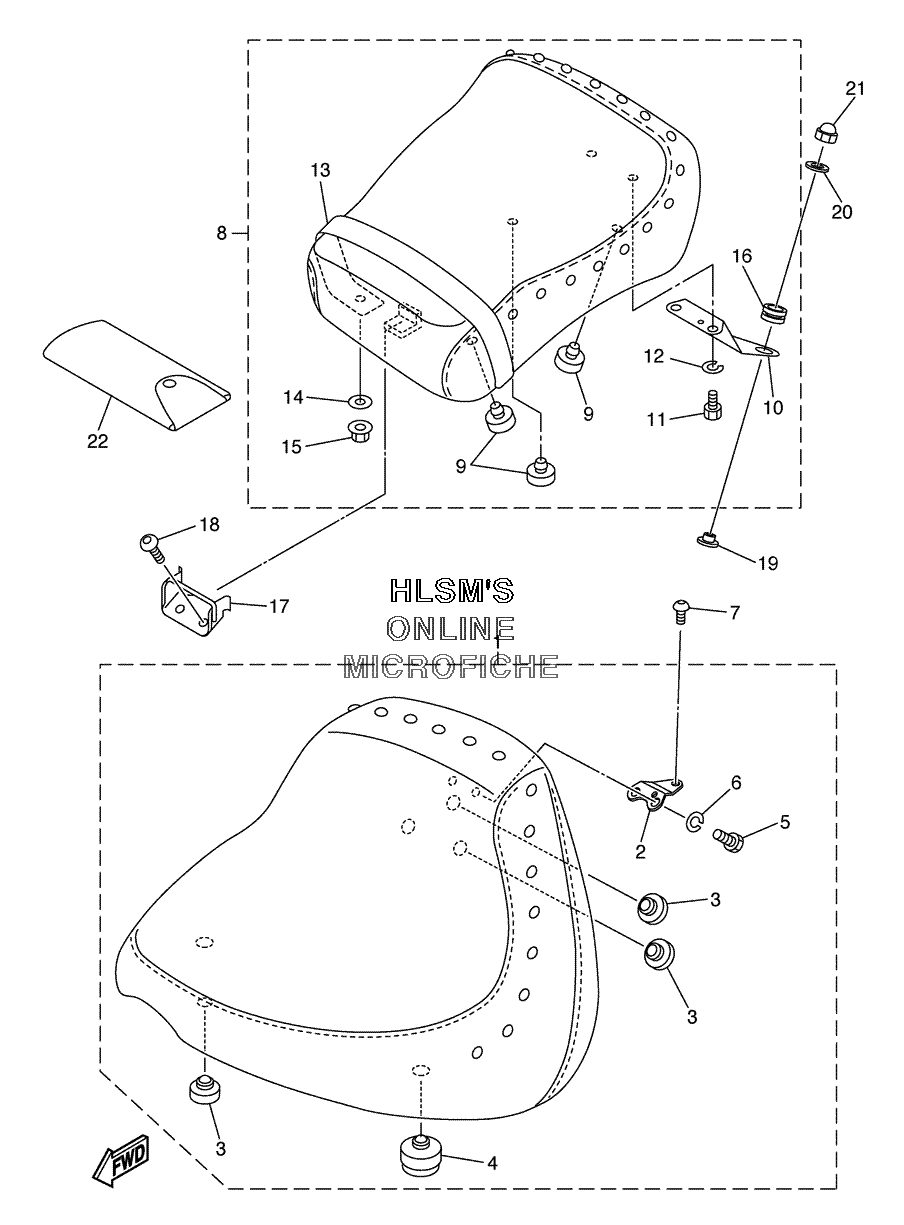

SEAT для Yamaha V STAR 1100 SILVERADO - 2005 года выпуска
-
№АртикулНазвание
-
15KS-24710-10-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25KS-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
41T4-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
792014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
85KS-24750-40-00 TANDEM SEAT ASSY.TANDEM SEAT ASSY.
-
922W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
105YS-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1197007-06012-00 ...BOLT...BOLT
-
1292907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
135KS-24734-00-00 ...BAND, SEAT...BAND, SEAT
-
1490207-06380-00 ...WASHER, FINISH...WASHER, FINISH
-
1595707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
165YS-24742-00-00 ...GROMMET...GROMMET
-
175KS-2475N-00-00 BRACKETBRACKET
-
1892017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
195YS-2471N-00-00 COLLAR 1COLLAR 1
-
2090201-08042-00 WASHER, PLAINWASHER, PLAIN
-
2190176-08001-00 NUT, CROWNNUT, CROWN
-
225EL-28100-10-00 TOOL KITTOOL KIT
