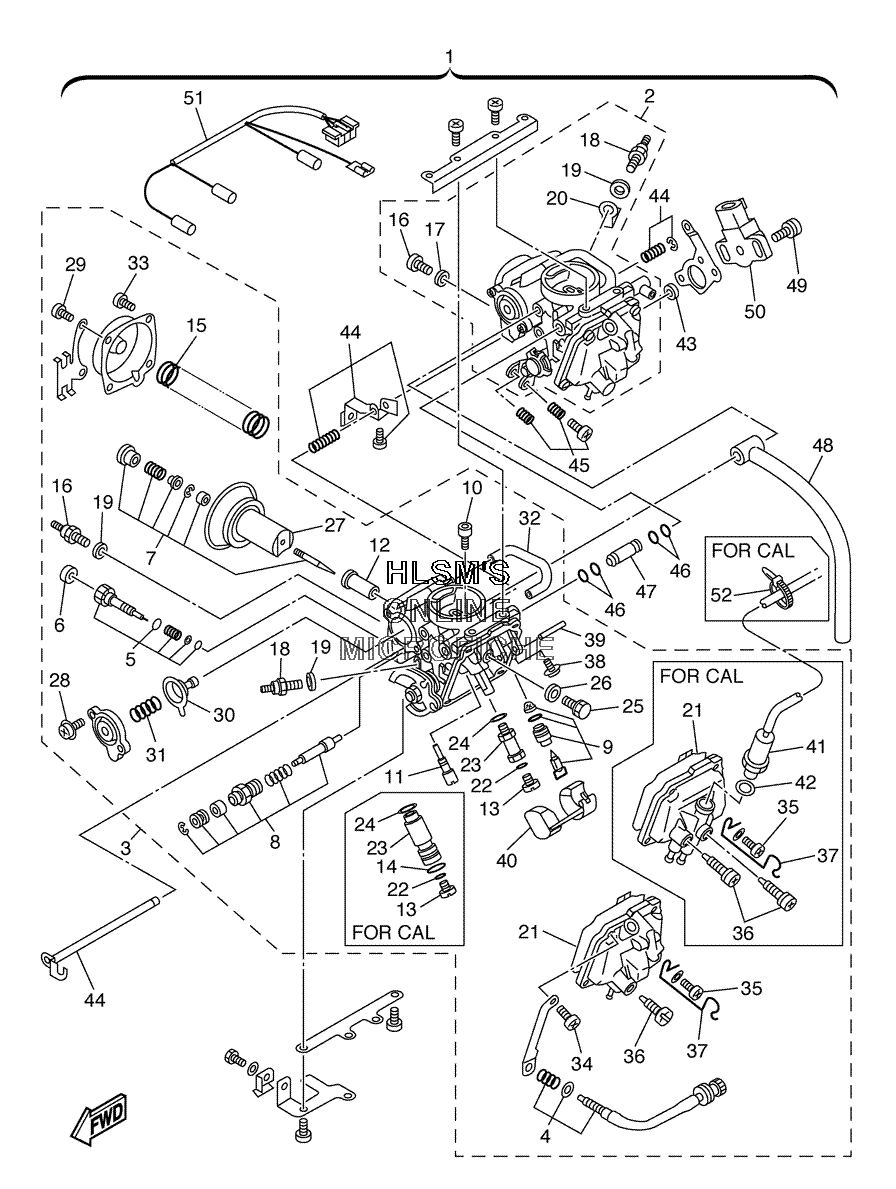

CARBURETOR для Yamaha V STAR CLASSIC - 2005 года выпуска
-
№АртикулНазвание
-
15BN-14900-40-00 CARBURETOR ASSY. PAIR (EXCEPT CALIF.)CARBURETOR ASSY. PAIR (EXCEPT CALIF.)
-
15SC-14900-20-00 CARBURETOR ASSY. PAIR (CALIF. ONLY)CARBURETOR ASSY. PAIR (CALIF. ONLY)
-
25BN-14901-40-00 ......CARBURETOR ASSY. REAR (#1) (EXCEPT CALIF.)......CARBURETOR ASSY. REAR (#1) (EXCEPT CALIF.)
-
25SC-14901-20-00 ......CARBURETOR ASSY. REAR (#1) (CALIF. ONLY)......CARBURETOR ASSY. REAR (#1) (CALIF. ONLY)
-
35BN-14902-40-00 ......CARBURETOR ASSY. FRONT (#2) (EXCEPT CALIF.)......CARBURETOR ASSY. FRONT (#2) (EXCEPT CALIF.)
-
35SC-14902-20-00 ......CARBURETOR ASSY. FRONT (#2) (CALIF. ONLY)......CARBURETOR ASSY. FRONT (#2) (CALIF. ONLY)
-
44TR-14103-00-00 ......THROTTLE SCREW SET FRONT (#2)......THROTTLE SCREW SET FRONT (#2)
-
54LA-14105-00-00 ......PILOT SCREW SET (EXCEPT CALIF.)......PILOT SCREW SET (EXCEPT CALIF.)
-
54TR-14105-00-00 ......PILOT SCREW SET (CALIF. ONLY)......PILOT SCREW SET (CALIF. ONLY)
-
63F9-14118-00-00 ......CAP......CAP
-
75BN-1490J-00-00 ......NEEDLE SET......NEEDLE SET
-
84DN-1410A-01-00 ......STARTER SET......STARTER SET
-
93CF-14107-10-00 ......NEEDLE VALVE SET......NEEDLE VALVE SET
-
101HX-14231-20-00 ......JET, PILOT AIR (#90)......JET, PILOT AIR (#90)
-
114KM-14142-20-00 ......JET, PILOT (# 20)......JET, PILOT (# 20)
-
123DM-1414M-34-00 ......NOZZLE, MAIN......NOZZLE, MAIN
-
13620-14231-18-00 ......JET, MAIN (# 90) (EXCEPT CALIF.)......JET, MAIN (# 90) (EXCEPT CALIF.)
-
133G2-1414E-36-00 ......JET, MAIN (#91.3) (CALIF. ONLY)......JET, MAIN (#91.3) (CALIF. ONLY)
-
148F2-14147-00-00 ......O-RING......O-RING
-
154VR-14933-00-00 ......SPRING, DIAPHRAGM......SPRING, DIAPHRAGM
-
163DM-14216-00-00 ......SCREW (#1) REAR......SCREW (#1) REAR
-
165FU-83790-00-00 ......HEATER ASSY. (15W) (#2) FRONT......HEATER ASSY. (15W) (#2) FRONT
-
17127-14198-00-00 ......GASKET (#1) REAR......GASKET (#1) REAR
-
185FU-83790-10-00 ......HEATER ASSY. (20W)......HEATER ASSY. (20W)
-
1990201-08016-00 ......WASHER, PLATE (#1) REAR......WASHER, PLATE (#1) REAR
-
1990201-08016-00 ......WASHER, PLATE (#2) FRONT......WASHER, PLATE (#2) FRONT
-
204DH-82103-00-00 ......TERMINAL (#1) REAR......TERMINAL (#1) REAR
-
211HX-14147-00-00 ......O-RING......O-RING
-
221AE-14227-00-00 ......O-RING......O-RING
-
231AE-14261-00-00 ......HOLDER......HOLDER
-
235SC-14261-00-00 ......HOLDER......HOLDER
-
241AE-14237-00-00 ......GASKET......GASKET
-
251HX-14565-00-00 ......SCREW......SCREW
-
26137-14153-00-00 ......WASHER, MAIN JET......WASHER, MAIN JET
-
274TR-14940-00-00 ......DIAPHRAGM ASSY.......DIAPHRAGM ASSY.
-
281UY-14565-00-00 ......SCREW......SCREW
-
293KW-14486-00-00 ......SCREW, ROD (#2) FRONT......SCREW, ROD (#2) FRONT
-
3022V-14940-00-00 ......DIAPHRAGM ASSY.......DIAPHRAGM ASSY.
-
3126H-14275-00-00 ......SPRING (EXCEPT CALIF.)......SPRING (EXCEPT CALIF.)
-
315SC-14275-00-00 ......SPRING (CALIF. ONLY)......SPRING (CALIF. ONLY)
-
324TR-14348-00-00 ......PIPE 1......PIPE 1
-
3398507-04008-00 ......SCREW, PAN HEAD (#2) FRONT......SCREW, PAN HEAD (#2) FRONT
-
3398507-04008-00 ......SCREW, PAN HEAD (#1) REAR......SCREW, PAN HEAD (#1) REAR
-
3498707-04014-00 ......SCREW, FLAT HEAD (#2) FRONT......SCREW, FLAT HEAD (#2) FRONT
-
3498707-04014-00 ......SCREW, FLAT HEAD (#1) REAR......SCREW, FLAT HEAD (#1) REAR
-
354VR-24453-00-00 ......SCREW (#2) FRONT......SCREW (#2) FRONT
-
3612R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
365LW-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
374TR-14937-00-00 ......CLIP (#2) FRONT......CLIP (#2) FRONT
-
381FN-14565-00-00 ......SCREW......SCREW
-
39353-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
401HX-14985-00-00 ......FLOAT......FLOAT
-
415SC-1410H-10-00 ......FUEL CUT SOLENOID VALVE (#1) REAR......FUEL CUT SOLENOID VALVE (#1) REAR
-
415SC-1410H-00-00 ......FUEL CUT SOLENOID VALVE (#2) FRONT......FUEL CUT SOLENOID VALVE (#2) FRONT
-
42256-14956-01-00 ......WASHER......WASHER
-
434HM-14239-00-00 ...SEAL...SEAL
-
444TR-1490L-00-00 ...STARTER LEVER SET, 1...STARTER LEVER SET, 1
-
453KW-1490K-00-00 ...STOP SCREW SET...STOP SCREW SET
-
4636Y-14147-00-00 ...O-RING...O-RING
-
471WG-14251-00-00 ...NIPPLE...NIPPLE
-
484TR-14987-00-00 ...HOSE...HOSE
-
494KM-24453-00-00 ...SCREW...SCREW
-
504NK-85885-00-00 ...THROTTLE POSITION SENSOR ASS...THROTTLE POSITION SENSOR ASS
-
515SC-81517-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
5235H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
