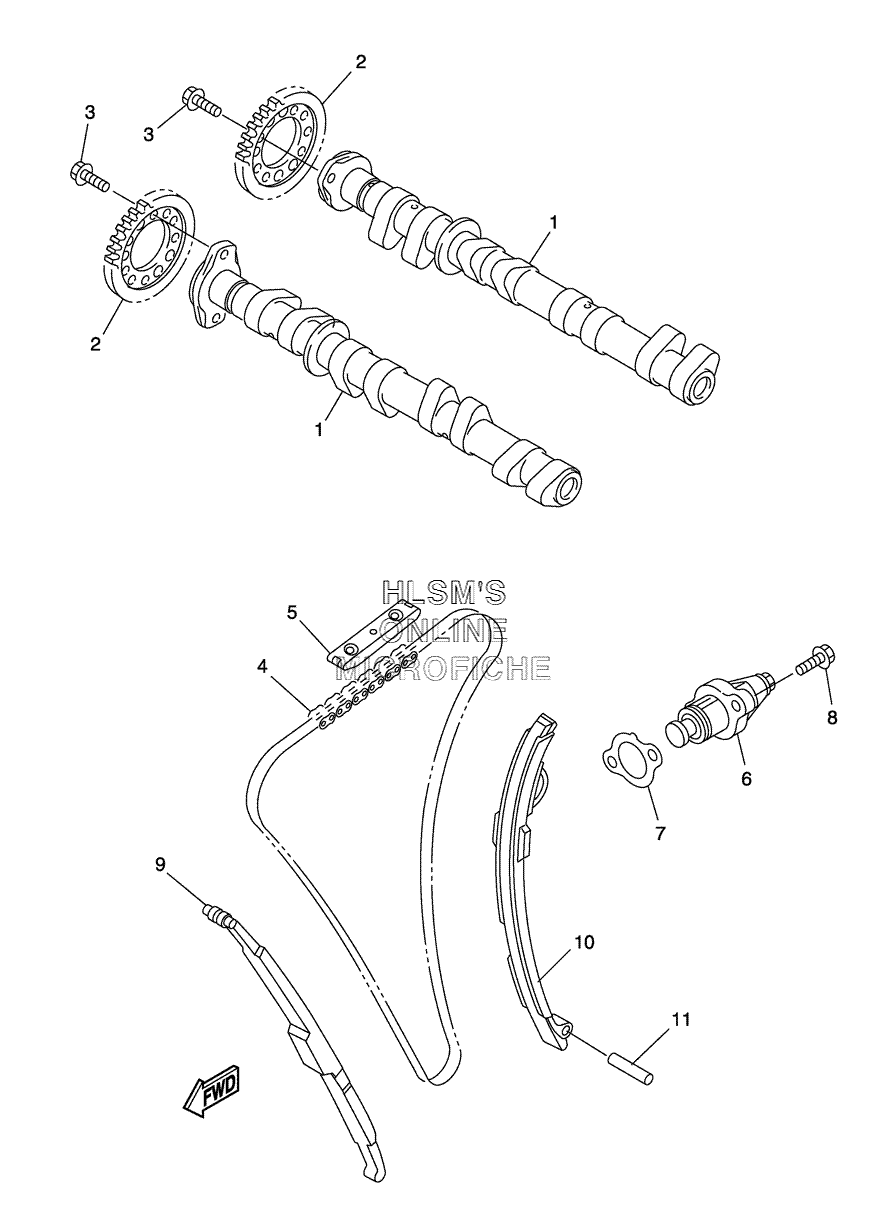

CAMSHAFT W/ CHAIN для Yamaha FJR1300A - 2006 года выпуска
-
№АртикулНазвание
-
15JW-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
25JW-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
494591-49136-00 CHAINCHAIN
-
55BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
65JW-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
75JW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
895022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
95JW-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
105JW-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1193607-44190-00 PIN, DOWELPIN, DOWEL
