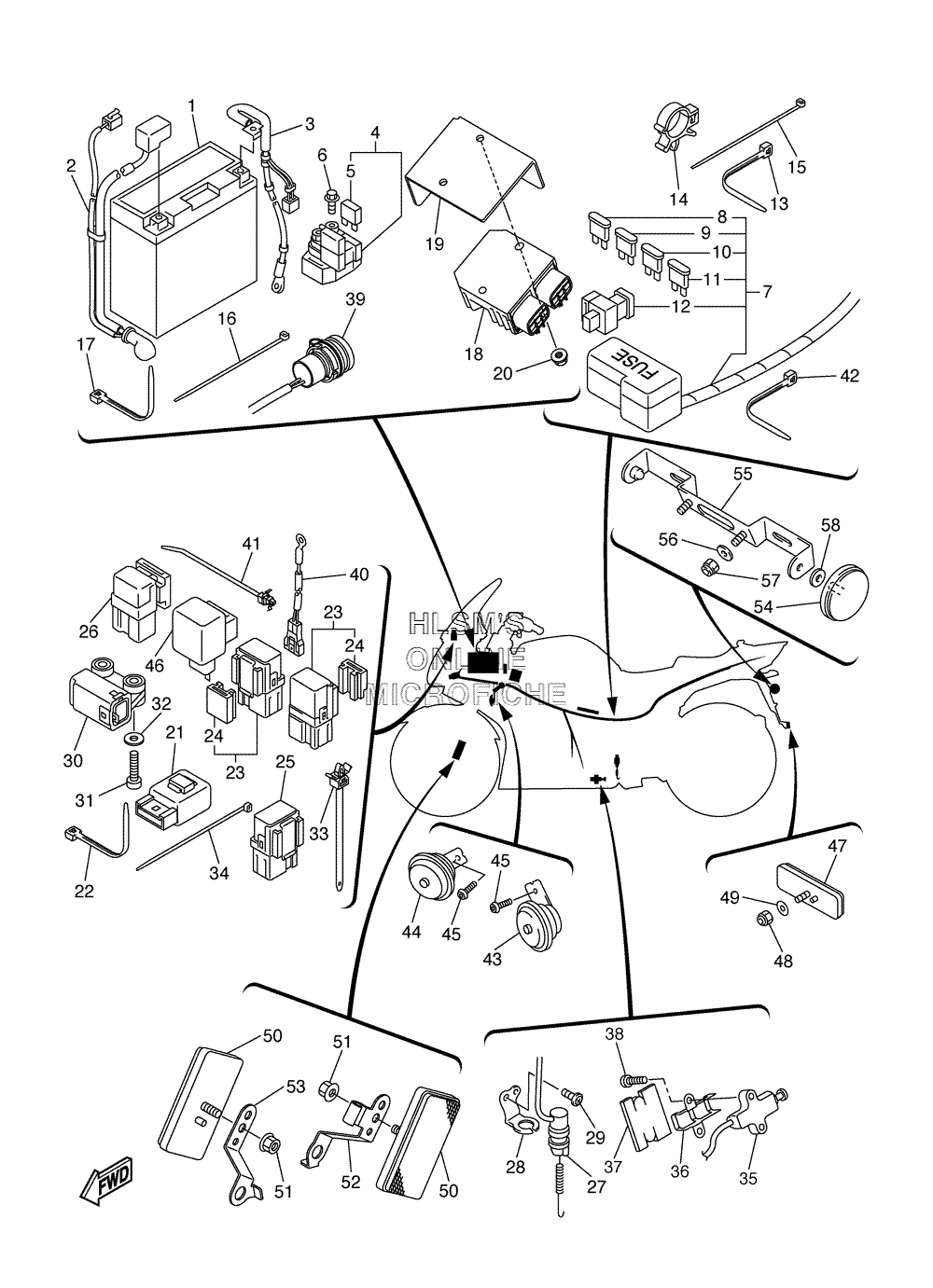

ELECTRICAL 2 для Yamaha FJR1300A - 2006 года выпуска
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
23P6-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
33P6-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
44YR-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
51AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
73P6-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
85JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
95JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
115JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
125JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
1390465-10098-00 BANDBAND
-
1490464-16006-00 CLAMPCLAMP
-
155Y9-12491-00-00 CLAMP 1CLAMP 1
-
1690465-13152-00 BANDBAND
-
171UA-82591-00-00 BANDBAND
-
181D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
193P6-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
2095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
215VK-81950-30-00 RELAY ASSYRELAY ASSY
-
2290465-10098-00 BANDBAND
-
235EA-81950-20-00 RELAY ASSYRELAY ASSY
-
245EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
255JJ-81950-10-00 RELAY ASSYRELAY ASSY
-
265DM-81950-00-00 RELAY ASSYRELAY ASSY
-
273P6-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
285JW-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
2998902-05008-00 SCREW, BINDSCREW, BIND
-
305PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
3198902-04020-00 SCREW, BINDSCREW, BIND
-
3290201-047A2-00 WASHER, PLATEWASHER, PLATE
-
3390464-12036-00 CLAMPCLAMP
-
3490465-13152-00 CLAMPCLAMP
-
355PX-82566-51-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
363P6-82388-00-00 PLATEPLATE
-
373P6-82176-00-00 DAMPERDAMPER
-
3890157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
393P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
405RU-85700-00-00 THERMISTOR ASSYTHERMISTOR ASSY
-
4190464-24001-00 CLAMPCLAMP
-
4290465-10098-00 BANDBAND
-
435PS-83371-00-00 HORNHORN
-
443P6-83371-00-00 HORNHORN
-
4592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
463GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
473Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4895602-05100-00 NUT, UNUT, U
-
4990201-05725-00 WASHER, PLATEWASHER, PLATE
-
5011H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
5195702-05500-00 NUT, FLANGENUT, FLANGE
-
523P6-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
533P6-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
54449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
555JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5690201-06778-00 WASHER, PLATEWASHER, PLATE
-
5795602-06100-00 NUT, UNUT, U
-
5890201-05036-00 WASHER, PLATEWASHER, PLATE
