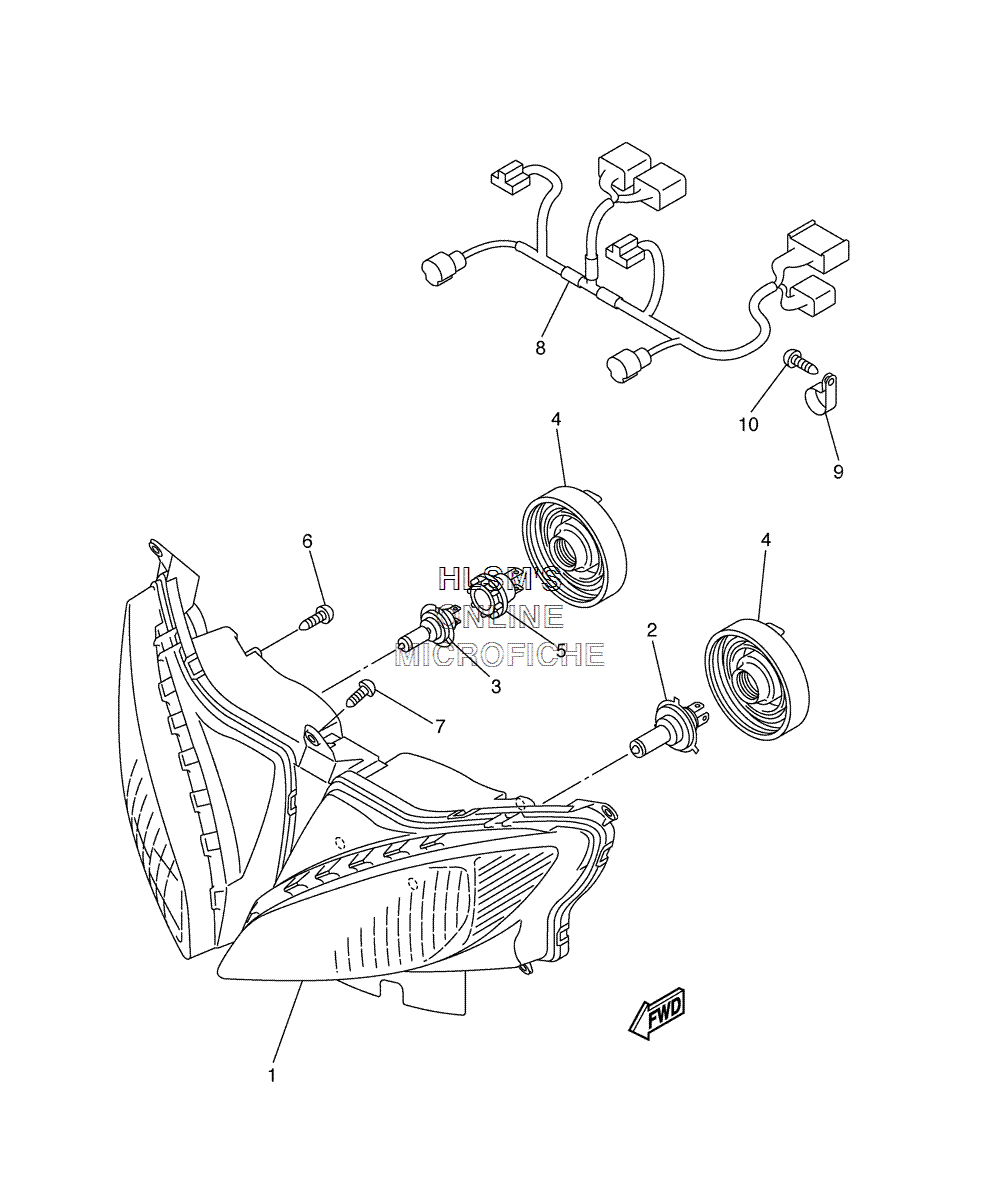

HEADLIGHT для Yamaha FZ6 - 2006 года выпуска
-
№АртикулНазвание
-
15VX-84310-20-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25V2-84314-00-XX BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
34SV-84314-00-00 BULB (12V-55W) (H7) HALOGENBULB (12V-55W) (H7) HALOGEN
-
45LV-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
54SV-84350-00-00 SOCKET CORD ASSY 2SOCKET CORD ASSY 2
-
690164-05014-00 SCREW, TAPPINGSCREW, TAPPING
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
85VX-84359-20-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
990464-18029-00 CLAMPCLAMP
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
