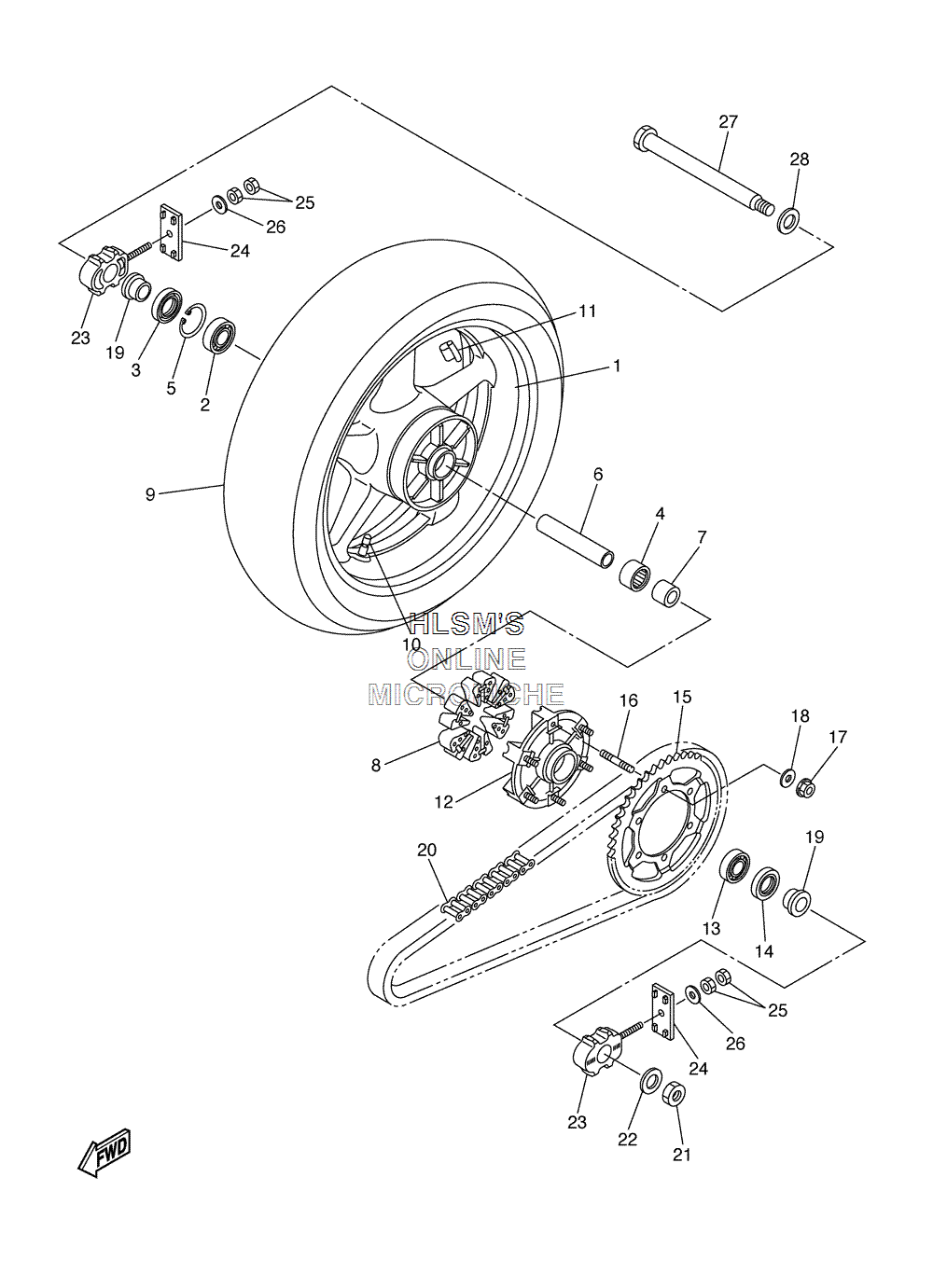

WHEEL - REAR для Yamaha FZ6 - 2006 года выпуска
-
№АртикулНазвание
-
15SL-25338-00-98 CAST WHEEL, REAR (LOW GLOSS BLACK)CAST WHEEL, REAR (LOW GLOSS BLACK)
-
293306-20531-00 BEARINGBEARING
-
393106-40013-00 OIL SEALOIL SEAL
-
493317-43580-00 BEARINGBEARING
-
593420-61M07-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
-
64XV-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
75SL-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
85VX-25364-00-00 DAMPERDAMPER
-
994118-17041-00 TIRE (180/55ZR17M/C 73W BT020R) (BRIDGESTONE)TIRE (180/55ZR17M/C 73W BT020R) (BRIDGESTONE)
-
994118-17053-00 TIRE (180/55ZR17M/C 73W D252) (DUNLOP)TIRE (180/55ZR17M/C 73W D252) (DUNLOP)
-
1093900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
115MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
115MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
115MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
125SL-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-20531-00 BEARINGBEARING
-
1493106-40013-00 OIL SEALOIL SEAL
-
155VX-25446-00-00 SPROCKET, DRIVEN (46T)SPROCKET, DRIVEN (46T)
-
1690116-10485-00 BOLT, STUDBOLT, STUD
-
1790185-10009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890201-10021-00 WASHER, PLATEWASHER, PLATE
-
1990387-28001-00 COLLARCOLLAR
-
2094582-11118-00 CHAIN (DID50V4-118LE)CHAIN (DID50V4-118LE)
-
2190185-24165-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290201-25015-00 WASHER, PLATEWASHER, PLATE
-
235VX-25388-01-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
242GH-25389-10-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
2595307-08600-00 NUTNUT
-
2692907-08200-00 WASHERWASHER
-
275VX-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2890201-28014-00 WASHER, PLATEWASHER, PLATE
