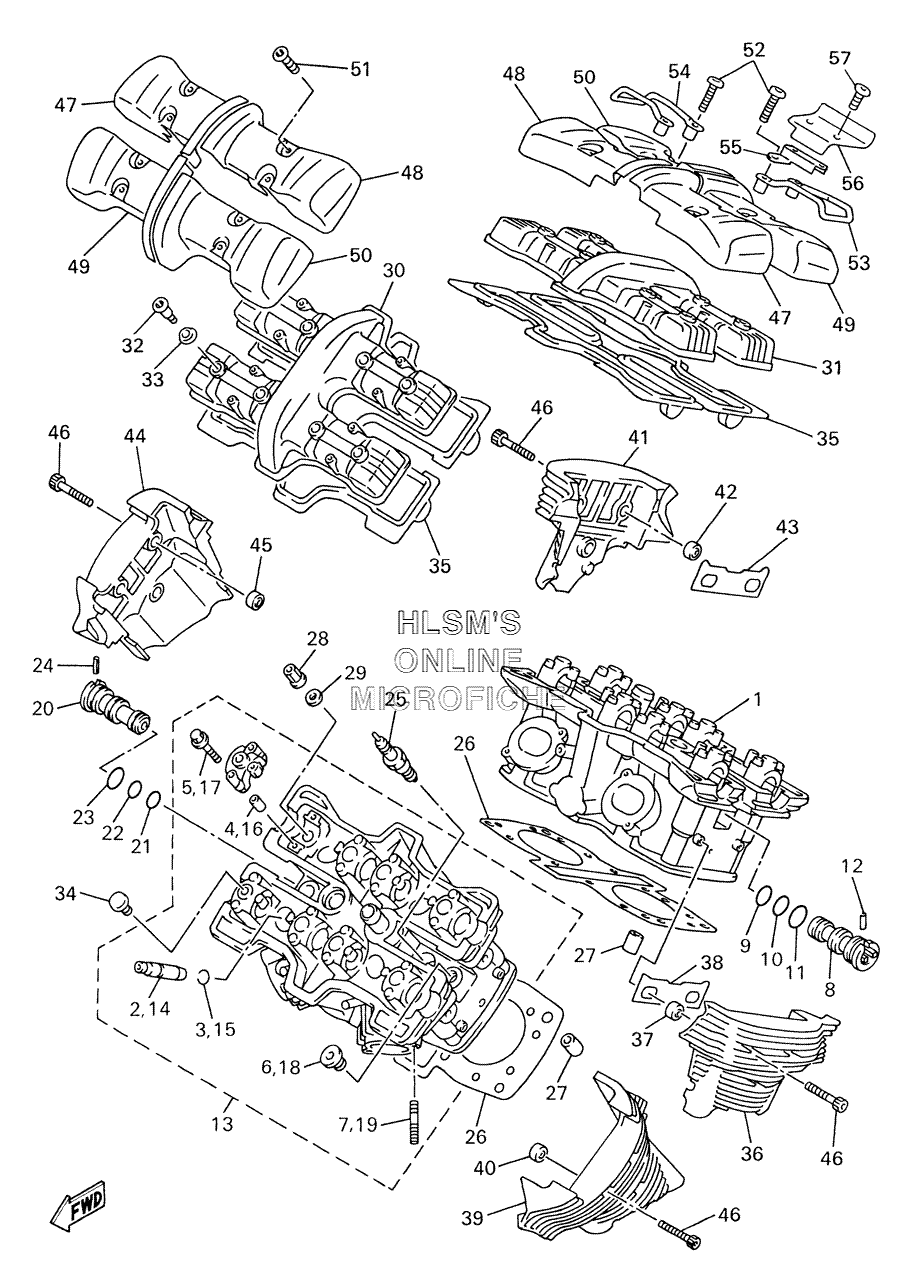

CYLINDER HEAD для Yamaha ROYAL STAR VENTURE - 2006 года выпуска
-
№АртикулНазвание
-
14XY-11101-40-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
226H-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-12117-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590105-06153-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
690340-18101-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
795617-08620-00 ...BOLT, STUD...BOLT, STUD
-
826H-12469-01-00 JOINT 1JOINT 1
-
993210-16629-00 O-RINGO-RING
-
1093210-18322-00 O-RINGO-RING
-
1193210-21631-00 O-RINGO-RING
-
1290254-03008-00 PIN, SPRINGPIN, SPRING
-
134XY-11101-50-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
1426H-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
1593440-12117-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
1691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1790105-06153-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1890340-18101-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
1995617-08620-00 ...BOLT, STUD...BOLT, STUD
-
2026H-12469-01-00 JOINT 1JOINT 1
-
2193210-16629-00 O-RINGO-RING
-
2293210-18322-00 O-RINGO-RING
-
2393210-21631-00 O-RINGO-RING
-
2490254-03008-00 PIN, SPRINGPIN, SPRING
-
25NGK-DPR8E-A9-00 PLUG, SPARK (NGK DPR8EA-9)PLUG, SPARK (NGK DPR8EA-9)
-
261NL-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2799530-14016-00 PIN, DOWELPIN, DOWEL
-
2890179-10414-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2990201-102G9-00 WASHER, PLATEWASHER, PLATE
-
304NK-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
314NK-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
3290109-066F0-00 BOLTBOLT
-
334KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
3490338-10150-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
354NK-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
364NK-11186-20-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
374NK-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
384NK-11195-00-00 GASKETGASKET
-
394XY-11187-20-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
404NK-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
414NK-11185-20-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
424NK-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
434NK-11195-00-00 GASKETGASKET
-
444XY-1111H-20-00 COVER, CYLINDER HEAD SIDE 4COVER, CYLINDER HEAD SIDE 4
-
454NK-15316-00-00 DAMPER, ENGINE MOUNT 1DAMPER, ENGINE MOUNT 1
-
4691314-06020-00 BOLTBOLT
-
474NK-1111M-00-00 COVER 1COVER 1
-
484NK-1111N-00-00 COVER 2COVER 2
-
494NK-1111P-00-00 COVER 3COVER 3
-
504NK-1111R-00-00 COVER 4COVER 4
-
5192014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5292014-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
534NK-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
544NK-11142-00-00 BRACKET, CYLINDER HEAD COVER 2BRACKET, CYLINDER HEAD COVER 2
-
554XY-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
-
564XY-1118A-00-00 COVERCOVER
-
5792014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
