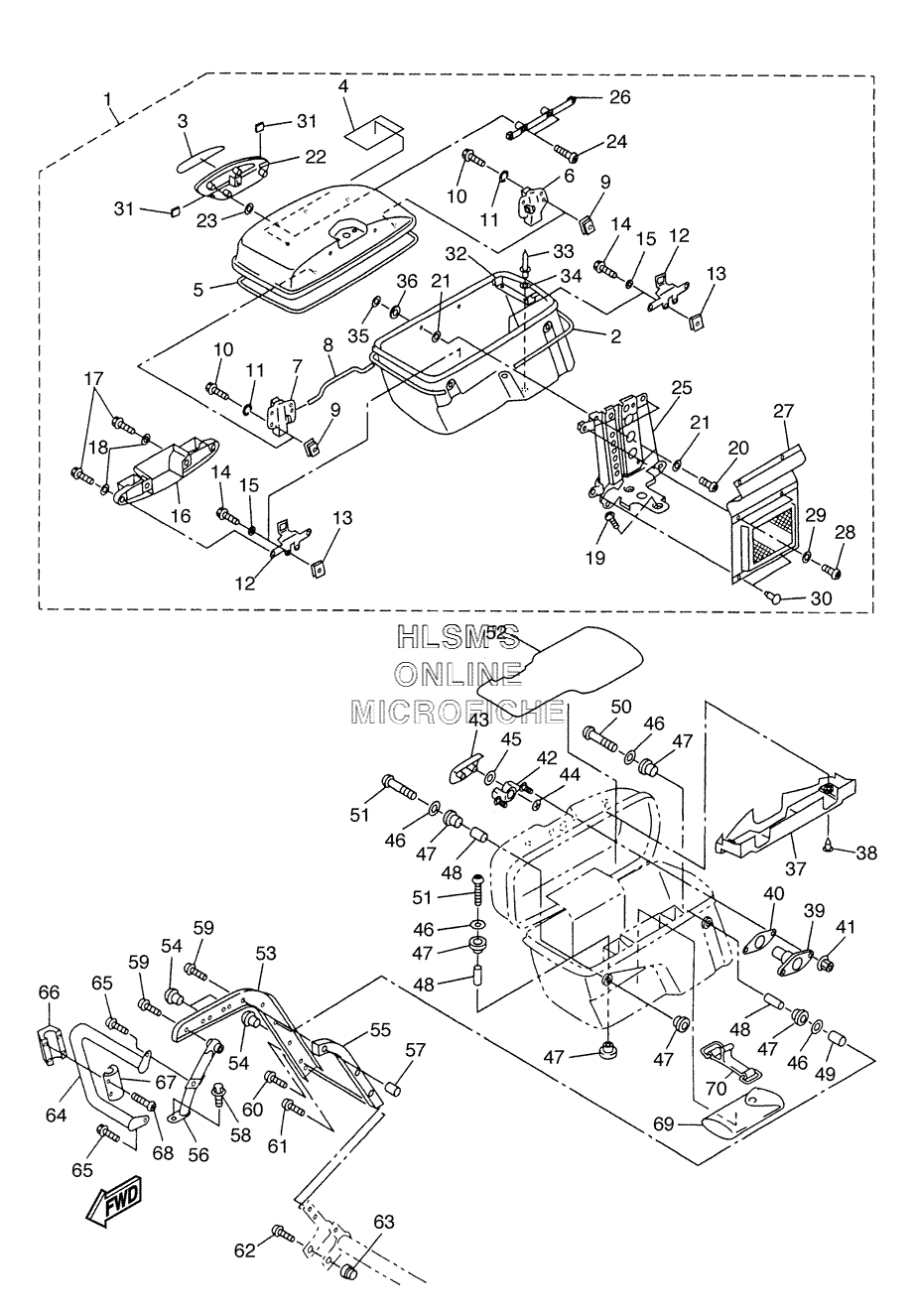

SADDLEBAG 2 для Yamaha ROYAL STAR VENTURE - 2006 года выпуска
-
№АртикулНазвание
-
14XY-Y2844-2S-P3 SADDLEBAG COMP, 2 (VDRM2)SADDLEBAG COMP, 2 (VDRM2)
-
24XY-2840J-A0-00 ...SADDLEBAG GRAPHIC SET 2...SADDLEBAG GRAPHIC SET 2
-
34XY-2847B-50-00 ...ORNAMENT 2...ORNAMENT 2
-
44XY-28446-01-00 ...LABEL, CAUTION...LABEL, CAUTION
-
54XY-28428-00-00 ...SEAL 1...SEAL 1
-
64XY-28494-00-00 ...HOOK 3...HOOK 3
-
74XY-28495-00-00 ...HOOK 4...HOOK 4
-
84XY-2841A-00-00 ...LEVER...LEVER
-
990183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1097007-05012-00 ...BOLT...BOLT
-
1192907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
124XY-28498-00-00 ...HOOK 2...HOOK 2
-
1390183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1497007-05016-00 ...BOLT...BOLT
-
1592907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
164XY-2843J-00-00 ...COVER 3...COVER 3
-
1792017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1892907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
1997707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2092017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2190201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
224XY-28454-10-00 ...HING 3...HING 3
-
2390202-08125-00 ...WASHER, PLATE...WASHER, PLATE
-
2492017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
254XY-28437-00-00 ...REINFORCEMENT 2...REINFORCEMENT 2
-
264XY-2847H-00-00 ...PLATE 5...PLATE 5
-
274XY-2845M-00-00 ...STOPPER, OPEN...STOPPER, OPEN
-
2892017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2992907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
3090269-05039-00 ...RIVET, SPEC'L SHAPE...RIVET, SPEC'L SHAPE
-
314XY-28499-00-00 ...PLATE, RUBBER 4...PLATE, RUBBER 4
-
324XY-2843L-00-00 ...PLATE...PLATE
-
3390267-32109-00 ...RIVET, BLIND...RIVET, BLIND
-
3492907-03600-00 ...WASHER...WASHER
-
3590201-08326-00 ...WASHER, PLATE...WASHER, PLATE
-
364XY-28429-00-00 ...SEAL 2...SEAL 2
-
374XY-2849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
3890269-06081-00 RIVETRIVET
-
394XY-W2843-00-00 LOCK ASS'Y 3LOCK ASS'Y 3
-
404XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
4195607-05200-00 NUT, U FLANGENUT, U FLANGE
-
424XY-2849H-00-00 PLATE 6PLATE 6
-
434XY-2843C-00-00 COVER 6COVER 6
-
4490183-04005-00 NUT, SPRINGNUT, SPRING
-
454KJ-28371-00-00 DAMPERDAMPER
-
4690201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4790480-20447-00 GROMMETGROMMET
-
4890387-084R5-00 COLLARCOLLAR
-
4990387-0811N-00 COLLARCOLLAR
-
5092017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5192017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
524XY-2848K-00-00 SEAT 2SEAT 2
-
534XY-28474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
5490338-07259-00 PLUGPLUG
-
551D6-28416-00-00 DAMPER 2DAMPER 2
-
564YE-28414-02-00 STAY, FRONT GUARD 2STAY, FRONT GUARD 2
-
5790387-0811N-00 COLLARCOLLAR
-
5895807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5990111-08021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6092014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6192014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
6395307-08800-00 NUTNUT
-
644XY-2842K-00-00 GUARD, SADDLEBAG 2GUARD, SADDLEBAG 2
-
6595814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
664YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
674YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
6897707-30514-00 SCREW, TAPPINGSCREW, TAPPING
-
694XY-28100-01-00 TOOL KITTOOL KIT
-
7055K-2811G-00-00 BANDBAND
