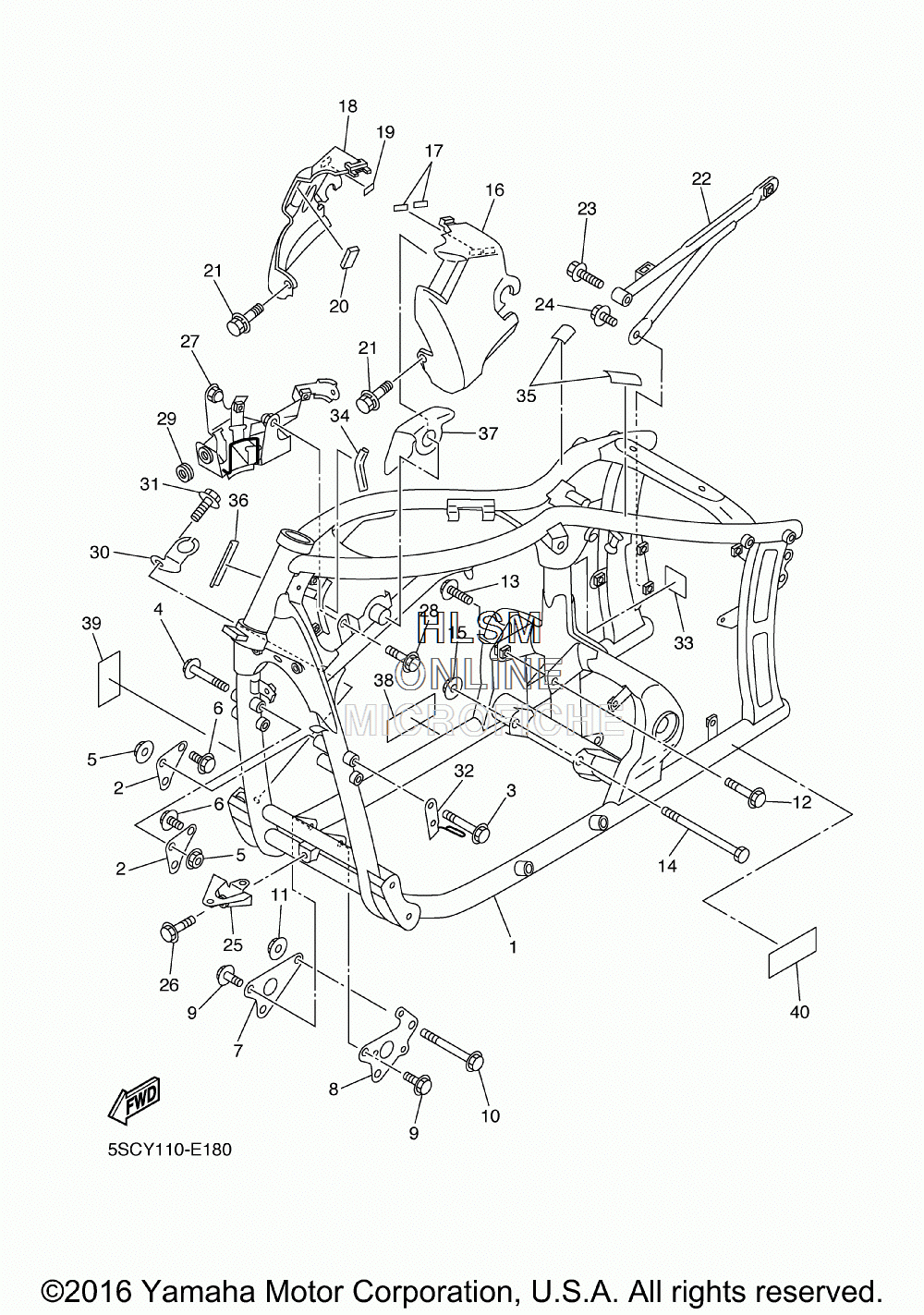

FRAME для Yamaha V STAR 650 SILVERADO [ XVS65ATV/C] (4C54/4C55) - 2006 года выпуска
-
№АртикулНазвание
-
14VR-21110-40-00 FRAME COMP.FRAME COMP.
-
24VR-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
390105-082A4-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490105-084A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
590179-08684-00 NUTNUT
-
695817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
74VR-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
85BN-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
990105-08307-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1095814-10100-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-10658-00 NUTNUT
-
1290105-10253-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
1490101-12694-00 BOLTBOLT
-
1590179-12248-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
164TR-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
173BN-21747-00-00 DAMPERDAMPER
-
184TR-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
193BN-21747-00-00 DAMPERDAMPER
-
204SV-28372-00-00 DAMPERDAMPER
-
2190119-06236-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
224TR-21460-10-00 STAY, MUFFLERSTAY, MUFFLER
-
2395817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
2495817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
254VR-28356-01-00 STAY 1STAY 1
-
2690105-062A2-00 BOLT, FLANGEBOLT, FLANGE
-
274TR-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2895807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2990480-12320-00 GROMMETGROMMET
-
304TR-2144G-01-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3195807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
324VR-21161-00-00 HOLDER, CABLEHOLDER, CABLE
-
333FY-21575-01-00 SEAL 1SEAL 1
-
344GY-2214F-00-00 DAMPER 1DAMPER 1
-
353SP-21732-00-00 SEAL 1SEAL 1
-
363HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
375KP-21266-00-00 SHEET 1SHEET 1
-
385FB-2179W-00-00 PLATE, EPA (NON CALIF.)PLATE, EPA (NON CALIF.)
-
385FB-2179R-50-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
-
395BN-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
405BN-21668-00-00 LABEL, TIRELABEL, TIRE
