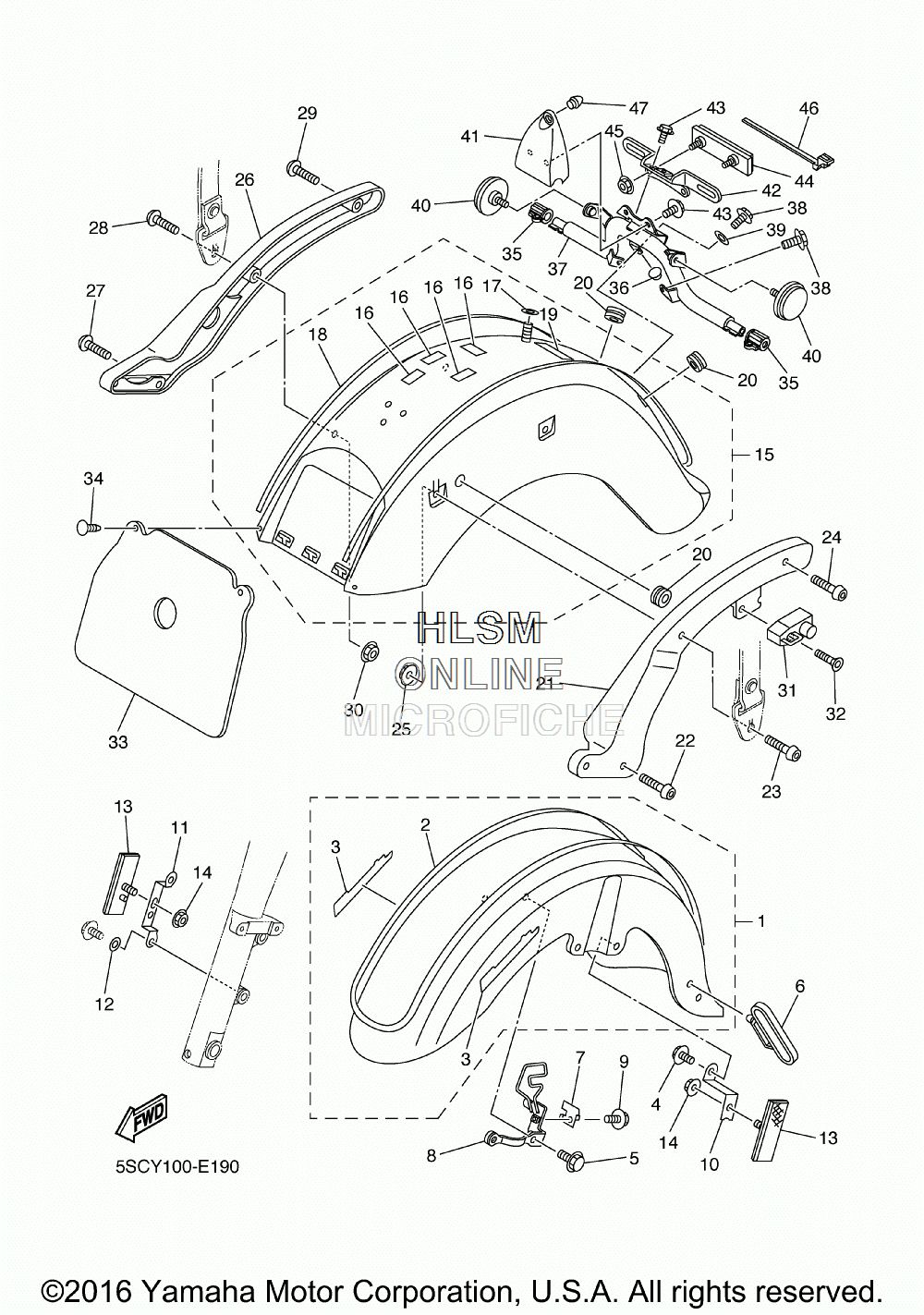

FENDER - FRONT / REAR для Yamaha V STAR CLASSIC [ XVS65AV/C] (5SCY/4C51) - 2006 года выпуска
-
№АртикулНазвание
-
15BN-Y2151-0C-P4 FRONT FENDER COMP. (SMX)FRONT FENDER COMP. (SMX)
-
15BN-Y2151-0E-XE FRONT FENDER COMP. (DPBML/SMX)FRONT FENDER COMP. (DPBML/SMX)
-
15BN-Y2151-0F-P3 FRONT FENDER COMP. (BWC1)FRONT FENDER COMP. (BWC1)
-
25SC-21570-10-00 ...GRAPHIC SET, FRONT FENDER (FOR SMX)...GRAPHIC SET, FRONT FENDER (FOR SMX)
-
25SC-21570-20-00 ...GRAPHIC SET, FRONT FENDER (FOR DPBML)...GRAPHIC SET, FRONT FENDER (FOR DPBML)
-
25SC-21570-30-00 ...GRAPHIC SET, FRONT FENDER (FOR BWC1)...GRAPHIC SET, FRONT FENDER (FOR BWC1)
-
35BN-21578-E0-00 ...EMBLEM (FOR SMX,DPBML)...EMBLEM (FOR SMX,DPBML)
-
35BN-21578-M0-00 ...EMBLEM (FOR BWC1)...EMBLEM (FOR BWC1)
-
495817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
595814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
65BN-21518-01-00 HOLDER, CABLEHOLDER, CABLE
-
75BN-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
85BN-21587-01-00 STAY 1STAY 1
-
995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
105BN-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
115BN-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
1290201-08759-00 WASHER, PLATEWASHER, PLATE
-
1311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1495707-05500-00 NUT, FLANGENUT, FLANGE
-
155BN-Y216R-40-P4 REAR FENDER COMP. (SMX)REAR FENDER COMP. (SMX)
-
155BN-Y216R-B0-XG REAR FENDER COMP. (DPBML/SMX)REAR FENDER COMP. (DPBML/SMX)
-
155BN-Y216R-20-P3 REAR FENDER COMP. (BWC1)REAR FENDER COMP. (BWC1)
-
163SP-21732-00-00 ...SEAL 1...SEAL 1
-
174NK-21735-00-00 ...SEAL 2...SEAL 2
-
185SC-2165A-10-00 ......GRAPHIC SET, REAR FENDER (FOR SMX)......GRAPHIC SET, REAR FENDER (FOR SMX)
-
185SC-2165A-20-00 ......GRAPHIC SET, REAR FENDER (FOR DPBML)......GRAPHIC SET, REAR FENDER (FOR DPBML)
-
185SC-2165A-30-00 ......GRAPHIC SET, REAR FENDER (FOR BWC1)......GRAPHIC SET, REAR FENDER (FOR BWC1)
-
191D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
2090480-15061-00 GROMMETGROMMET
-
215BN-21613-10-00 STAY, FENDER 1STAY, FENDER 1
-
2290157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2492014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590179-08491-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
265BN-21614-10-00 STAY, FENDER 2STAY, FENDER 2
-
2790157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2892014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2992014-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3090179-08491-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
314R8-21308-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
3290149-06154-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
334TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3490269-05039-00 RIVETRIVET
-
355VN-83321-00-00 DAMPER, FLASHER 1DAMPER, FLASHER 1
-
364NK-83345-00-00 PLUG, BLINDPLUG, BLIND
-
375BN-2317W-40-00 STAY, 9STAY, 9
-
3895024-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-06043-00 WASHER, PLATEWASHER, PLATE
-
40449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
415BN-84703-00-00 BRACKETBRACKET
-
425BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4395027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
441FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4595707-05500-00 NUT, FLANGENUT, FLANGE
-
4690464-25002-00 CLAMPCLAMP
-
4742U-21639-00-00 DAMPER 2DAMPER 2
