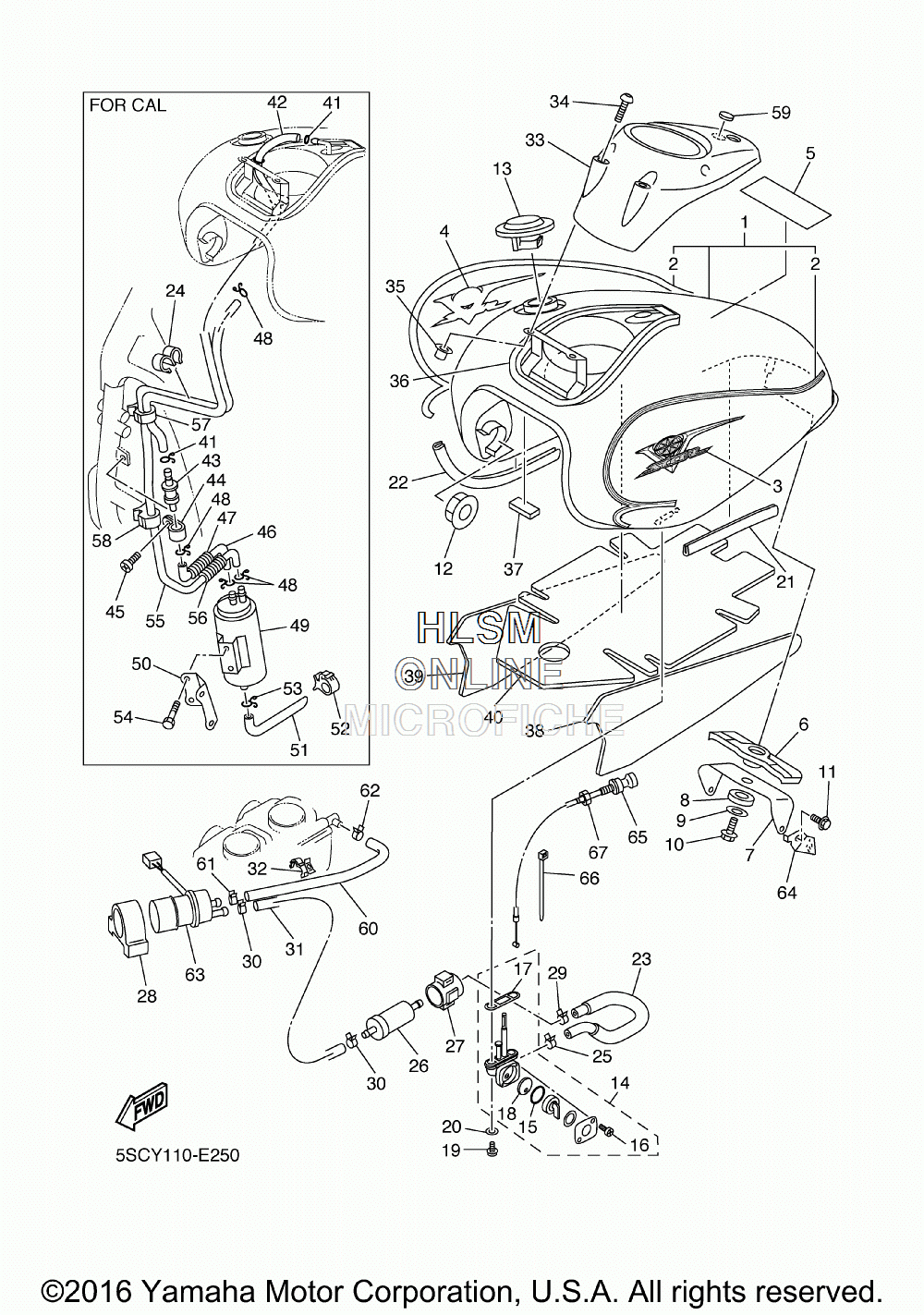

FUEL TANK для Yamaha V STAR CLASSIC [ XVS65AV/C] (5SCY/4C51) - 2006 года выпуска
-
№АртикулНазвание
-
15SC-Y2410-30-07 FUEL TANK COMP. (SMX) (EXCEPT CALIF.)FUEL TANK COMP. (SMX) (EXCEPT CALIF.)
-
15SC-Y2410-10-W3 FUEL TANK COMP. (SMX) (CALIF. ONLY)FUEL TANK COMP. (SMX) (CALIF. ONLY)
-
15SC-Y2410-30-08 FUEL TANK COMP. (DPBML/SMX) (EXCEPT CALIF.)FUEL TANK COMP. (DPBML/SMX) (EXCEPT CALIF.)
-
15SC-Y2410-30-09 FUEL TANK COMP. (BWC1) (EXCEPT CALIF.)FUEL TANK COMP. (BWC1) (EXCEPT CALIF.)
-
15SC-Y2410-10-W4 FUEL TANK COMP. (DPBML/SMX) (CALIF. ONLY)FUEL TANK COMP. (DPBML/SMX) (CALIF. ONLY)
-
15SC-Y2410-10-W5 FUEL TANK COMP. (BWC1) (CALIF. ONLY)FUEL TANK COMP. (BWC1) (CALIF. ONLY)
-
25FB-24240-F0-00 ...GRAPHIC SET (FOR SMX)...GRAPHIC SET (FOR SMX)
-
25FB-24240-G0-00 ...GRAPHIC SET (FOR DPBML)...GRAPHIC SET (FOR DPBML)
-
25SC-24240-50-00 ...GRAPHIC SET (FOR BWC1)...GRAPHIC SET (FOR BWC1)
-
35FB-2416B-00-00 EMBLEM (FOR SMX, DPBML)EMBLEM (FOR SMX, DPBML)
-
35FB-2416B-10-00 EMBLEM (FOR BWC1)EMBLEM (FOR BWC1)
-
45FB-2417B-00-00 EMBLEM (FOR SMX, DPBML)EMBLEM (FOR SMX, DPBML)
-
45FB-2417B-10-00 EMBLEM (FOR BWC1)EMBLEM (FOR BWC1)
-
55GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
64TR-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
74TR-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
84TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990209-06011-00 WASHERWASHER
-
1092017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1195817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
124H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
135BN-24602-01-00 CAP ASSY (EXCEPT CALIF.)CAP ASSY (EXCEPT CALIF.)
-
134NK-24602-11-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
1421V-24500-11-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
153AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
1698507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
174X8-24512-00-00 ...O-RING...O-RING
-
183AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1990149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
2090202-05193-00 WASHER, PLATEWASHER, PLATE
-
211FK-2171L-00-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
224BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
234TR-24313-00-00 PIPE 3PIPE 3
-
2490464-09M31-00 CLAMPCLAMP
-
2590467-10038-00 CLIP, SCISSORCLIP, SCISSOR
-
261FK-24560-10-00 FILTER ASSYFILTER ASSY
-
271FK-24566-00-00 BRACKET, FILTERBRACKET, FILTER
-
284EB-24398-00-00 BAND 1BAND 1
-
2990467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
3090467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
314TR-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
3290464-15192-00 CLAMPCLAMP
-
334TR-2171A-00-00 COVER, TOPCOVER, TOP
-
3490149-05299-00 SCREWSCREW
-
3590179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
364TR-2414G-00-00 SEALSEAL
-
373XV-21717-00-00 DAMPERDAMPER
-
385SC-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
395SC-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
405SC-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
4190467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
425BN-24312-01-00 PIPE 2PIPE 2
-
435PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4490461-15139-00 CLAMPCLAMP
-
4598907-05010-00 SCREW, BINDSCREW, BIND
-
465BN-24314-01-00 PIPE 4PIPE 4
-
475BN-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
4890467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
492JU-24170-00-00 CANISTER ASSYCANISTER ASSY
-
505BN-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
515BN-24315-00-00 PIPE 5PIPE 5
-
5290464-15192-00 CLAMPCLAMP
-
5390467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
5495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
555BN-24313-00-00 PIPE 3PIPE 3
-
565BN-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
5790464-20191-00 CLAMPCLAMP
-
5890464-15192-00 CLAMPCLAMP
-
594TR-2413B-00-00 EMBLEMEMBLEM
-
604TR-14294-00-00 HOSEHOSE
-
6190467-12053-00 CLIP, SCISSORCLIP, SCISSOR
-
6290467-12124-00 CLIPCLIP
-
635KS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
644TR-2637G-00-00 HOLDER, WIREHOLDER, WIRE
-
654TR-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
661UA-82591-00-00 BANDBAND
-
671VJ-26333-00-00 NUTNUT
