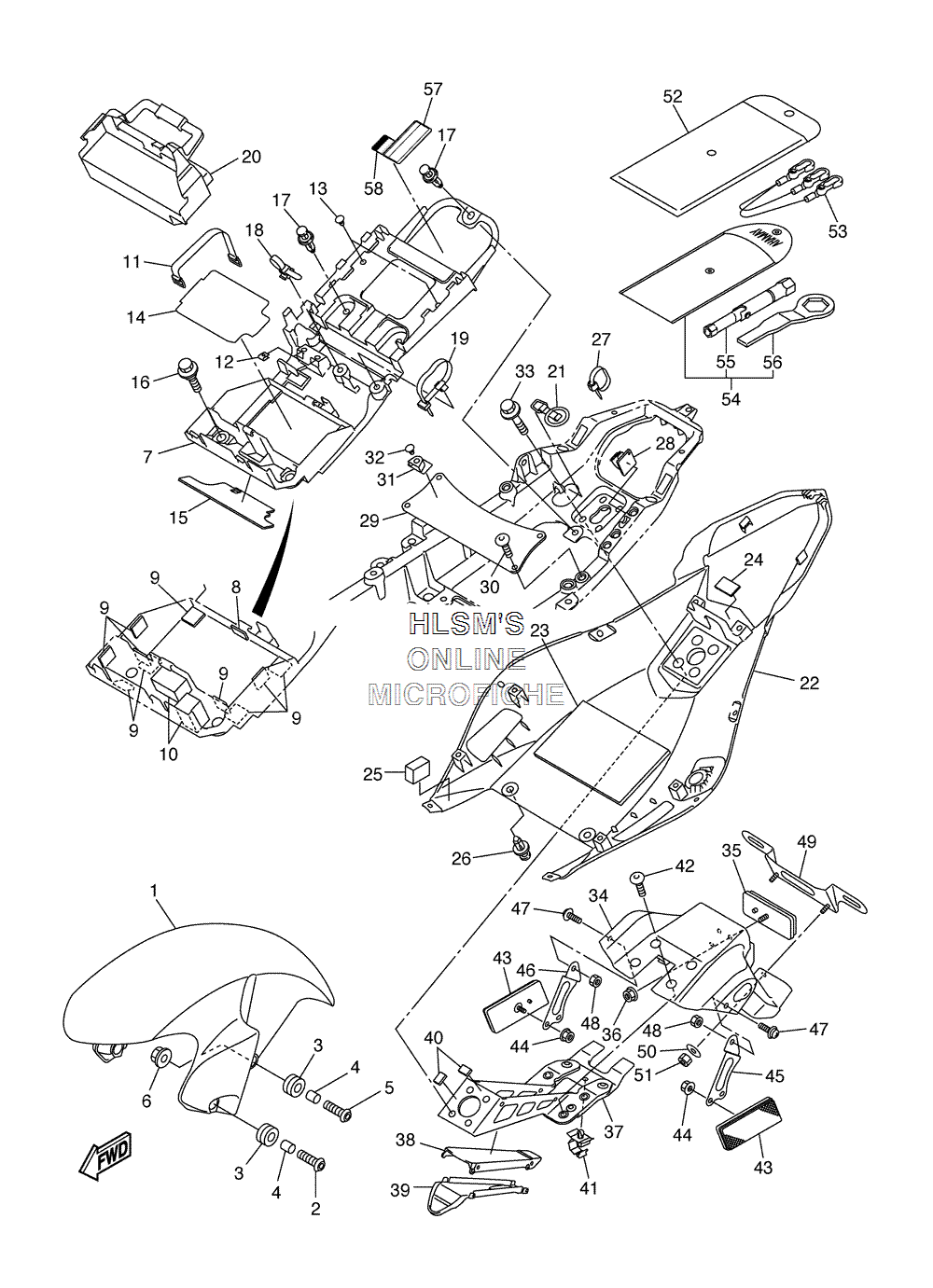

FENDER - FRONT / REAR для Yamaha YZF-R6 - 2006 года выпуска
-
№АртикулНазвание
-
12C0-21511-00-P0 FENDER, FRONT (DPBMC)FENDER, FRONT (DPBMC)
-
12C0-21511-00-P2 FENDER, FRONT (SMX)FENDER, FRONT (SMX)
-
290111-06043-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
390480-14003-00 GROMMETGROMMET
-
490387-06057-00 COLLARCOLLAR
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695707-06500-00 NUT, FLANGENUT, FLANGE
-
72C0-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
851Y-21639-00-00 DAMPER 2DAMPER 2
-
92C0-21649-00-00 DAMPERDAMPER
-
102C0-21541-00-00 DAMPER 1DAMPER 1
-
11133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1290183-04039-00 NUT, SPRINGNUT, SPRING
-
1390338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
142C0-821A1-00-00 SEAT BATTERY ASSY 1SEAT BATTERY ASSY 1
-
152C0-821A2-00-00 SEAT BATTERY ASSY 2SEAT BATTERY ASSY 2
-
1690109-06171-00 BOLTBOLT
-
1790269-07010-00 RIVETRIVET
-
1890464-12089-00 CLAMPCLAMP
-
1990464-44002-00 CLAMPCLAMP
-
202C0-82160-00-00 BATTERY COVER ASSYBATTERY COVER ASSY
-
212C0-21376-00-00 BAND, TOOLBAND, TOOL
-
222C0-21611-00-P0 FENDER, REAR (DPBMC)FENDER, REAR (DPBMC)
-
222C0-21611-00-P2 FENDER, REAR (SMX)FENDER, REAR (SMX)
-
232C0-21639-00-00 DAMPER 2DAMPER 2
-
245GM-27445-00-00 PLATE 1PLATE 1
-
252C0-2162G-00-00 PLATE 1PLATE 1
-
2690269-07010-00 RIVETRIVET
-
2790464-13073-00 CLAMPCLAMP
-
2890464-13004-00 CLAMPCLAMP
-
292C0-21131-00-00 BRACKETBRACKET
-
3092017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
315SL-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
3290338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
3390119-06138-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
342C0-21629-10-00 GUARD, MUDGUARD, MUD
-
353Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3695607-05200-00 NUT, U FLANGENUT, U FLANGE
-
372C0-21640-00-00 REAR STAY COMP.REAR STAY COMP.
-
382C0-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
392C0-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
402C0-21669-00-00 SEALSEAL
-
4190464-14228-00 CLAMPCLAMP
-
4290109-06182-00 BOLTBOLT
-
433Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4495707-05500-00 NUT, FLANGENUT, FLANGE
-
452C0-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
462C0-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
4790159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4895607-06100-00 NUT, UNUT, U
-
495MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5090201-06057-00 WASHER, PLATEWASHER, PLATE
-
5195607-06100-00 NUT, UNUT, U
-
522C0-28100-00-00 TOOL KITTOOL KIT
-
532C0-21370-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
542C0-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
554XV-2814F-00-00 ...BOX, SPARK PLUG...BOX, SPARK PLUG
-
564FM-28135-00-00 ...SPANNER, SPECIAL...SPANNER, SPECIAL
-
573JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
583TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
