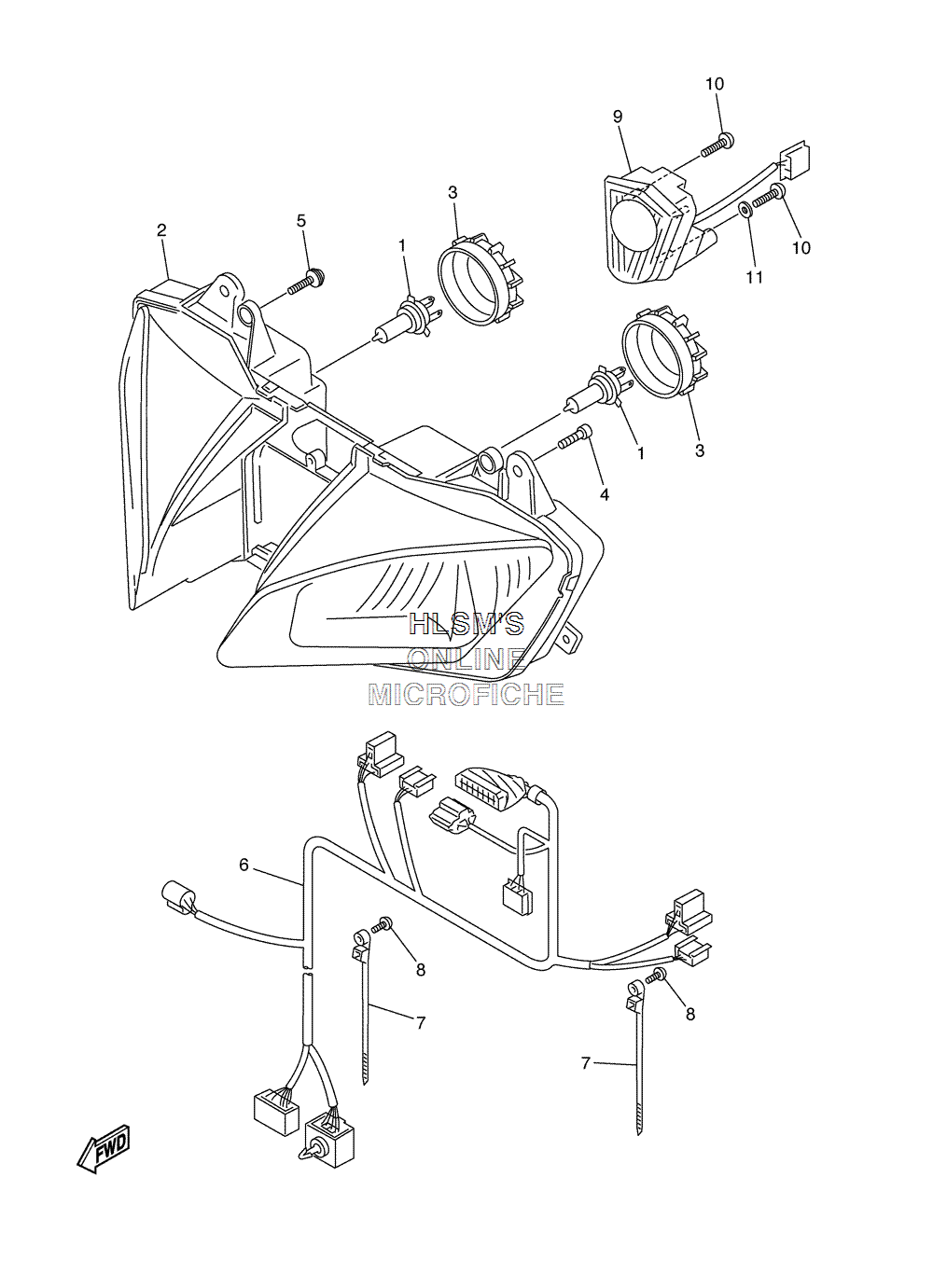

HEADLIGHT для Yamaha YZF-R6 - 2006 года выпуска
-
№АртикулНазвание
-
14SV-84314-00-00 BULB (12V-55W) (H7)HALOGENBULB (12V-55W) (H7)HALOGEN
-
22C0-84303-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
35SL-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
590160-05006-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
62C0-84359-10-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
790464-47001-00 CLAMPCLAMP
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
92C0-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1097707-40016-00 SCREW, TAPPINGSCREW, TAPPING
-
1190201-047A2-00 WASHER, PLATEWASHER, PLATE
