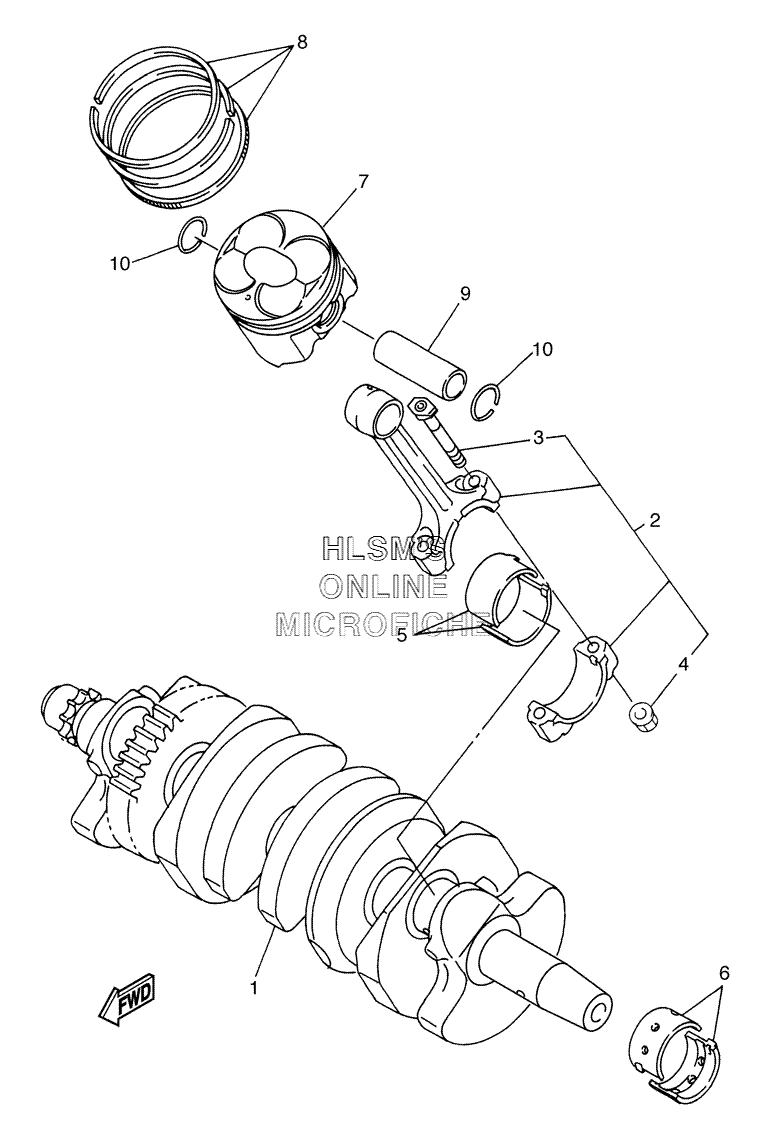

CRANKSHAFT - PISTON для Yamaha YZF-R6SP 50th ANNIVERSARY EDITION - 2006 года выпуска
-
№АртикулНазвание
-
12C0-11411-00-00 CRANKSHAFTCRANKSHAFT
-
22C0-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
32C0-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-07001-00 ...NUT...NUT
-
52C0-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
52C0-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
52C0-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
52C0-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
62C0-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
62C0-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
62C0-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
62C0-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
-
62C0-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
72C0-11631-00-00 PISTON (STD)PISTON (STD)
-
82C0-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
92C0-11633-00-00 PIN, PISTONPIN, PISTON
-
1093450-16153-00 CIRCLIPCIRCLIP
