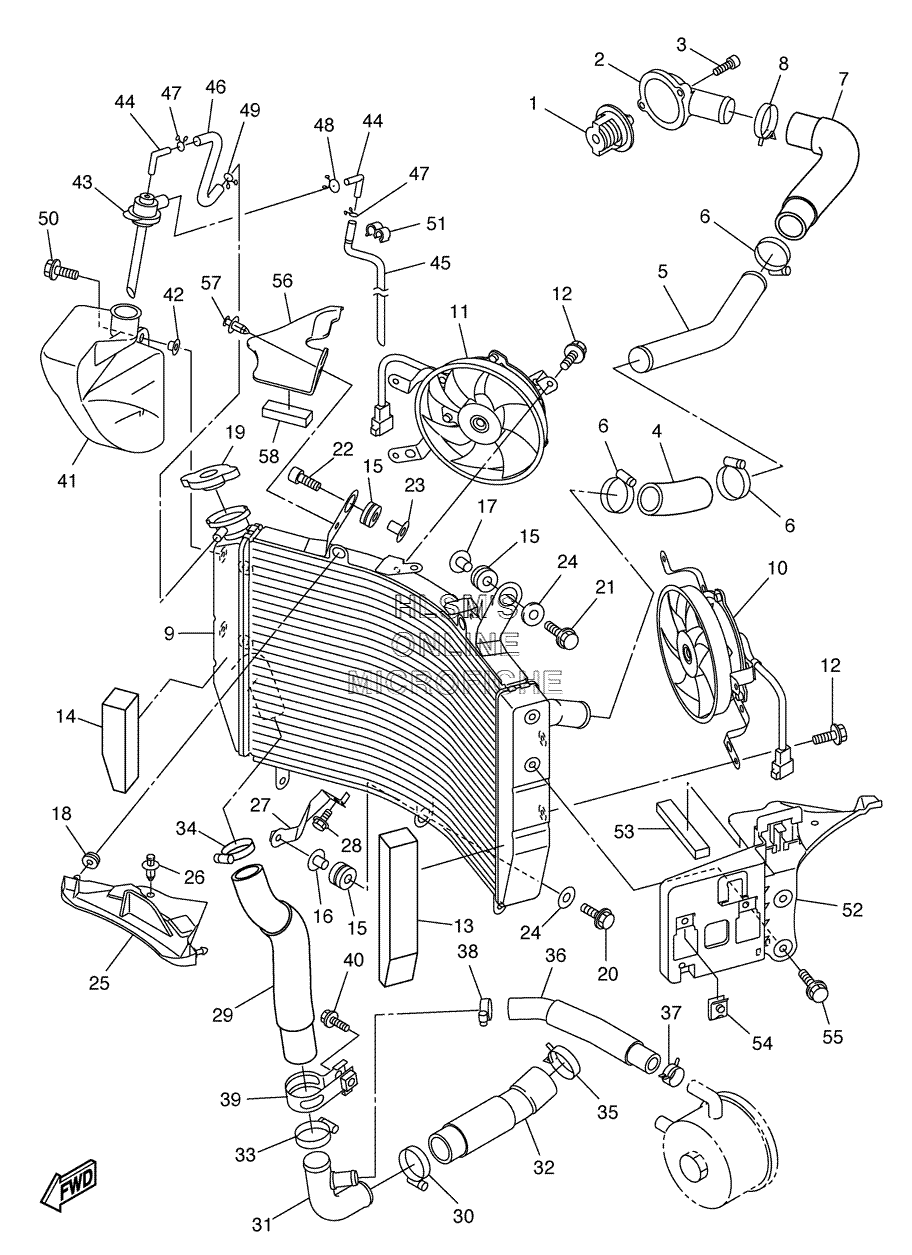

RADIATOR для Yamaha YZF-R6SP 50th ANNIVERSARY EDITION - 2006 года выпуска
-
№АртикулНазвание
-
15SL-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
22C0-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
391312-06020-00 BOLTBOLT
-
42C0-12578-00-00 HOSE 3HOSE 3
-
52C0-12481-00-00 PIPE 1PIPE 1
-
690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
72C0-12552-00-00 HOSE 8HOSE 8
-
890467-29174-00 CLIPCLIP
-
92C0-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
102C0-12405-00-00 BLOWER ASSYBLOWER ASSY
-
112C0-12405-10-00 BLOWER ASSYBLOWER ASSY
-
125GJ-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
132C0-12659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
142C0-12668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
1590480-15363-00 GROMMETGROMMET
-
1690387-07391-00 COLLARCOLLAR
-
1790387-0614M-00 COLLARCOLLAR
-
1890480-11005-00 GROMMETGROMMET
-
195SL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
2090105-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2195807-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2291317-06035-00 BOLTBOLT
-
2390387-0614M-00 COLLARCOLLAR
-
2490201-06071-00 WASHER, PLATEWASHER, PLATE
-
252C0-12535-00-00 PLATEPLATE
-
2690269-07007-00 RIVETRIVET
-
272C0-1244E-00-00 BRACKET 1BRACKET 1
-
2895827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
292C0-12579-00-00 HOSE 4HOSE 4
-
3090450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
312C0-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
322C0-12551-00-00 HOSE 7HOSE 7
-
3390450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3590467-310A0-00 CLIPCLIP
-
362C0-12589-00-00 HOSE 6HOSE 6
-
3790467-200A0-00 CLIPCLIP
-
3890450-22017-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
392C0-12491-00-00 CLAMP 1CLAMP 1
-
4095027-10020-00 BOLT, FLANGEBOLT, FLANGE
-
412C0-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4290387-06681-00 COLLARCOLLAR
-
432C0-21875-00-00 CAPCAP
-
4426H-21828-00-00 ELBOWELBOW
-
452C0-21816-00-00 PIPE 1PIPE 1
-
462C0-1243F-00-00 HOSE,3HOSE,3
-
4790467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
4890467-10M04-00 CLIPCLIP
-
4990467-08003-00 CLIP, SCISSORCLIP, SCISSOR
-
5095807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5190464-10M38-00 CLAMPCLAMP
-
522C0-2836H-00-00 BRACKET 5BRACKET 5
-
532C0-2139X-00-00 DAMPERDAMPER
-
5490183-06069-00 NUT, SPRINGNUT, SPRING
-
5595807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
562C0-1246H-00-00 COVER 5COVER 5
-
5790269-06083-00 RIVETRIVET
-
582C0-2139U-00-00 DAMPER 2DAMPER 2
