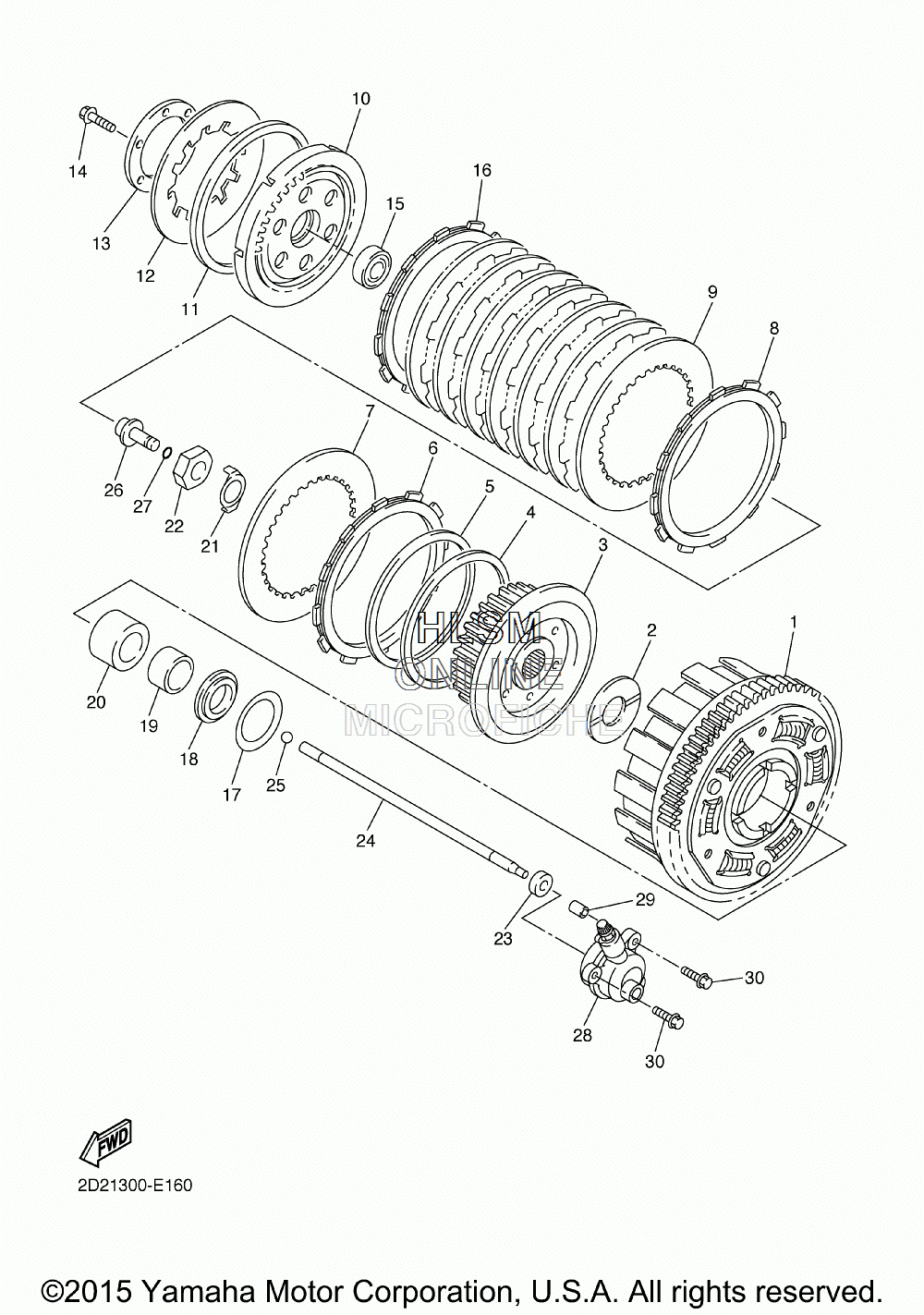

CLUTCH для Yamaha FJR1300AE (2D2B) [FJR13AEWC] - 2007 года выпуска
-
№АртикулНазвание
-
15JW-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
25JW-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
33P6-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
42D2-16384-10-00 PLATE, SEAT (T=1.6) (OPT)PLATE, SEAT (T=1.6) (OPT)
-
42D2-16384-00-00 PLATE, SEAT (T=1.7) (OPT)PLATE, SEAT (T=1.7) (OPT)
-
42D2-16384-20-00 PLATE, SEAT (T=1.8) (OPT)PLATE, SEAT (T=1.8) (OPT)
-
53P6-16383-00-00 SPRING, CLUTCH BOSSSPRING, CLUTCH BOSS
-
64XV-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
72H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
85JW-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
92H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
104XV-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1136Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
125JW-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
131TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1593306-00304-00 BEARINGBEARING
-
16341-16321-13-00 PLATE, FRICTIONPLATE, FRICTION
-
173P6-16587-00-00 SPRING, ABSORBERSPRING, ABSORBER
-
183P6-16183-00-00 SPACER 3SPACER 3
-
1990387-28002-00 COLLARCOLLAR
-
205JW-16181-00-00 SPACER 1SPACER 1
-
2190215-25218-00 WASHER, LOCKWASHER, LOCK
-
2290170-20323-00 NUTNUT
-
2393109-08061-00 OIL SEAL SDO-TYPEOIL SEAL SDO-TYPE
-
243P6-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2593511-32017-00 BALLBALL
-
264KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
2793210-06422-00 O-RINGO-RING
-
282D2-16381-10-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
2999530-08012-00 PIN, DOWELPIN, DOWEL
-
3090109-06015-00 BOLTBOLT
