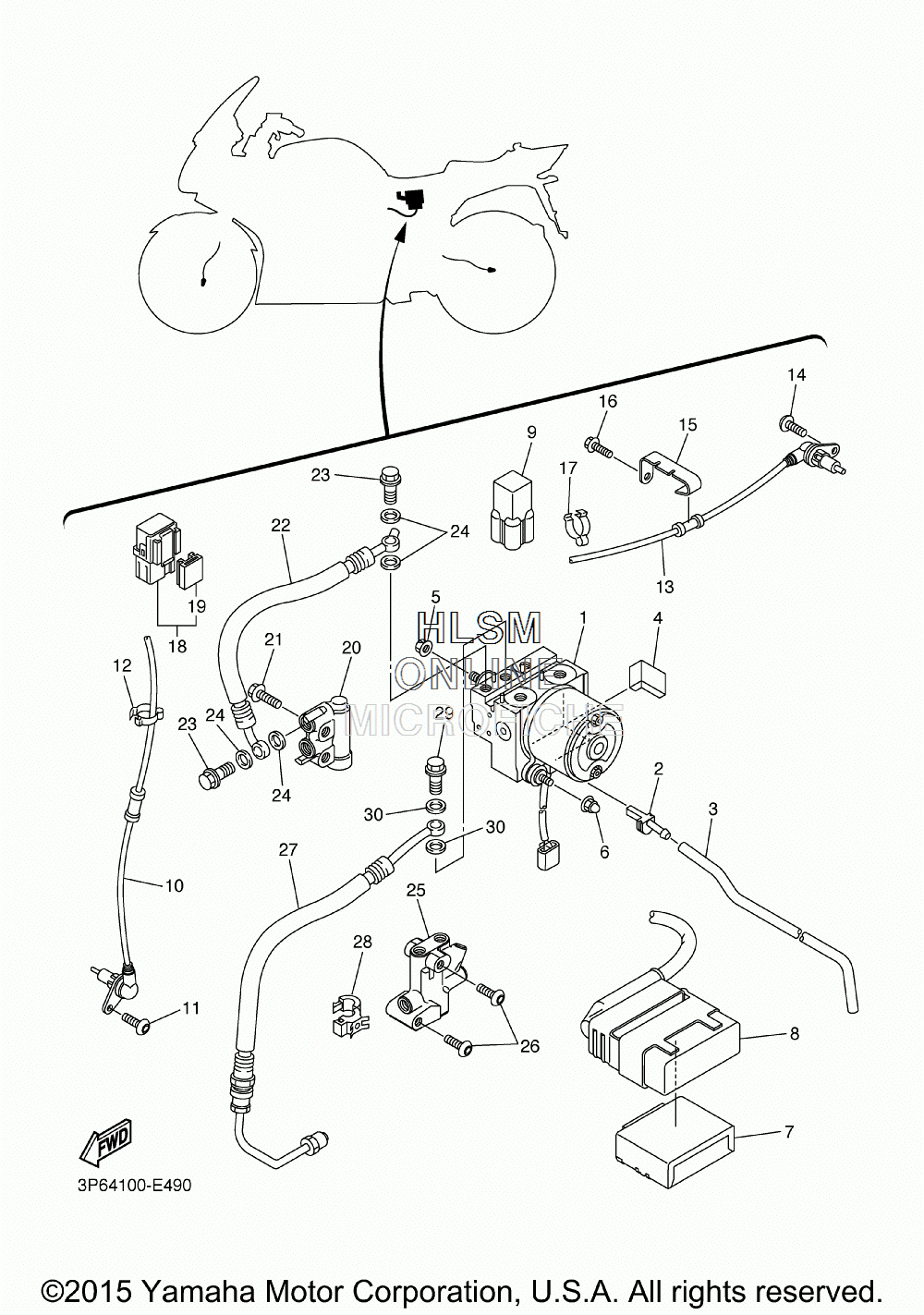

ELECTRICAL 3 для Yamaha FJR1300AE (2D2B) [FJR13AEWC] - 2007 года выпуска
-
№АртикулНазвание
-
13P6-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
25CG-24196-00-00 PLUG, DRAINPLUG, DRAIN
-
35VS-85828-00-00 HOSE, DRAINHOSE, DRAIN
-
42AL-84553-00-00 DAMPERDAMPER
-
595702-08500-00 NUT, FLANGENUT, FLANGE
-
690176-08026-00 NUT, CROWNNUT, CROWN
-
73P6-85940-01-00 ELECTRONIC CONTROL UNIT ASSYELECTRONIC CONTROL UNIT ASSY
-
82D2-85950-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
93YA-82378-00-00 CONNECTORCONNECTOR
-
103P6-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
1192014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290464-12013-00 CLAMPCLAMP
-
133P6-85980-09-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1492014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
153P6-86159-00-00 HOLDER, WIREHOLDER, WIRE
-
1690105-05014-00 BOLT, FLANGEBOLT, FLANGE
-
1790464-12013-00 CLAMPCLAMP
-
185EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
195EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
203P6-25940-00-00 METERING VALVE ASSYMETERING VALVE ASSY
-
2195807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
223P6-2582L-00-00 HOSE, BRAKE 8HOSE, BRAKE 8
-
2390401-10020-00 BOLT, UNIONBOLT, UNION
-
2490430-10005-00 GASKETGASKET
-
253P6-25884-00-00 VALVE, PROPORTIONINGVALVE, PROPORTIONING
-
2692017-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
273P6-2584E-00-00 BRAKE HOSE ASSY 5BRAKE HOSE ASSY 5
-
2890464-08189-00 CLAMPCLAMP
-
2990401-10020-00 BOLT, UNIONBOLT, UNION
-
3090430-10005-00 GASKETGASKET
