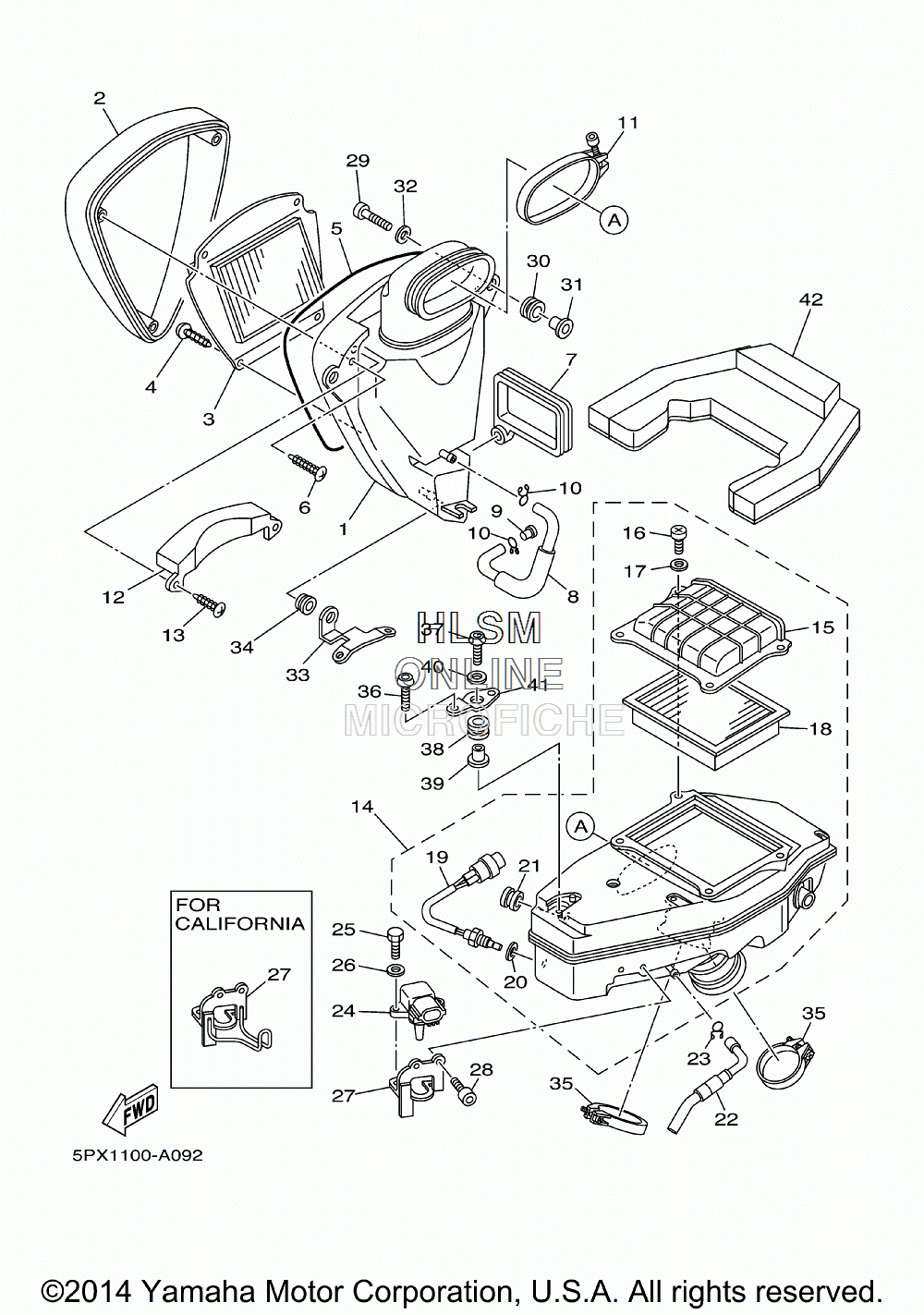

AIR CLEANER W/ INTAKE для Yamaha ROAD STAR MIDNIGHT WARRIOR (2D88) [XV17PCMWC] - 2007 года выпуска
-
№АртикулНазвание
-
15PX-W1441-00-00 AIR CLEANER CASE COMP.AIR CLEANER CASE COMP.
-
25PX-14421-10-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
35PX-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
497707-50516-00 SCREW, TAPPINGSCREW, TAPPING
-
55PX-14452-00-00 SEALSEAL
-
697707-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
75PX-14437-00-00 DUCTDUCT
-
85PX-14148-00-00 PIPEPIPE
-
990338-08174-00 PLUGPLUG
-
1090467-11106-00 CLIPCLIP
-
115PX-14455-00-00 BANDBAND
-
125PX-1441A-00-00 COVER, CLEANER CASE 1COVER, CLEANER CASE 1
-
1397707-50010-00 SCREW, TAPPINGSCREW, TAPPING
-
145PX-14440-01-00 SILENCER ASSY, INTAKESILENCER ASSY, INTAKE
-
155PX-14412-00-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
1698507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1792907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
185PX-14461-00-00 ...ELEMENT, AIR CLEANER 2...ELEMENT, AIR CLEANER 2
-
195PX-85790-00-00 ...THERMOSENSOR ASSY...THERMOSENSOR ASSY
-
2090430-12202-00 ...GASKET...GASKET
-
2190480-16001-00 ...GROMMET...GROMMET
-
225PX-1443E-01-00 PIPE, DRAINPIPE, DRAIN
-
2390467-09103-00 CLIPCLIP
-
245JW-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2597007-05016-00 BOLTBOLT
-
2692907-05600-00 WASHER, PLATEWASHER, PLATE
-
275PX-14413-00-00 STAY (EXCEPT CALIF) (2D87)STAY (EXCEPT CALIF) (2D87)
-
275PX-14413-10-00 STAY (CALIF ONLY) (2D88)STAY (CALIF ONLY) (2D88)
-
2891317-05010-00 BOLTBOLT
-
2990110-06240-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090480-14023-00 GROMMETGROMMET
-
3190387-07391-00 COLLARCOLLAR
-
3290209-06250-00 WASHERWASHER
-
335PX-14498-00-00 STAY 1STAY 1
-
3490480-13398-00 GROMMETGROMMET
-
3590450-52001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3692017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3792017-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890480-14023-00 GROMMETGROMMET
-
3990387-07391-00 COLLARCOLLAR
-
4090209-06250-00 WASHERWASHER
-
415PX-14414-01-00 STAY 2STAY 2
-
425PX-1449E-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
