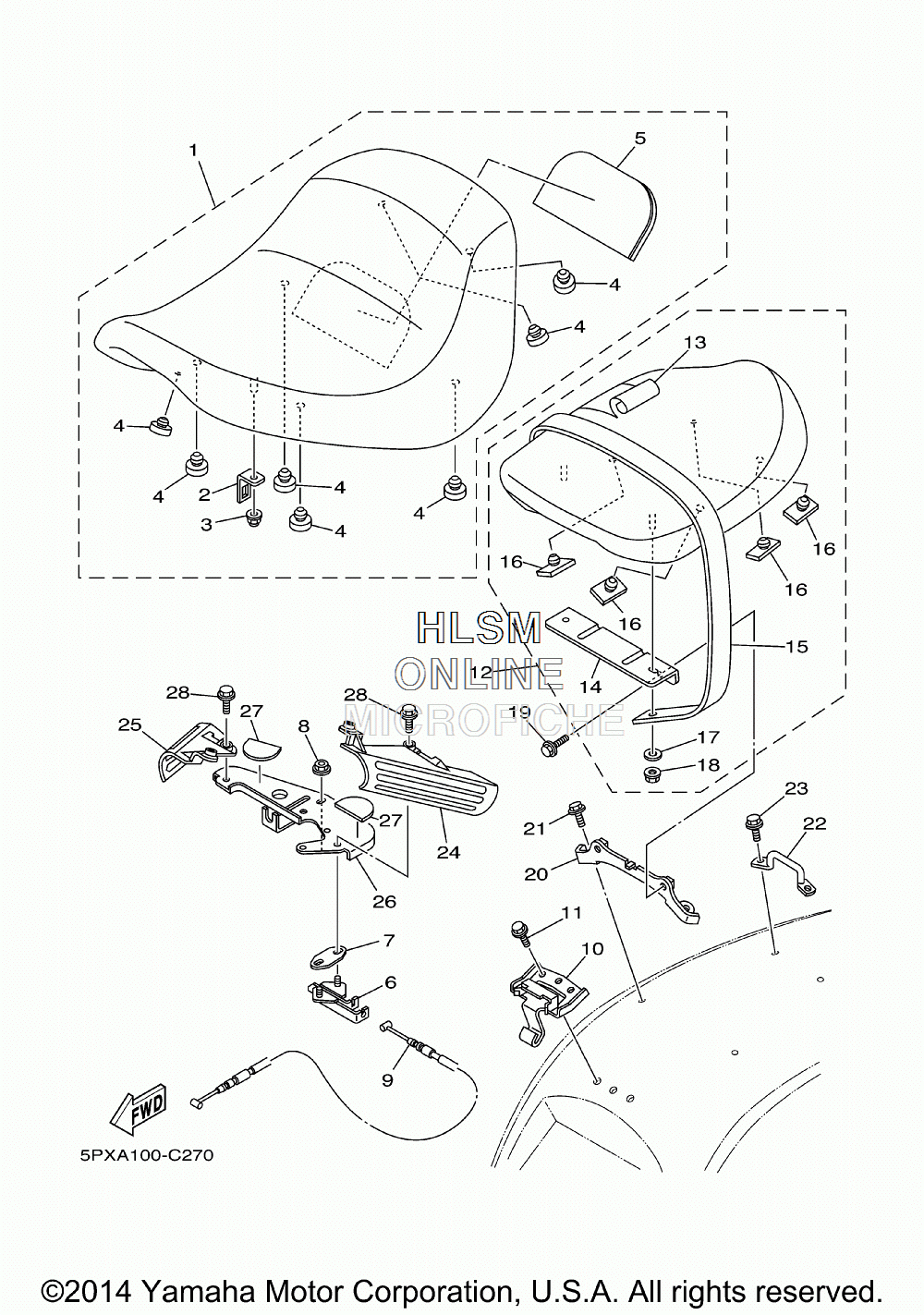

SEAT для Yamaha ROAD STAR MIDNIGHT WARRIOR (2D88) [XV17PCMWC] - 2007 года выпуска
-
№АртикулНазвание
-
15PX-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25PX-24719-00-00 ...STAY, REAR...STAY, REAR
-
395607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
55PX-24723-01-00 ...DAMPER, SEAT...DAMPER, SEAT
-
64BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
74BP-24792-00-00 PLATEPLATE
-
895707-06500-00 NUT, FLANGENUT, FLANGE
-
95PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
105PX-2475N-10-00 BRACKETBRACKET
-
1195027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
125PX-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
135PX-2470F-20-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
145PX-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
155PX-24734-00-00 ...BAND, SEAT...BAND, SEAT
-
16509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
1790201-06380-00 ...WASHER PLAIN...WASHER PLAIN
-
1895607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
1995027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
205PX-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
2195027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
225PX-2475R-00-00 BRACKET 6BRACKET 6
-
2395027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
245PX-2476U-00-00 PROTECTOR, 1PROTECTOR, 1
-
255PX-2476V-00-00 PROTECTOR, 2PROTECTOR, 2
-
265PX-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
275PX-21735-00-00 SEAL 2SEAL 2
-
2895817-08020-00 BOLT, FLANGEBOLT, FLANGE
