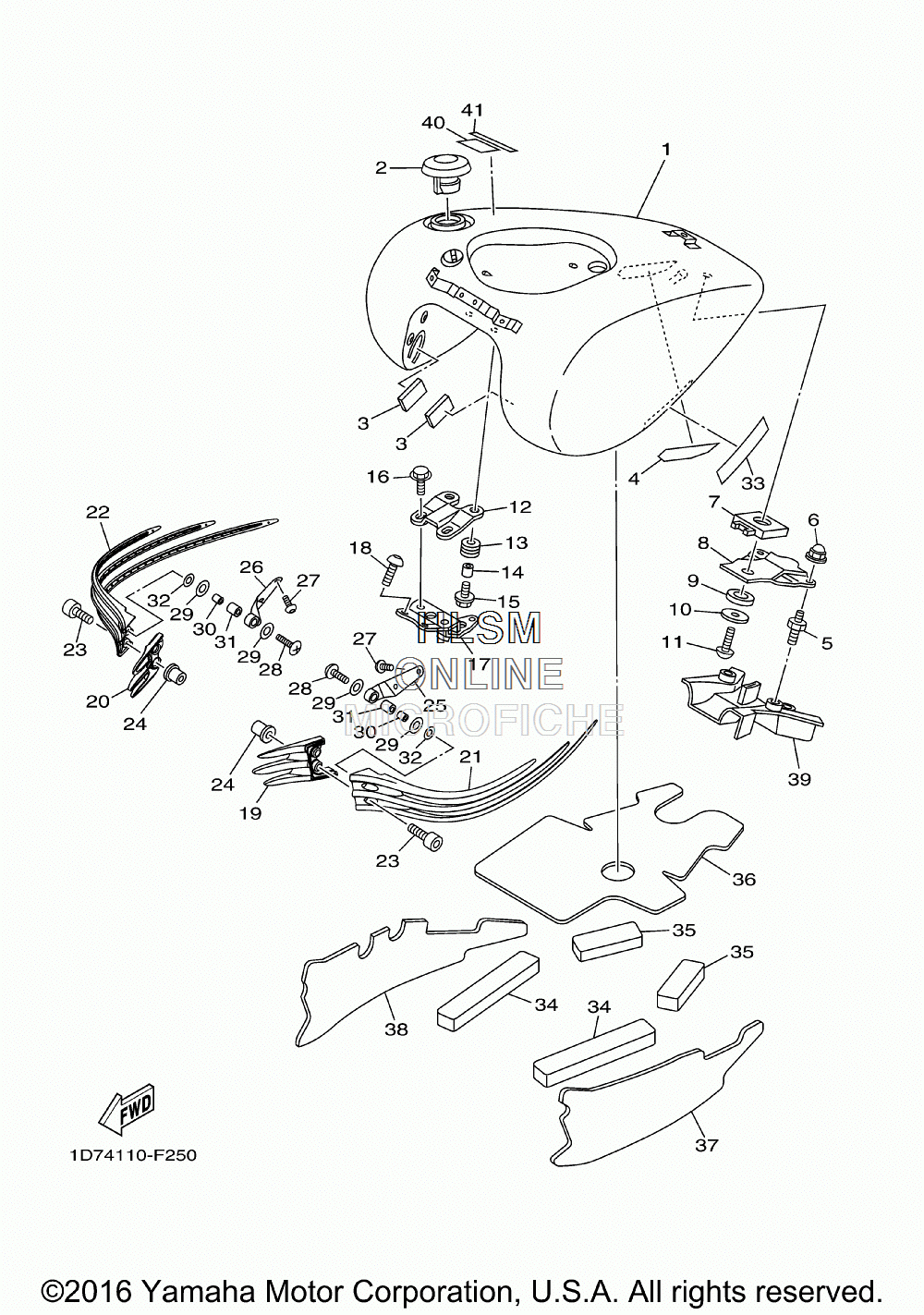

FUEL TANK для Yamaha ROADLINER MIDNIGHT (4D54/4D55) [XV19MW/C] - 2007 года выпуска
-
№АртикулНазвание
-
11D7-YK241-00-P1 FUEL TANK COMP. (FOR SMX)FUEL TANK COMP. (FOR SMX)
-
24NK-24602-11-00 CAP ASSYCAP ASSY
-
31FK-21746-00-00 DAMPERDAMPER
-
41D7-2413X-00-00 PLATEPLATE
-
55PX-24176-01-00 BOLT 1BOLT 1
-
690176-06055-00 NUT, CROWNNUT, CROWN
-
71D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
81D7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
94TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1090201-060S9-00 WASHER, PLATEWASHER, PLATE
-
1192017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
121D7-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1390480-15483-00 GROMMETGROMMET
-
1490387-06054-00 COLLARCOLLAR
-
1590119-06062-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1695807-08012-00 BOLT, FLANGEBOLT, FLANGE
-
171D7-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1892017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
191D7-24129-00-00 COVER, SIDE 1COVER, SIDE 1
-
201D7-24139-00-00 COVER, SIDE 2COVER, SIDE 2
-
211D7-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
221D7-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
2390110-05037-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490179-05523-00 NUTNUT
-
251D7-24115-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
261D7-24116-00-00 STAY, FUEL TANK 2STAY, FUEL TANK 2
-
2792012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2897702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
2990201-06079-00 WASHER, PLATEWASHER, PLATE
-
3090387-09009-00 COLLARCOLLAR
-
3190386-08003-00 BUSHBUSH
-
3290202-04182-00 WASHER, PLATEWASHER, PLATE
-
333TU-28344-00-00 TAPETAPE
-
341D7-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
351D7-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
361D7-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
371D7-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
381D7-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
391D7-24217-00-00 COVERCOVER
-
405GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
415PW-2415E-11-00 LABEL, CAUTION (ENGLISH)LABEL, CAUTION (ENGLISH)
