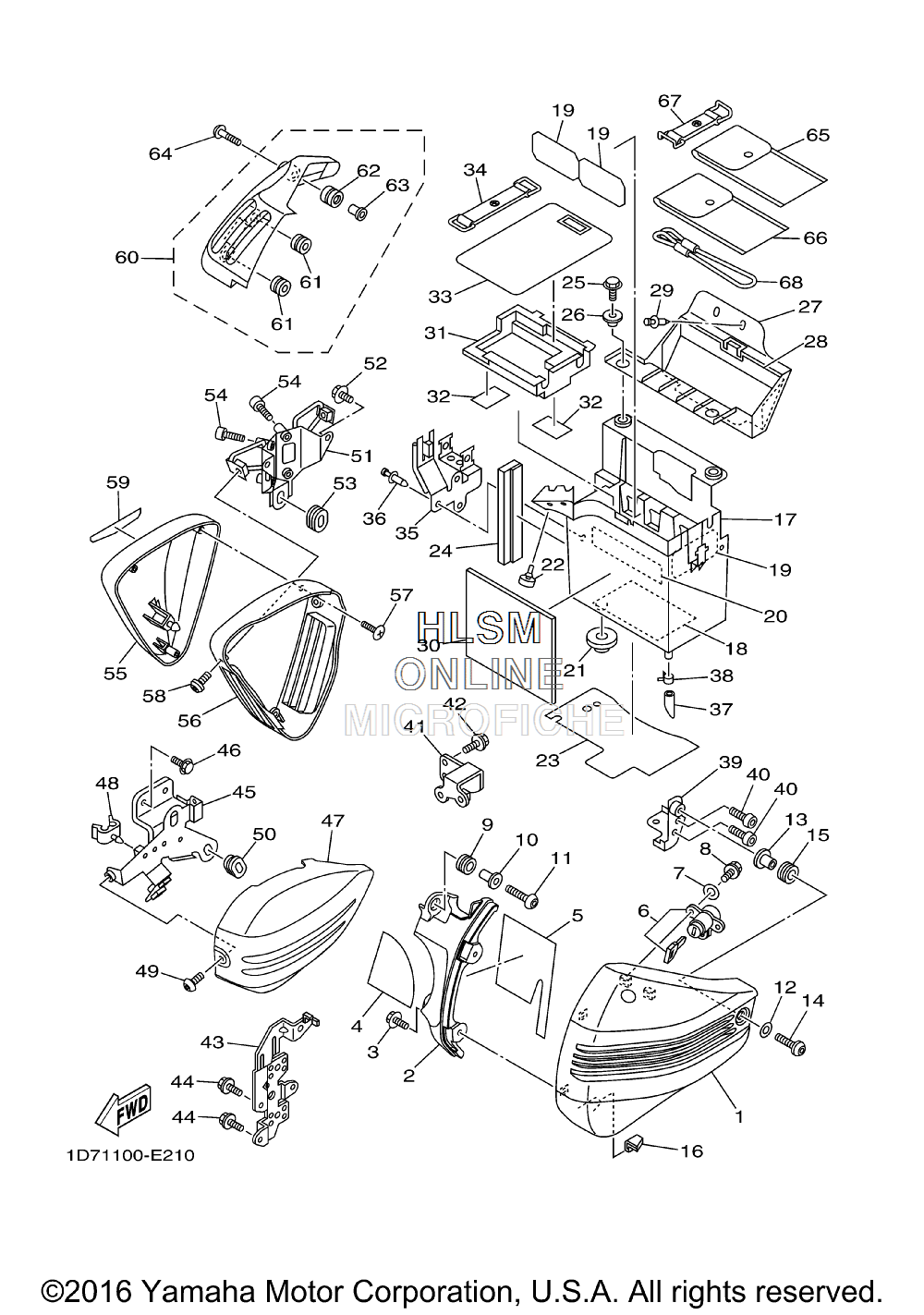

SIDE COVER для Yamaha ROADLINER MIDNIGHT (4D54/4D55) [XV19MW/C] - 2007 года выпуска
-
№АртикулНазвание
-
11D7-21711-00-P1 COVER, SIDE 1 (FOR SMX)COVER, SIDE 1 (FOR SMX)
-
21D7-2117X-00-00 COVER 9COVER 9
-
390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
41D7-21735-00-00 SEAL 2SEAL 2
-
51D7-21746-00-00 DAMPERDAMPER
-
65PX-W2470-00-00 ROTOR SETROTOR SET
-
790201-06034-00 WASHER, PLATEWASHER, PLATE
-
890105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
990480-14323-00 GROMMETGROMMET
-
1090387-066Y6-00 COLLARCOLLAR
-
1192014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290201-06M01-00 WASHER, PLATEWASHER, PLATE
-
1390560-06201-00 SPACERSPACER
-
1490149-06023-00 SCREWSCREW
-
1590480-12007-00 GROMMETGROMMET
-
165PX-2171H-00-00 GUIDEGUIDE
-
171D7-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
185PX-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
195PX-21652-00-00 PROTECTORPROTECTOR
-
205PX-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2190480-20384-00 GROMMETGROMMET
-
221D7-2174X-00-00 DAMPERDAMPER
-
231D7-2177N-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
241D7-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2690387-06109-00 COLLARCOLLAR
-
271D7-28173-00-00 BOX, TOOLBOX, TOOL
-
285PX-2174Y-01-00 DAMPERDAMPER
-
2990269-07077-00 RIVETRIVET
-
301D7-21732-00-00 SEAL 1SEAL 1
-
315PX-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
325JW-2139X-00-00 DAMPERDAMPER
-
335VN-8412H-00-00 STAY SETTINGSTAY SETTING
-
34120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
351D7-2172K-00-00 BRACKET 1BRACKET 1
-
3690269-07077-00 RIVETRIVET
-
3790445-11027-00 HOSEHOSE
-
3890467-11090-00 CLIPCLIP
-
391D7-2175T-00-00 BRACKET 1BRACKET 1
-
4092017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
411D7-2172N-00-00 BRACKET 4BRACKET 4
-
4295807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
435PX-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
4495027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
451D7-2175V-00-00 BRACKET 3BRACKET 3
-
4695807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
471D7-21731-10-00 COVER, SIDE 3COVER, SIDE 3
-
4890464-09130-00 CLAMPCLAMP
-
4990149-05299-00 SCREWSCREW
-
5090480-01558-00 GROMMETGROMMET
-
511D7-2175W-00-00 BRACKET 4BRACKET 4
-
5295022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5390480-01558-00 GROMMETGROMMET
-
5490110-06213-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
551D7-21741-10-00 COVER, SIDE 4COVER, SIDE 4
-
561D7-2171D-00-00 BODYBODY
-
5790167-05077-00 SCREW, TAPPINGSCREW, TAPPING
-
5890149-06022-00 SCREWSCREW
-
591D7-2173B-00-00 EMBLEM 3DEMBLEM 3D
-
601D7-17471-00-P3 PLATE, COVER (FOR SMX)PLATE, COVER (FOR SMX)
-
6190480-13007-00 ...GROMMET...GROMMET
-
6290480-13006-00 ...GROMMET...GROMMET
-
6390387-07007-00 ...COLLAR...COLLAR
-
6490111-06039-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
651D7-28100-00-00 TOOL KITTOOL KIT
-
661D7-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
67116-82131-00-00 BAND, BATTERYBAND, BATTERY
-
684HC-21398-00-00 HANGER, HELMETHANGER, HELMET
