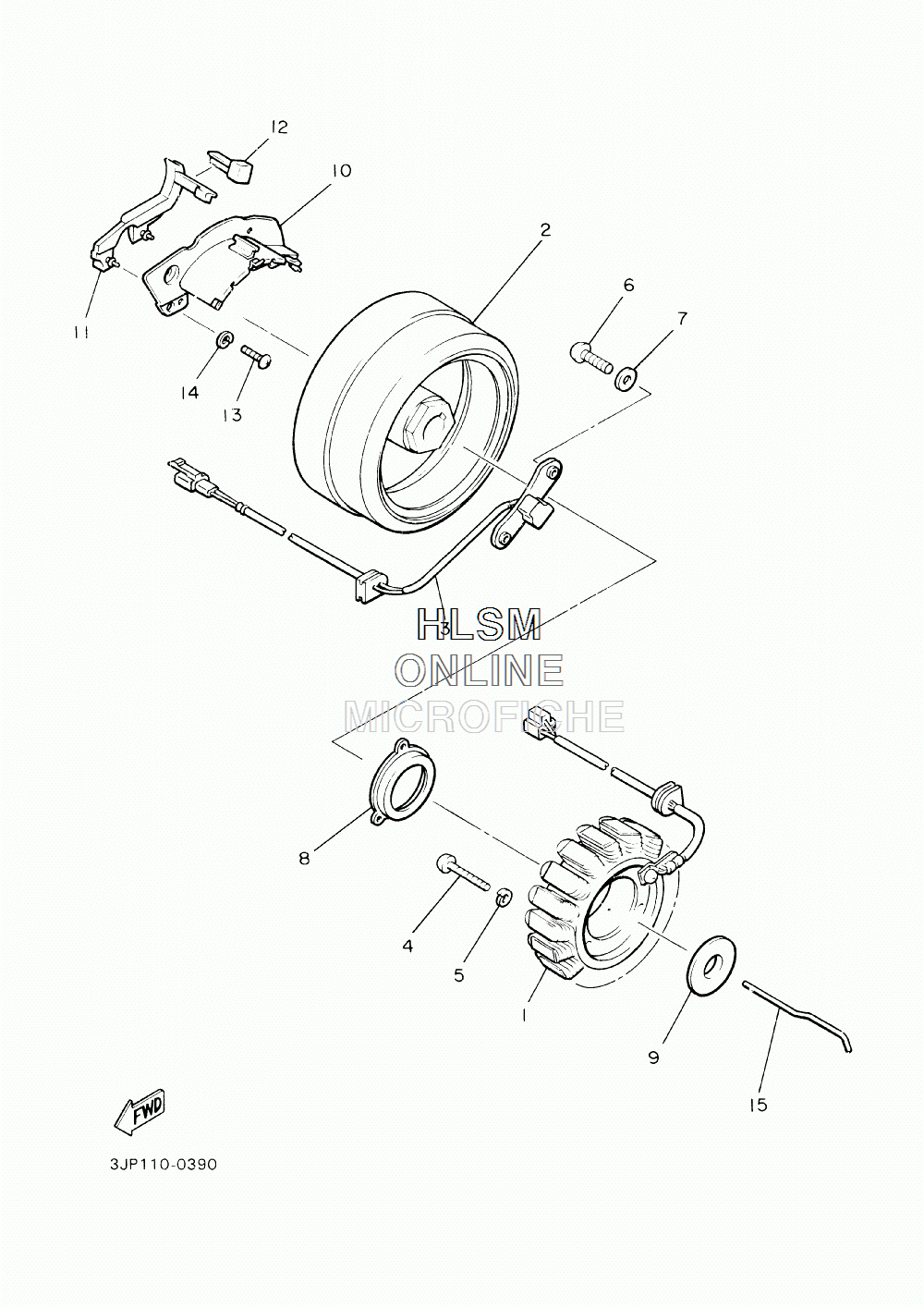

GENERATOR для Yamaha V-MAX (4C44) [VMX12W1C] - 2007 года выпуска
-
№АртикулНазвание
-
13UF-81410-10-00 STATOR ASSYSTATOR ASSY
-
23UF-81450-10-00 ROTOR ASSYROTOR ASSY
-
33UF-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
498507-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
790201-06674-00 WASHER, PLATEWASHER, PLATE
-
859J-15113-00-00 PLATEPLATE
-
959J-15191-00-00 PLATEPLATE
-
101FK-15358-00-00 SEPARATOR, OILSEPARATOR, OIL
-
111FK-15379-00-00 SEAL, CRANKCASESEAL, CRANKCASE
-
121FK-15494-00-00 SEAL, PROTECTORSEAL, PROTECTOR
-
1398507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
1559J-11455-00-00 SHAFT 1SHAFT 1
