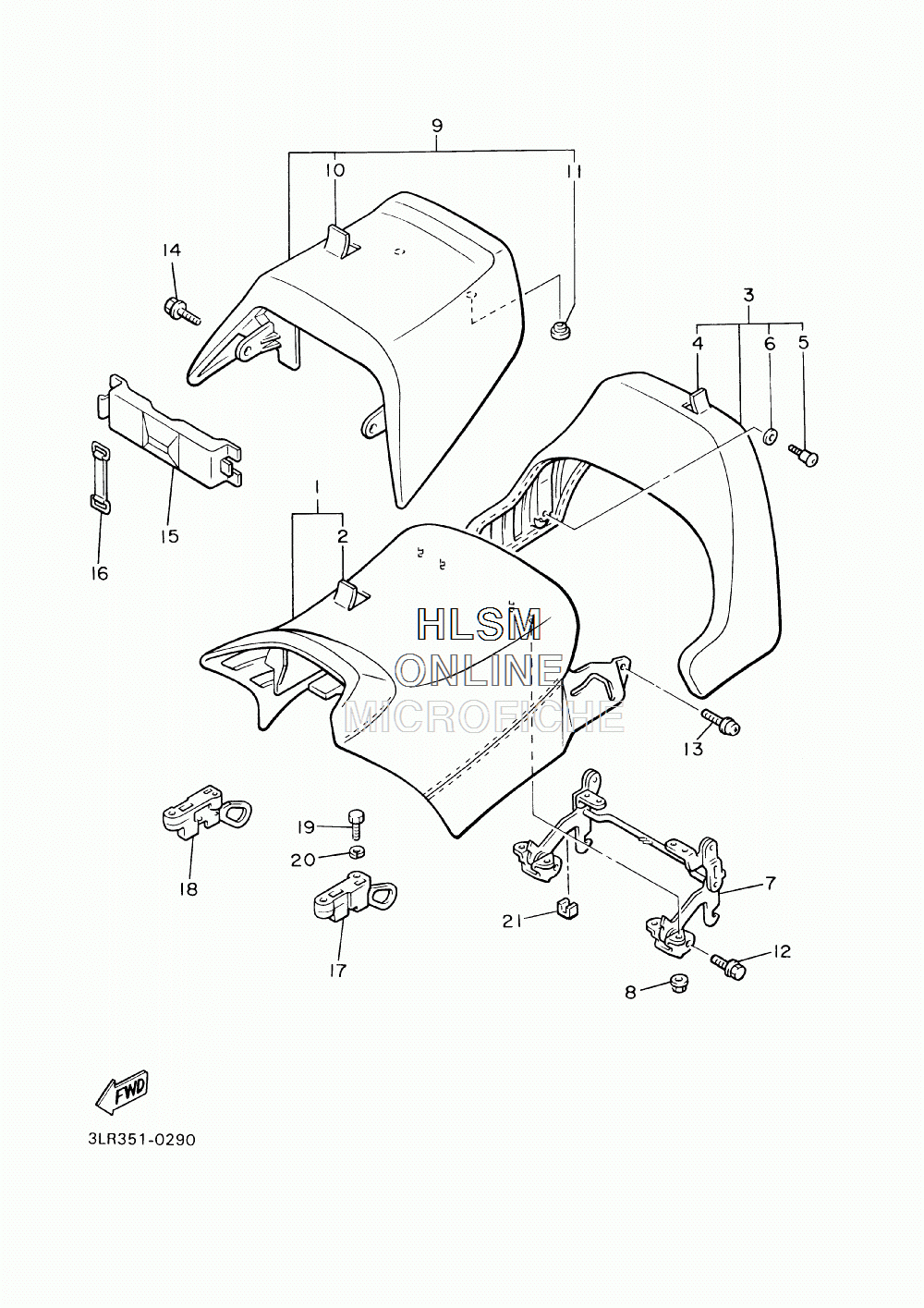

SEAT для Yamaha V-MAX (4C44) [VMX12W1C] - 2007 года выпуска
-
№АртикулНазвание
-
15GK-24771-00-00 SEAT COMP.SEAT COMP.
-
25GK-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35GK-24790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
45GK-2470F-10-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
51FK-2476F-00-00 ...PIN, GUIDE...PIN, GUIDE
-
61FK-24736-00-00 ...WASHER...WASHER
-
71FK-24772-00-00 HINGE ASS'YHINGE ASS'Y
-
895707-06500-00 NUT, FLANGENUT, FLANGE
-
95GK-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
105GK-2470F-20-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
1122W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1390159-06033-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1490119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
151FK-2473T-00-00 LID 1LID 1
-
165H9-21376-00-00 BAND, TOOLBAND, TOOL
-
171FK-24760-00-00 SEAT LEVER ASSYSEAT LEVER ASSY
-
181FK-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1997007-06012-00 BOLTBOLT
-
2092907-06600-00 WASHER, PLATEWASHER, PLATE
-
213UF-24737-00-00 DAMPER, SEATDAMPER, SEAT
