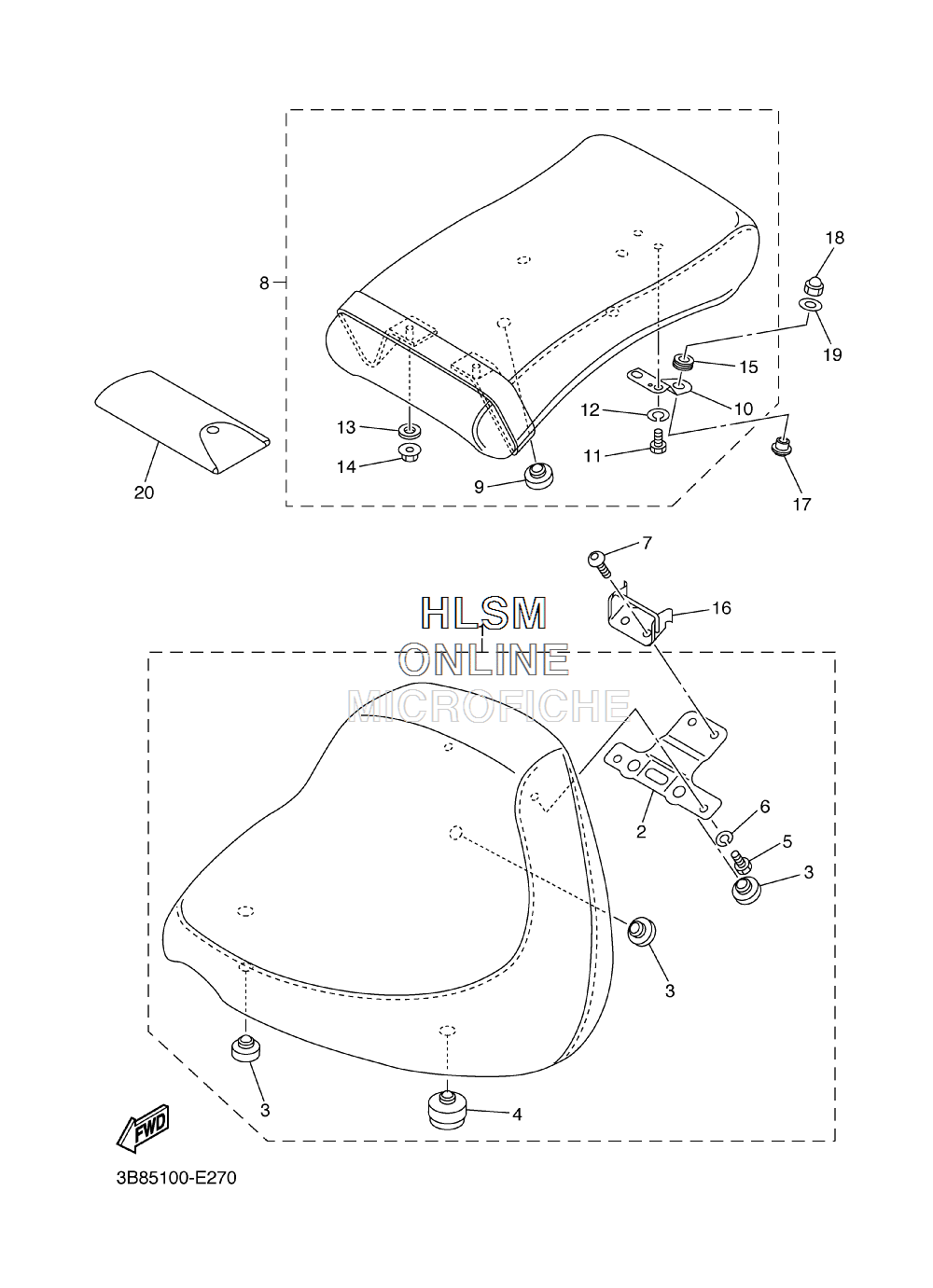

SEAT для Yamaha V STAR 1000 CUSTOM MIDNIGHT (5PBY/5P91) [XVS11WM/CM] - 2007 года выпуска
-
№АртикулНазвание
-
15PB-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25EL-2475H-00-00 ...BRACKET, SEAT LEVER 1...BRACKET, SEAT LEVER 1
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
41T4-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
597007-06012-00 ...BOLT...BOLT
-
692907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
792017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
85PB-24750-10-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
922W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
105PB-2475J-00-00 ...BRACKET, SEAT LEVER 2...BRACKET, SEAT LEVER 2
-
1197007-06012-00 ...BOLT...BOLT
-
1292907-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1390207-06380-00 ...WASHER, FINISH...WASHER, FINISH
-
1495707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
155YS-24742-00-00 ...GROMMET...GROMMET
-
165EL-2475N-00-00 BRACKETBRACKET
-
175PB-2471M-00-00 COLLAR 2COLLAR 2
-
1890176-08002-00 NUT, CROWNNUT, CROWN
-
1990201-08042-00 WASHER, PLATEWASHER, PLATE
-
205EL-28100-10-00 TOOL KITTOOL KIT
