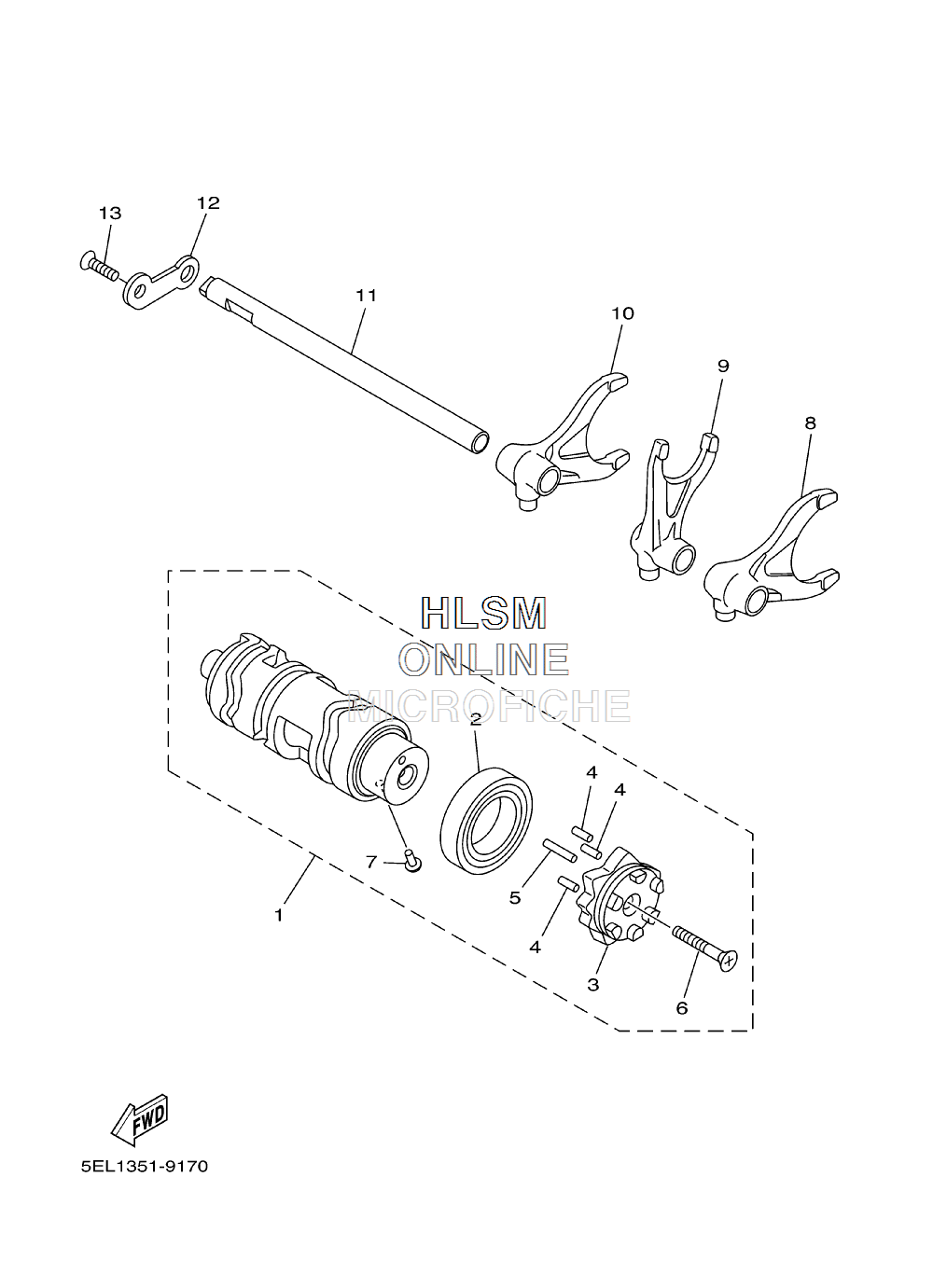

SHIFT CAM W/ FORK для Yamaha V STAR 1000 CUSTOM MIDNIGHT (5PBY/5P91) [XVS11WM/CM] - 2007 года выпуска
-
№АртикулНазвание
-
15EL-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293306-90602-00 ...BEARING...BEARING
-
35EL-18185-00-00 ...SEGMENT...SEGMENT
-
493604-16092-00 ...PIN, DOWEL...PIN, DOWEL
-
593604-20156-00 ...PIN, DOWEL...PIN, DOWEL
-
690151-05027-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
7136-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
85EL-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
95EL-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
105EL-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
115EL-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
124X7-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
1390151-06041-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
