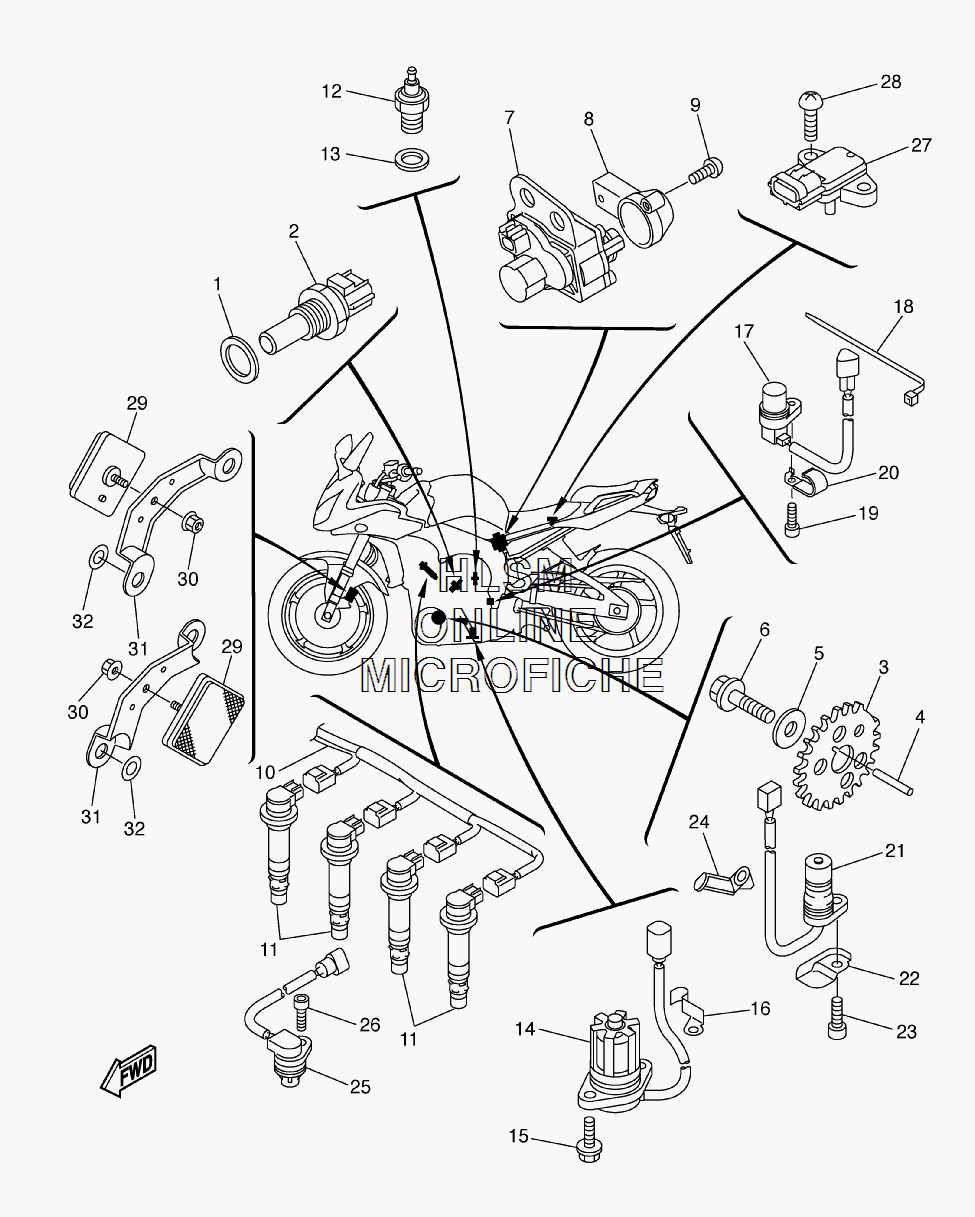

ELECTRICAL для Yamaha FZ1 - 2008 года выпуска
-
№АртикулНазвание
-
190201-12790-00 WASHER, PLATEWASHER, PLATE
-
28CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
32D1-81673-00-00 ROTORROTOR
-
490282-03001-00 KEY, STRAIGHTKEY, STRAIGHT
-
590201-10039-00 WASHER, PLATEWASHER, PLATE
-
690105-10290-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
72D1-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
85VY-85829-00-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
997702-50514-00 SCREW, TAPPINGSCREW, TAPPING
-
102D1-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
115VY-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
123GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1390430-10148-00 GASKETGASKET
-
145VY-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1595022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690465-08053-00 CLAMPCLAMP
-
174XV-83755-03-00 SENSOR, SPEEDSENSOR, SPEED
-
1890464-51001-00 CLAMPCLAMP
-
1990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090462-08057-00 CLAMPCLAMP
-
215VY-81670-01-00 PICK-UP ASSYPICK-UP ASSY
-
225VY-15589-00-00 PLATE, CLUTCH COVERPLATE, CLUTCH COVER
-
2390110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490465-08054-00 CLAMPCLAMP
-
255VY-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2690110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
272C0-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
2897702-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
2920G-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
3095707-05500-00 NUT, FLANGENUT, FLANGE
-
314XV-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3290201-08759-00 WASHER, PLATEWASHER, PLATE
