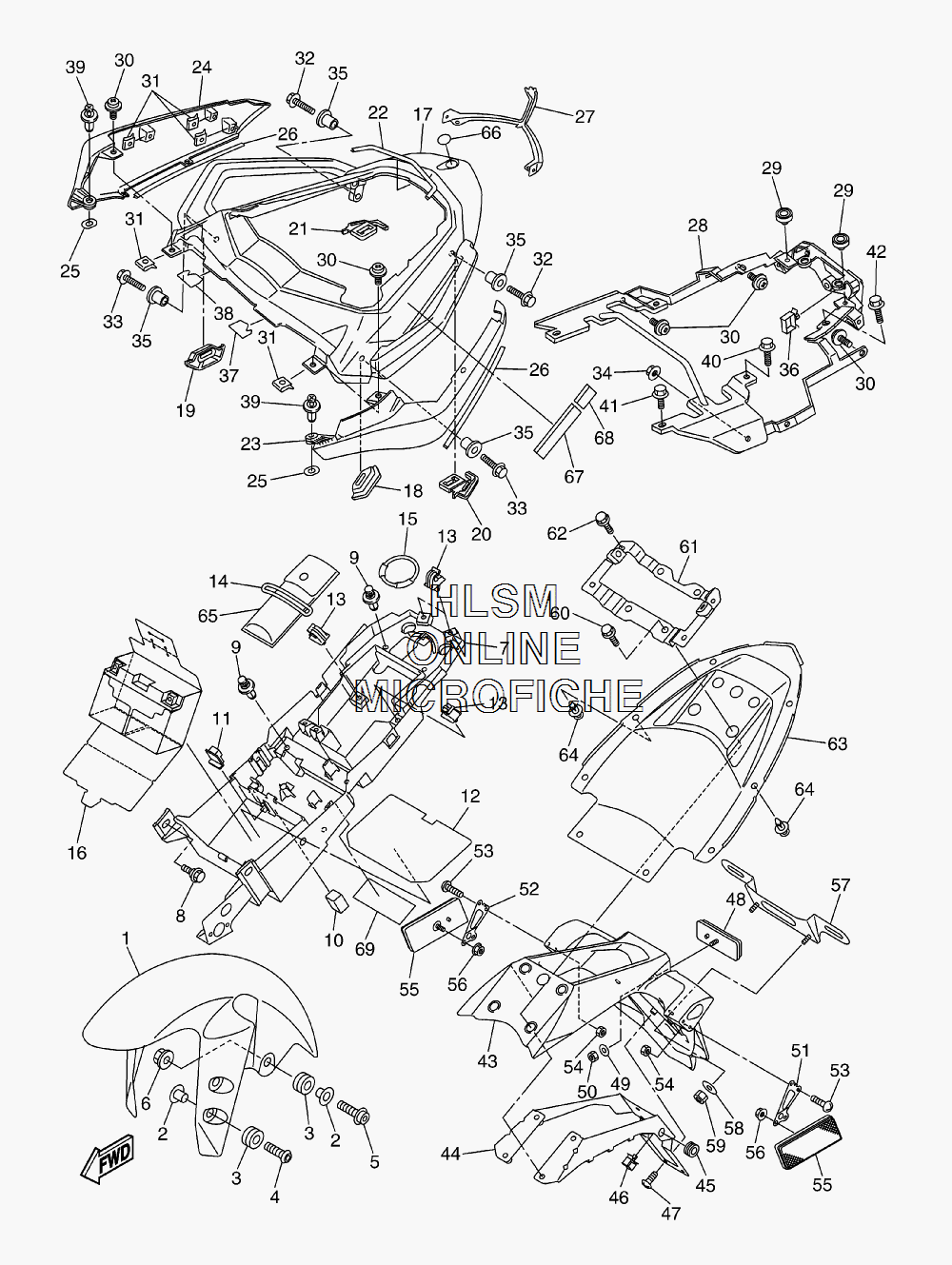

FENDER - FRONT / REAR для Yamaha FZ1 - 2008 года выпуска
-
№АртикулНазвание
-
15PW-21511-00-P3 FENDER, FRONT FOR DRMKFENDER, FRONT FOR DRMK
-
15PW-21511-00-PE FENDER, FRONT FOR DNMGFENDER, FRONT FOR DNMG
-
290387-065J6-00 COLLARCOLLAR
-
390480-12072-00 GROMMETGROMMET
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590109-06031-00 BOLTBOLT
-
695607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
72D1-8212B-01-00 BOX, BATTERY 1BOX, BATTERY 1
-
890109-063F1-00 BOLTBOLT
-
990269-07077-00 RIVETRIVET
-
102D1-216A2-00-00 SEAL, 2SEAL, 2
-
112D1-216A3-00-00 SEAL, 3SEAL, 3
-
122D1-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
1390464-07259-00 CLAMPCLAMP
-
144XV-21376-00-00 BAND, TOOLBAND, TOOL
-
152D1-21646-00-00 BANDBAND
-
162D1-82122-10-00 SEAT, BATTERYSEAT, BATTERY
-
173C3-24773-00-P2 HANDLE, SEAT FOR DRMKHANDLE, SEAT FOR DRMK
-
173C3-24773-00-P5 HANDLE, SEAT FOR DNMGHANDLE, SEAT FOR DNMG
-
183C3-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
193C3-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
203C3-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
213C3-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
223C3-21541-00-00 DAMPER 1DAMPER 1
-
233C3-2471K-00-P2 COVER, TAIL 1 FOR DRMKCOVER, TAIL 1 FOR DRMK
-
233C3-2471K-00-P5 COVER, TAIL 1 FOR DNMGCOVER, TAIL 1 FOR DNMG
-
243C3-2472K-00-P2 COVER, TAIL 2 FOR DRMKCOVER, TAIL 2 FOR DRMK
-
243C3-2472K-00-P5 COVER, TAIL 2 FOR DNMGCOVER, TAIL 2 FOR DNMG
-
255PW-2174X-00-00 DAMPERDAMPER
-
263C3-2193A-00-00 PROTECTORPROTECTOR
-
273C3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
283C3-21617-00-00 BRACKET, FENDERBRACKET, FENDER
-
2922W-24741-00-00 PAD, SEATPAD, SEAT
-
3090159-05056-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3190183-051A0-00 NUT, SPRINGNUT, SPRING
-
3295822-08025-00 BOLT, FLANGE (4LN)BOLT, FLANGE (4LN)
-
3395822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
3495702-08500-00 NUT, WITH WASHERNUT, WITH WASHER
-
3590387-09012-00 COLLARCOLLAR
-
3690464-16021-00 CLAMPCLAMP
-
373C3-22825-00-00 PROTECTOR 1PROTECTOR 1
-
383C3-22826-00-00 PROTECTOR 2PROTECTOR 2
-
3990269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
4095827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
4195822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4290105-08447-00 BOLT, FLANGEBOLT, FLANGE
-
432D1-21629-10-00 GUARD, MUDGUARD, MUD
-
442D1-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
4590480-13004-00 GROMMETGROMMET
-
4690464-16021-00 CLAMPCLAMP
-
4797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
483Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4990201-05043-00 WASHER, PLATEWASHER, PLATE
-
5095602-05100-00 NUT, UNUT, U
-
515VY-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
525VY-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
5390150-04041-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
5495602-04100-00 NUT, U (6E8)NUT, U (6E8)
-
553Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5695702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
575MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5890201-06088-00 WASHER, PLATEWASHER, PLATE
-
5995602-06100-00 NUT, UNUT, U
-
6095817-08025-00 BOLT, FLANGE (4LN)BOLT, FLANGE (4LN)
-
613C3-21261-00-00 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
6295827-06020-00 BOLT, FLANGEBOLT, FLANGE
-
633C3-21611-00-00 FENDER, REARFENDER, REAR
-
6490269-07077-00 RIVETRIVET
-
652D1-28100-00-00 TOOL KITTOOL KIT
-
664KN-2836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
673JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
683TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
693C3-2179W-20-00 PLATE, EPA (EXCEPT CALIF.)PLATE, EPA (EXCEPT CALIF.)
-
693C3-2176P-20-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
