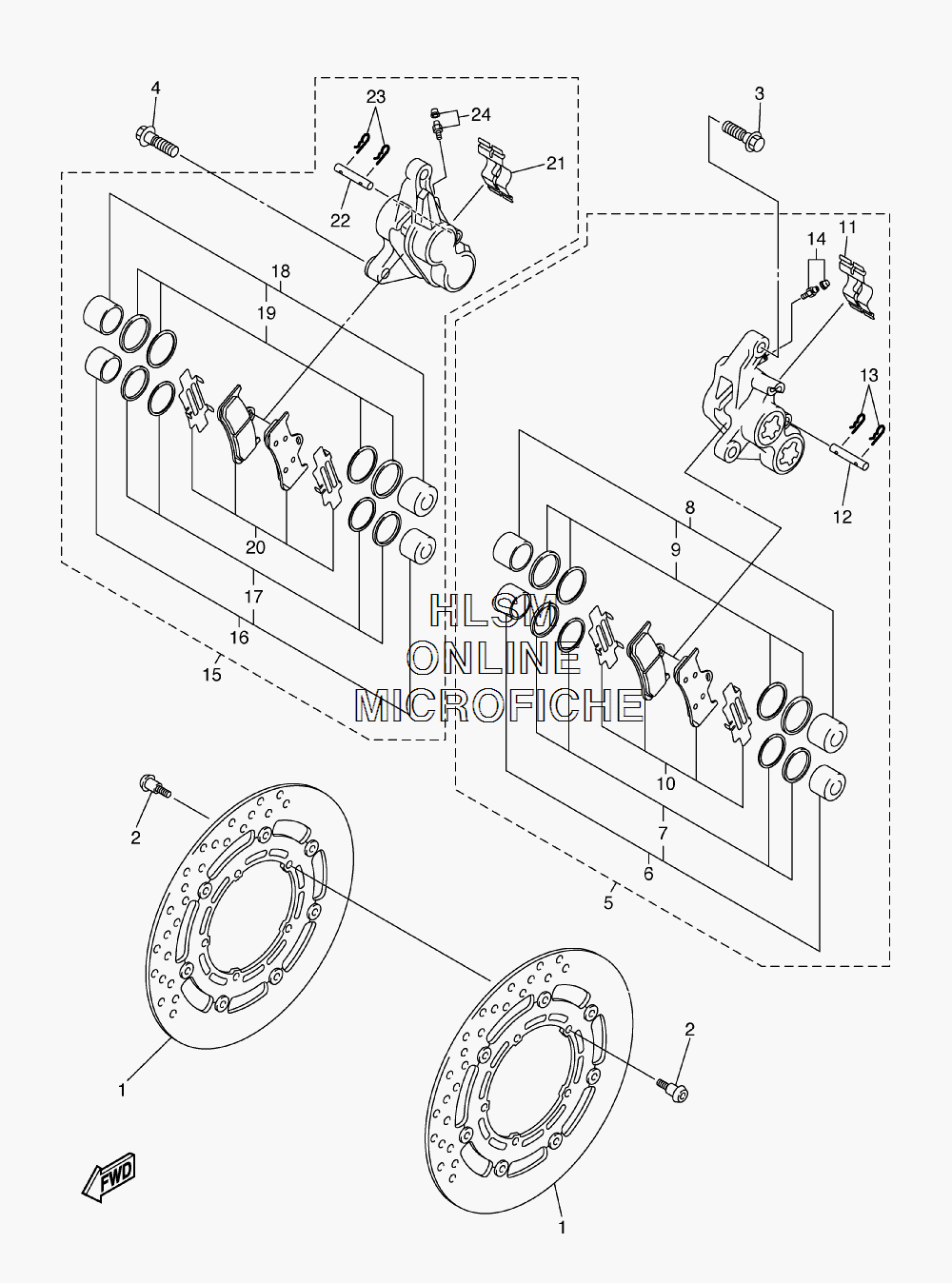

BRAKE - FRONT CALIPER для Yamaha FZ6 - 2008 года выпуска
-
№АртикулНазвание
-
15VX-2581T-01-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
390105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490105-10638-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
54S8-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
64SV-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73MA-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
84SV-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
93GM-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
105VN-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
114SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
124SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
133GM-25925-00-00 ...CLIP...CLIP
-
141J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
154S8-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
164SV-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
173MA-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
184SV-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
193GM-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
205VN-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
214SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
224SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
233GM-25925-00-00 ...CLIP...CLIP
-
241J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
