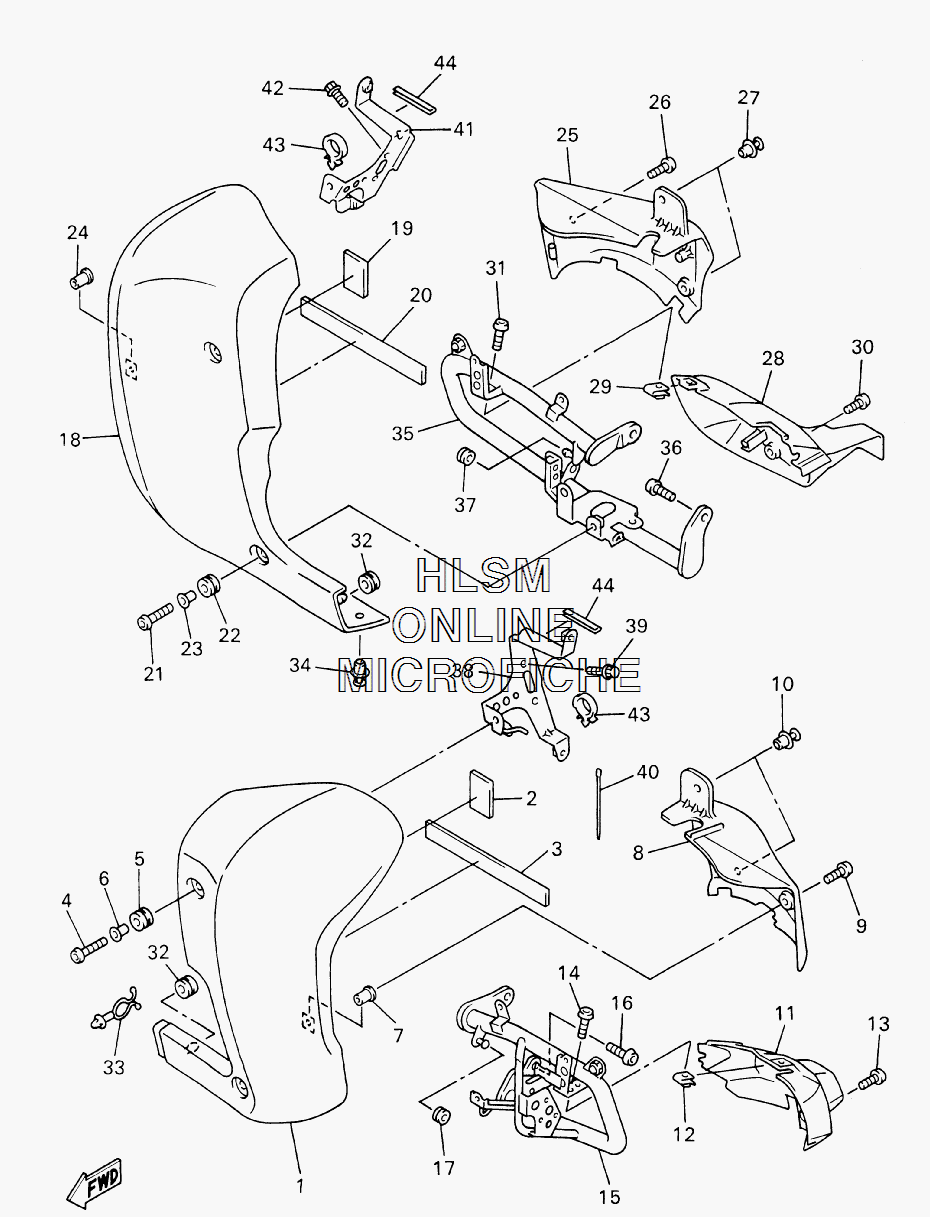

COWLING 2 для Yamaha ROYAL STAR VENTURE - 2008 года выпуска
-
№АртикулНазвание
-
14XY-2835J-01-P9 BODY, FRONT LOWER 1 (VDRM2)BODY, FRONT LOWER 1 (VDRM2)
-
222F-2139X-00-00 DAMPERDAMPER
-
34XY-2139X-00-00 DAMPERDAMPER
-
490110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590480-10289-00 GROMMETGROMMET
-
690387-066Y6-00 COLLARCOLLAR
-
790179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
84XY-2835N-00-00 BODY, REAR 1BODY, REAR 1
-
990149-05299-00 SCREW (3YF)SCREW (3YF)
-
1090269-06062-00 RIVETRIVET
-
114XY-2842M-00-00 COVER 1COVER 1
-
1290183-05024-00 NUT, SPRINGNUT, SPRING
-
1390154-05013-00 SCREW, BINDINGSCREW, BINDING
-
1498907-05010-00 SCREW, BINDSCREW, BIND
-
154XY-28418-01-00 GUARD, ENGINE 1GUARD, ENGINE 1
-
1692017-10030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1790480-11224-00 GROMMETGROMMET
-
184XY-2835K-01-P9 BODY, FRONT UNDER 2 (VDRM2)BODY, FRONT UNDER 2 (VDRM2)
-
1922F-2139X-00-00 DAMPERDAMPER
-
204XY-2139X-00-00 DAMPERDAMPER
-
2190110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290480-10289-00 GROMMETGROMMET
-
2390387-066Y6-00 COLLARCOLLAR
-
2490179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
254XY-2835R-00-00 BODY, REAR 2BODY, REAR 2
-
2690149-05299-00 SCREW (3YF)SCREW (3YF)
-
2790269-06062-00 RIVETRIVET
-
284XY-2842N-00-00 COVER 2COVER 2
-
2990183-05024-00 NUT, SPRINGNUT, SPRING
-
3090154-05013-00 SCREW, BINDINGSCREW, BINDING
-
3198907-05010-00 SCREW, BINDSCREW, BIND
-
3290480-01558-00 GROMMETGROMMET
-
3390464-18269-00 CLAMPCLAMP
-
3490269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
354XY-28419-00-00 GUARD, ENGINE 2GUARD, ENGINE 2
-
3692017-10030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3790480-11224-00 GROMMETGROMMET
-
384XY-2831T-01-00 STAY, SUPPORT 1STAY, SUPPORT 1
-
3995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4090465-10098-00 CLAMPCLAMP
-
414XY-2832T-01-00 STAY, SUPPORT 2STAY, SUPPORT 2
-
4295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4390464-07209-00 CLAMPCLAMP
-
444XY-28347-00-00 MOLE 3MOLE 3
