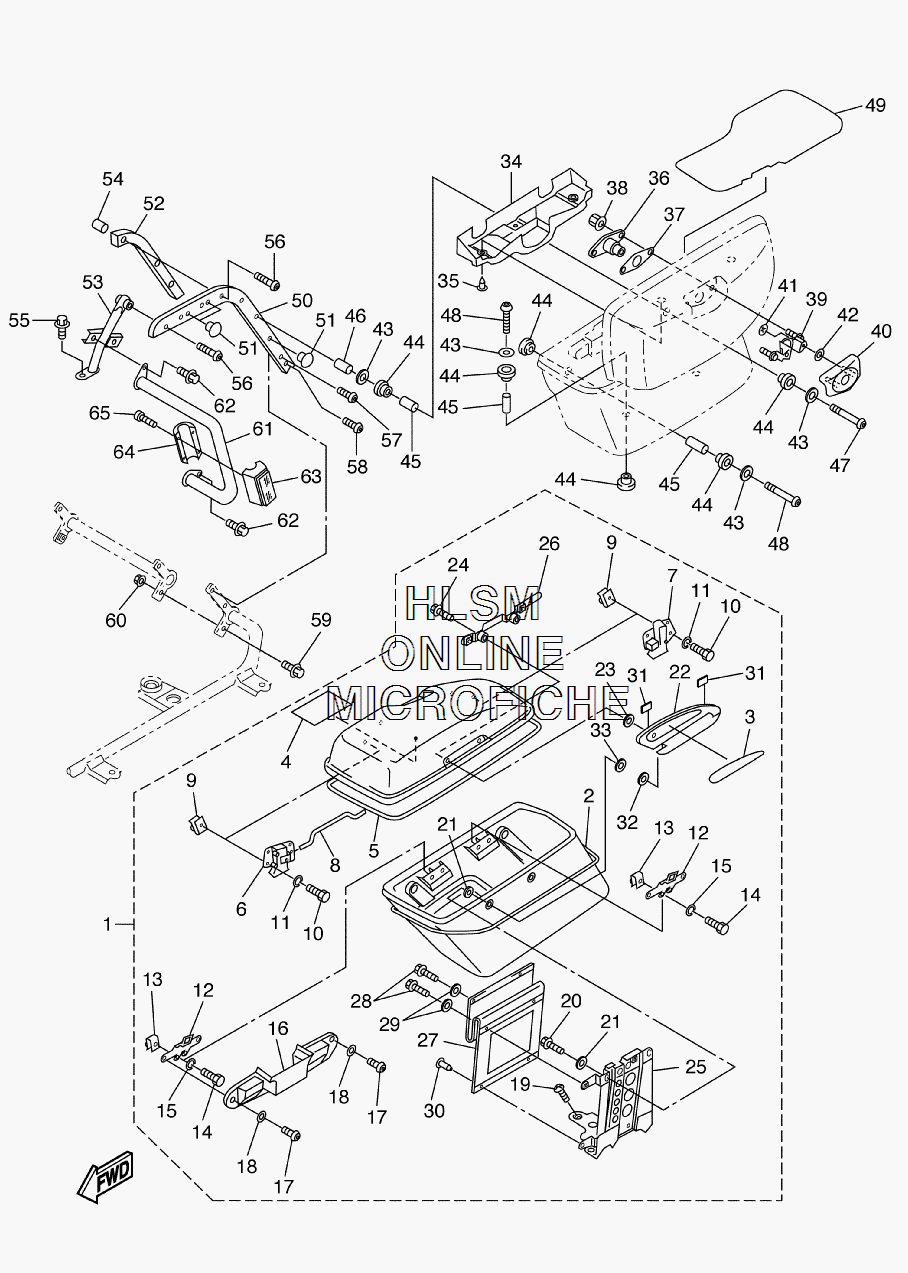

SADDLEBAG 1 для Yamaha ROYAL STAR VENTURE - 2008 года выпуска
-
№АртикулНазвание
-
14XY-Y2843-3B-4Y SADDLEBAG COMP, 1 (VDRM2/SMX)SADDLEBAG COMP, 1 (VDRM2/SMX)
-
22C9-2840G-10-00 ...SADDLEBAG GRAPHIC SET...SADDLEBAG GRAPHIC SET
-
34XY-2847A-50-00 ...ORNAMENT 1...ORNAMENT 1
-
44XY-28446-02-00 ...LABEL, CAUTION...LABEL, CAUTION
-
54XY-28428-00-00 ...SEAL 1...SEAL 1
-
64XY-28494-00-00 ...HOOK 3...HOOK 3
-
74XY-28495-00-00 ...HOOK 4...HOOK 4
-
84XY-2841A-00-00 ...LEVER...LEVER
-
990183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1097007-05012-00 ...BOLT...BOLT
-
1192907-05600-00 ...WASHER, PLATE (1RW)...WASHER, PLATE (1RW)
-
124XY-28498-00-00 ...HOOK 2...HOOK 2
-
1390183-05024-00 ...NUT, SPRING...NUT, SPRING
-
1497007-05016-00 ...BOLT...BOLT
-
1592907-05600-00 ...WASHER, PLATE (1RW)...WASHER, PLATE (1RW)
-
164XY-2843J-00-00 ...COVER 3...COVER 3
-
1792017-05008-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1892907-05600-00 ...WASHER, PLATE (1RW)...WASHER, PLATE (1RW)
-
1997707-50020-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2092017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2190201-054K4-00 ...WASHER, PLATE...WASHER, PLATE
-
224XY-28444-10-00 ...HINGE 1...HINGE 1
-
2390202-08125-00 ...WASHER, PLATE...WASHER, PLATE
-
2492017-05020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
254XY-28427-00-00 ...REINFORCEMENT 1...REINFORCEMENT 1
-
264XY-2847H-00-00 ...PLATE 5...PLATE 5
-
274XY-2845B-00-00 ...STOPPER, OPEN...STOPPER, OPEN
-
2892017-05014-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2992907-05600-00 ...WASHER, PLATE (1RW)...WASHER, PLATE (1RW)
-
3090269-05039-00 ...RIVET, SPEC'L SHAPE...RIVET, SPEC'L SHAPE
-
314XY-28499-00-00 ...PLATE, RUBBER 4...PLATE, RUBBER 4
-
3290201-08326-00 ...WASHER, PLATE...WASHER, PLATE
-
334XY-28429-00-00 ...SEAL 2...SEAL 2
-
344XY-2849K-00-00 COVER LOCK ASSY 2COVER LOCK ASSY 2
-
3590269-06081-00 RIVETRIVET
-
364XY-W2843-00-00 LOCK ASSY 3LOCK ASSY 3
-
374XY-2845J-00-00 PLATE, RUBBER 5PLATE, RUBBER 5
-
3895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
394XY-2849H-00-00 PLATE 6PLATE 6
-
404XY-2842A-00-00 COVER 5COVER 5
-
4190183-04005-00 NUT, SPRINGNUT, SPRING
-
424KJ-28371-00-00 DAMPERDAMPER
-
4390201-065G8-00 WASHER, PLATEWASHER, PLATE
-
4490480-20447-00 GROMMETGROMMET
-
4590387-084R5-00 COLLARCOLLAR
-
4690387-0811N-00 COLLARCOLLAR
-
4792017-06055-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4892017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
494XY-2848K-00-00 SEAT 2SEAT 2
-
504XY-28473-00-00 MOUNT, SADDLEBAG 1MOUNT, SADDLEBAG 1
-
5190338-07259-00 PLUGPLUG
-
521D6-28415-00-00 DAMPER 1DAMPER 1
-
534YE-28413-02-00 STAY, FRONT GUARD 1STAY, FRONT GUARD 1
-
5490387-0811N-00 COLLARCOLLAR
-
5595807-08014-00 BOLT, FLANGEBOLT, FLANGE
-
5690111-08021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5792014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5892014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5995827-08016-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
6095307-08800-00 NUT, CAPNUT, CAP
-
614XY-2841K-00-00 GUARD, SADDLEBAG 1GUARD, SADDLEBAG 1
-
6295814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
634YE-85131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
644YE-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
6597707-30514-00 SCREW, TRUSSSCREW, TRUSS
