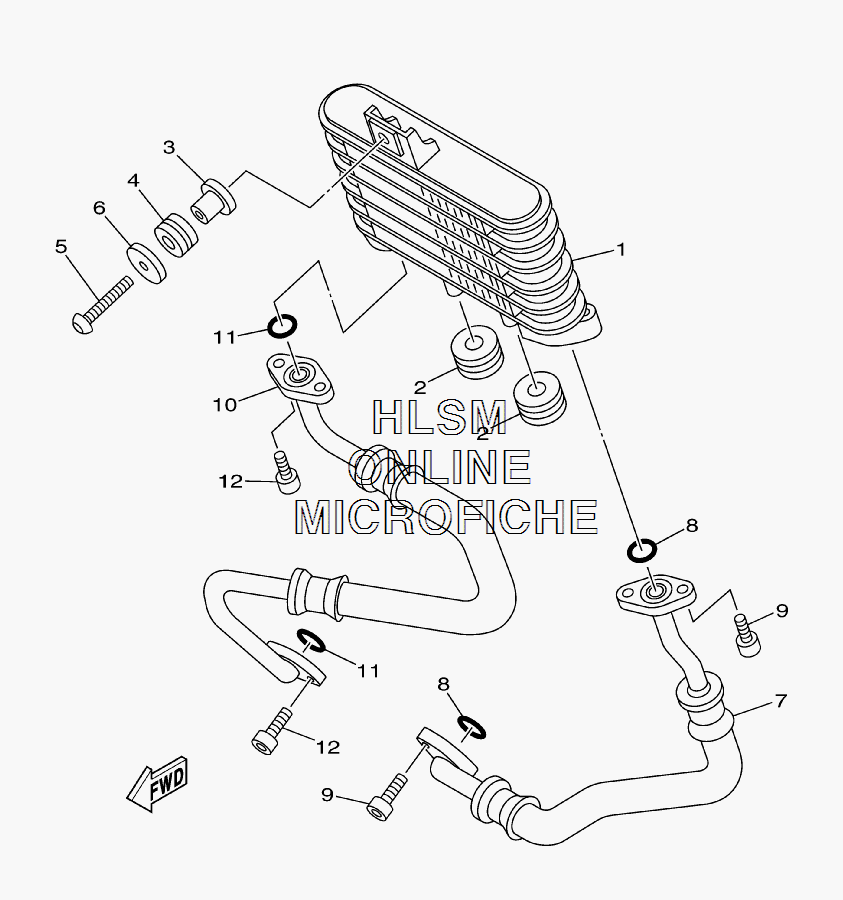

OIL COOLER для Yamaha STRATOLINER MIDNIGHT - 2008 года выпуска
-
№АртикулНазвание
-
11D7-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
290480-15235-00 GROMMETGROMMET
-
390387-063L7-00 COLLARCOLLAR
-
490480-14532-00 GROMMET (3SX)GROMMET (3SX)
-
592017-06030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690201-064K6-00 WASHER, PLATEWASHER, PLATE
-
71D7-1316F-00-00 HOSE, OIL 1HOSE, OIL 1
-
893210-13361-00 O-RINGO-RING
-
991314-06016-00 BOLT, SOCKETBOLT, SOCKET
-
101D7-1316G-00-00 HOSE, OIL 2HOSE, OIL 2
-
1193210-13361-00 O-RINGO-RING
-
1291314-06016-00 BOLT, SOCKETBOLT, SOCKET
